Siemens SINAMICS G120 - CU240 B; CU240 E Control Unit; Interfaces of the CU240 B-2 and CU240 E-2

Installing
3.2 Installing Control Unit
Converter with Control Units CU230P-2; CU240B-2; CU240E-2
Getting Started, 11/2013, A5E32885834B AA
29
3.2.2
CU240B / CU240E Control Unit
3.2.2.1
Interfaces of the CU240B-2 and CU240E-2

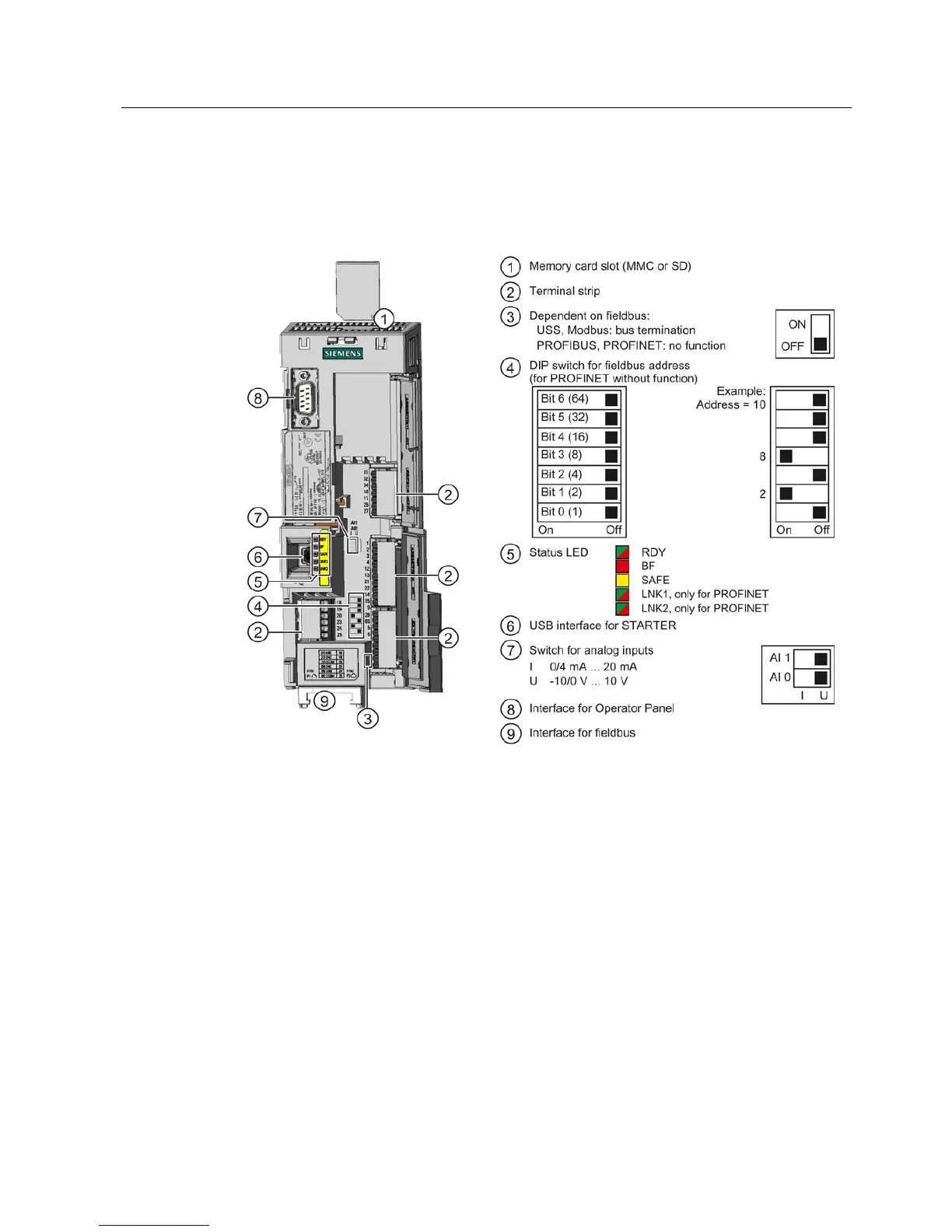

Figure 3-8 Design of the Control Unit using the example of the CU240E-2
