Installing
3.2 Installing Control Unit
Converter with Control Units CU230P-2; CU240B-2; CU240E-2
30 Getting Started, 11/2013, A5E32885834B AA
The converter's fieldbus interface is on the bottom of the Control Unit.

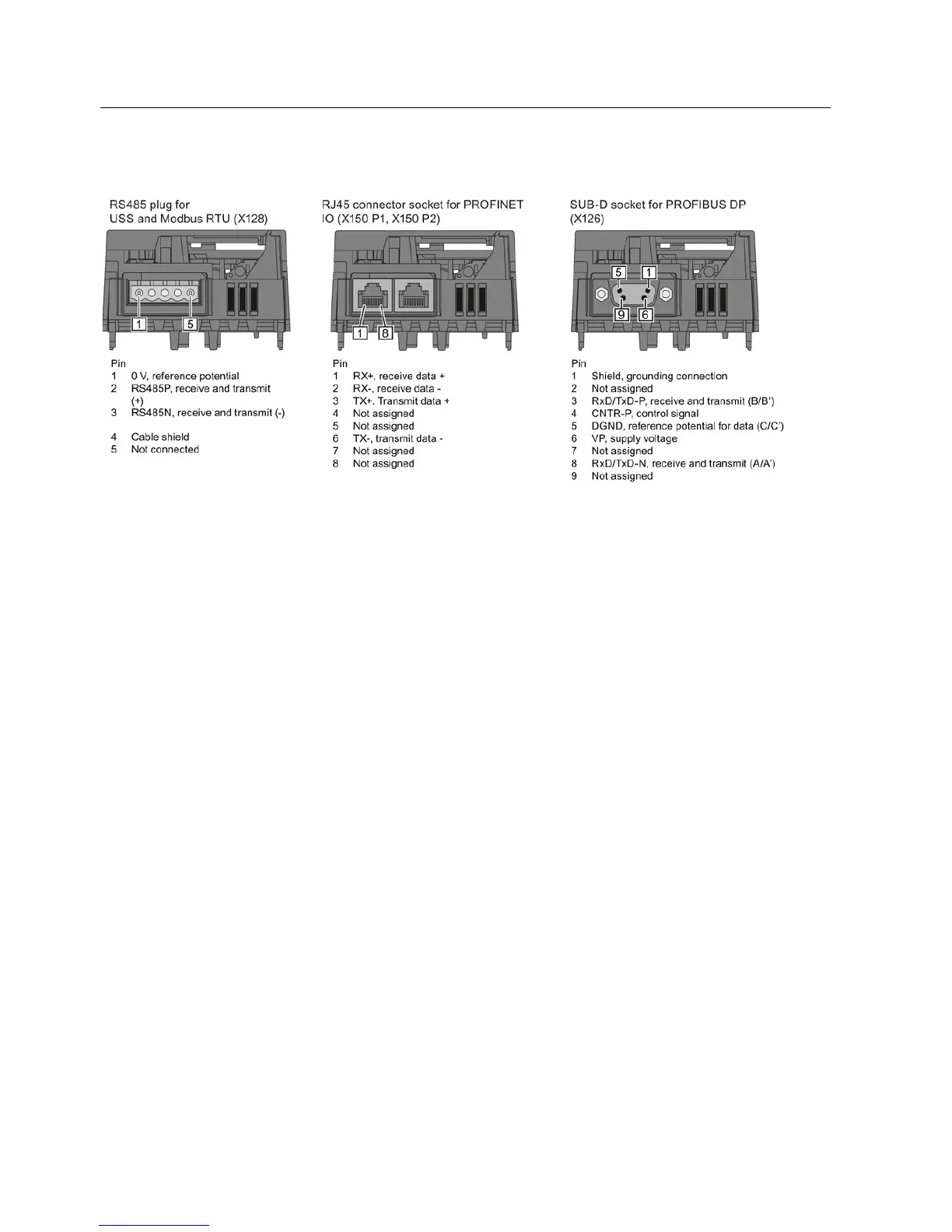

Figure 3-9 Fieldbus interface allocation
