Siemens SINAMICS G120C DP

3 Setting up and commissioning the application
3.5 Loading the software
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
18
Copyright  Siemens AG 2018 All rights reserved
No.
Action
Remarks

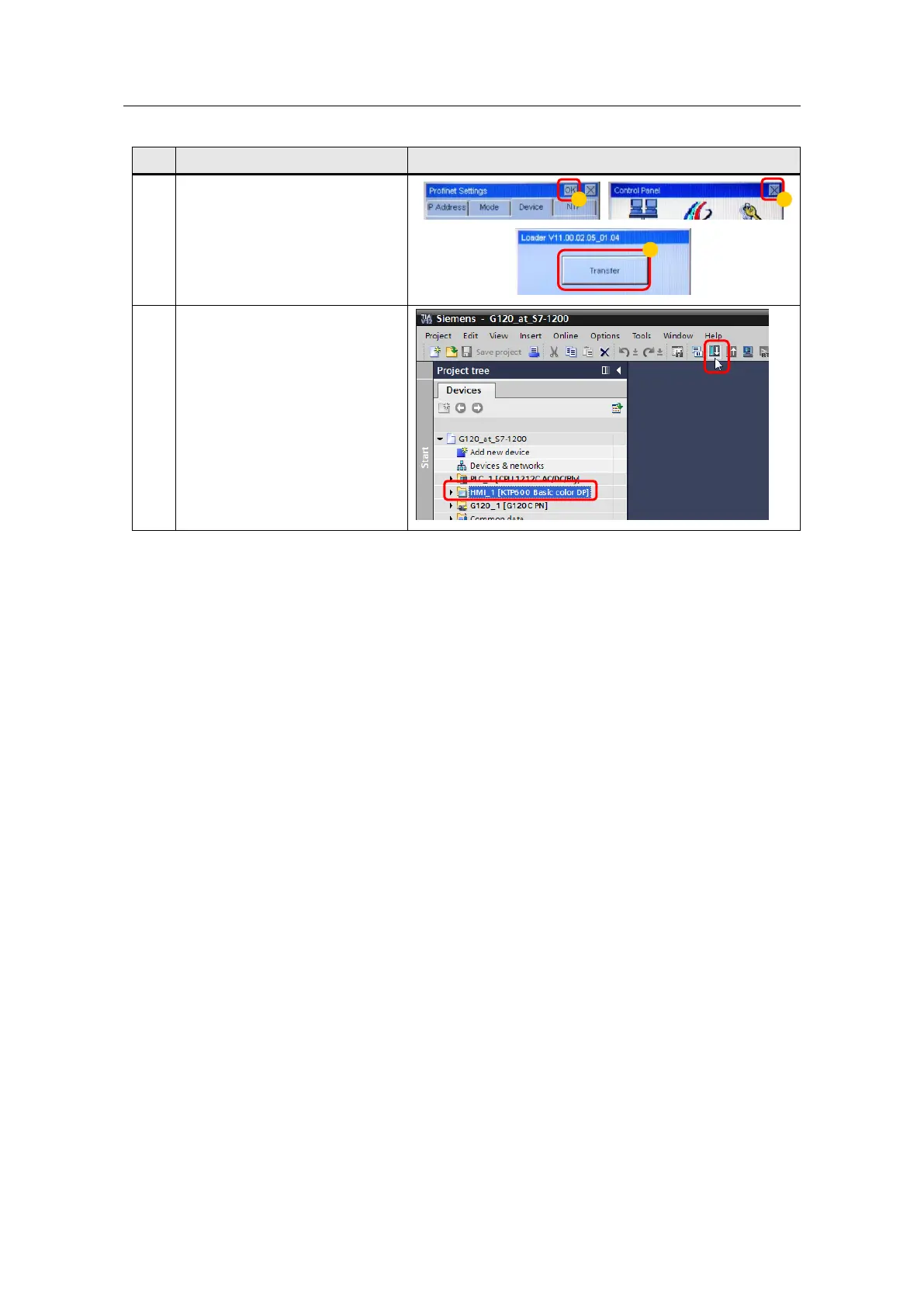

23.
1. Exit the PROFINET settings
with OK.
2. Exit the Control Panel.
3. Prepare the loading process
by clicking the “Transfer”
button.
24.
Unless already performed,
connect the HMI KTP600 with an
Ethernet patch cable to the PG/PC
directly or via a switch and start
the data transfer.
The HMI control panel will then
start automatically.
When working without switch,
connect the control panel to the
Ethernet port of the SIMATIC
CPU.
1
2
3
