12.Loosen the bolted connection ⑩ (M8 x 30). Remove the screw ⑪ (M8 x 16) of the capacitor
bank.

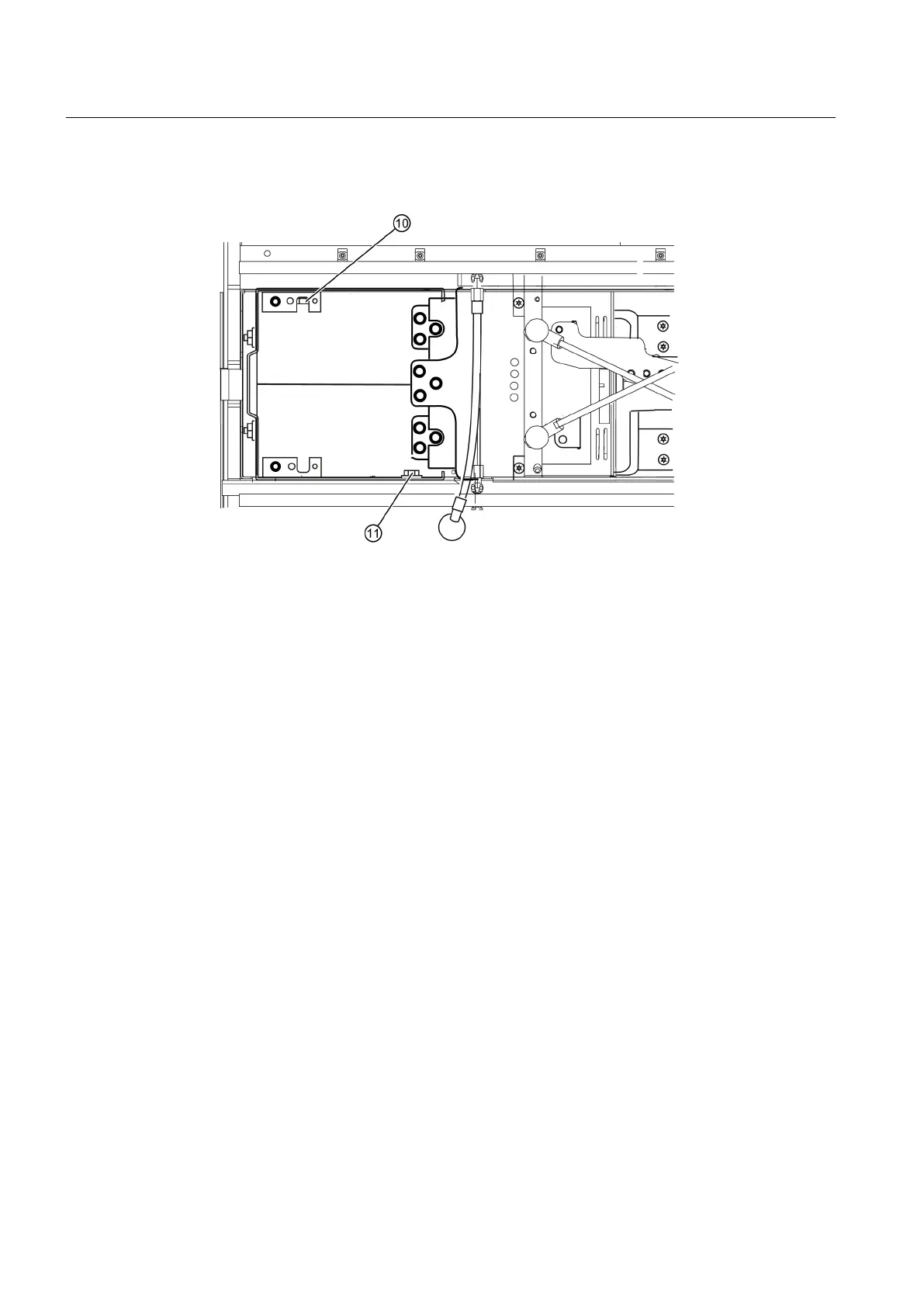

Figure 9-10 Removing a power cell, step 12
13.Withdraw the capacitor bank towards the front.
