S5-95U, SINEC L2 Programmer Functions Over the SINEC L2 Network
You can also edit more complex paths.
For example, you can edit a path from a programmer on the SINEC H1 LAN to an S5-95U on the
SINEC L2 LAN. Proceed exactly as described on the previous pages. The edited path will then
appear as follows on your monitor:

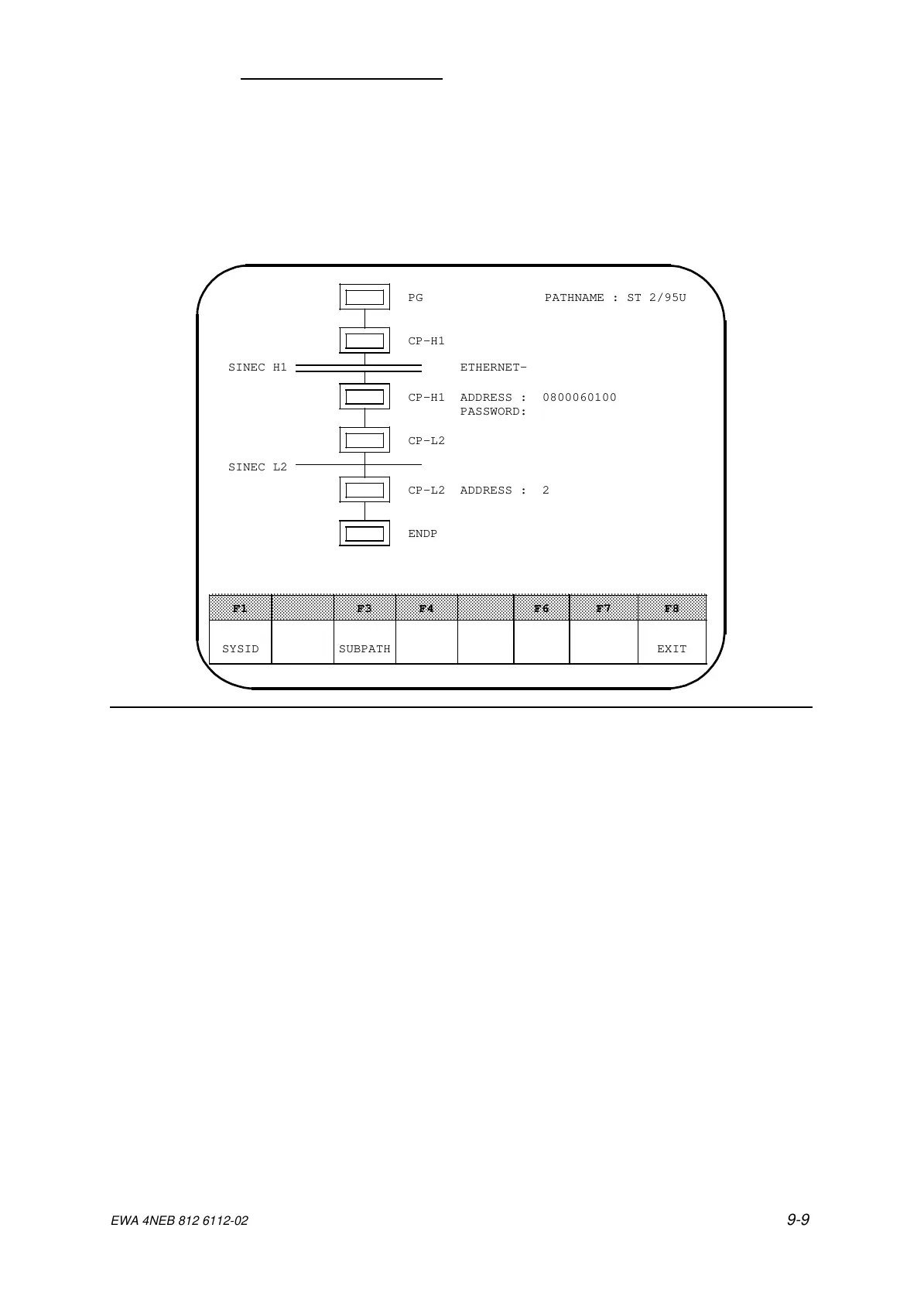

Figure 9-7. Screen for Activating a Path (2)
