Installing the Control System
2-16 SINUMERIK 802S base line
Start-Up
2.3.6 Connecting the digital inputs (X100 ... X105)
Pin assignment for connector
Interface for the digital inputs
Connector designation: X100, X101, X102, X103, X104, X105
IN
Connector type: 10-pin plug connector

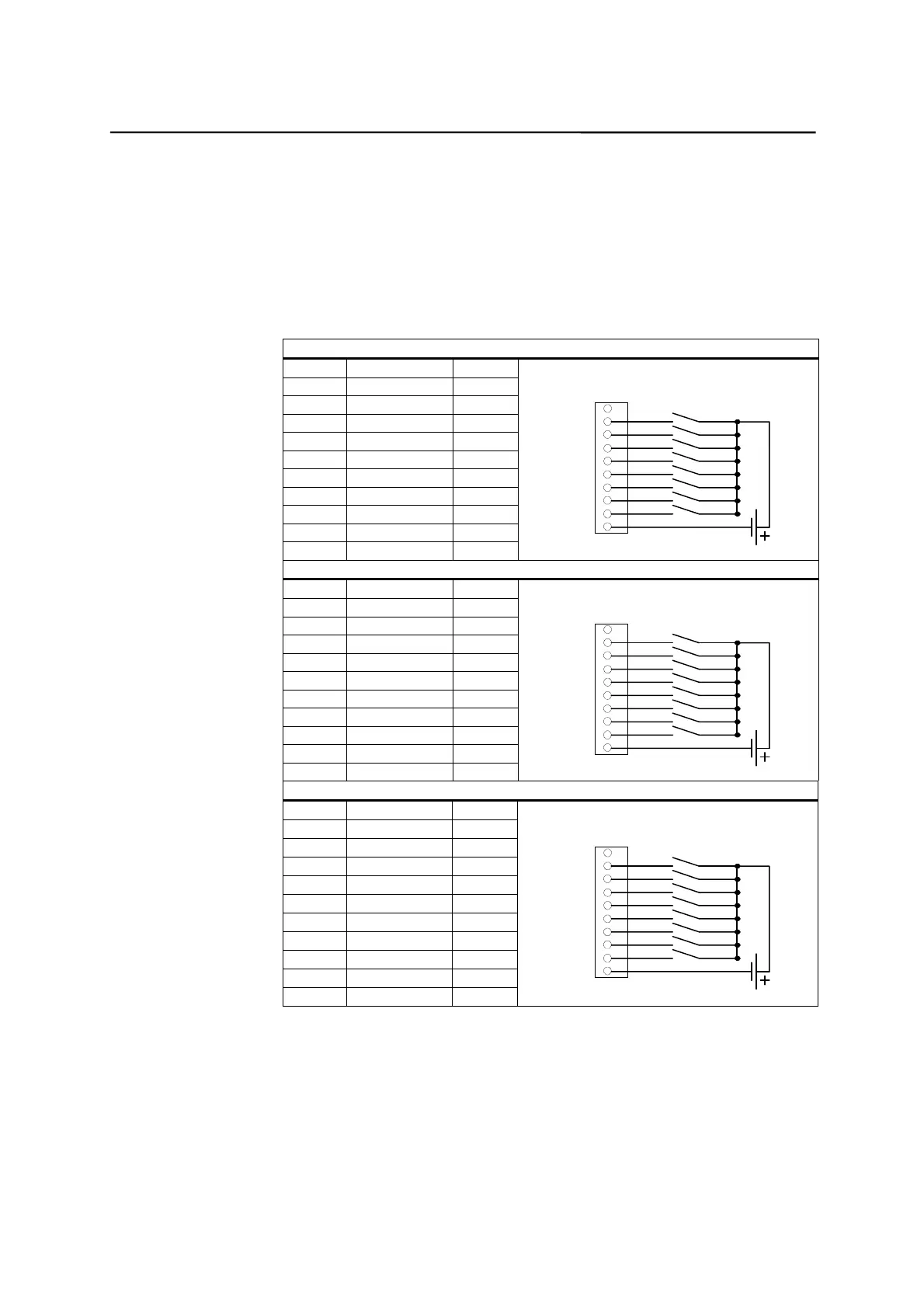

Table 2–14 Connector pin assignment
X100
Pin Name Type
1n.c.
2DI0DI
3DI1DI
4DI2DI
5DI3DI
6DI4DI
7DI5DI
8DI6DI
9DI7DI
10 M VI
X100
0
1
2
3
4
5
6
7
M
X101
Pin Name Type
1n.c.
2DI8DI
3DI9DI
4DI10DI
5DI11DI
6DI12DI
7DI13DI
8DI14DI
9DI15DI
10 M VI
X101
8
9
10
11
12
13
14
15
M
X102
Pin Name Type
1n.c.
2DI16DI
3DI17DI
4DI18DI
5DI19DI
6DI20DI
7DI21DI
8DI22DI
9DI23DI
10 M VI
X102
16
17
18
19
20
21
22
23
M
