Programming and Operating — Turning Page 16 808D ADVANCED
Tool Setup
s

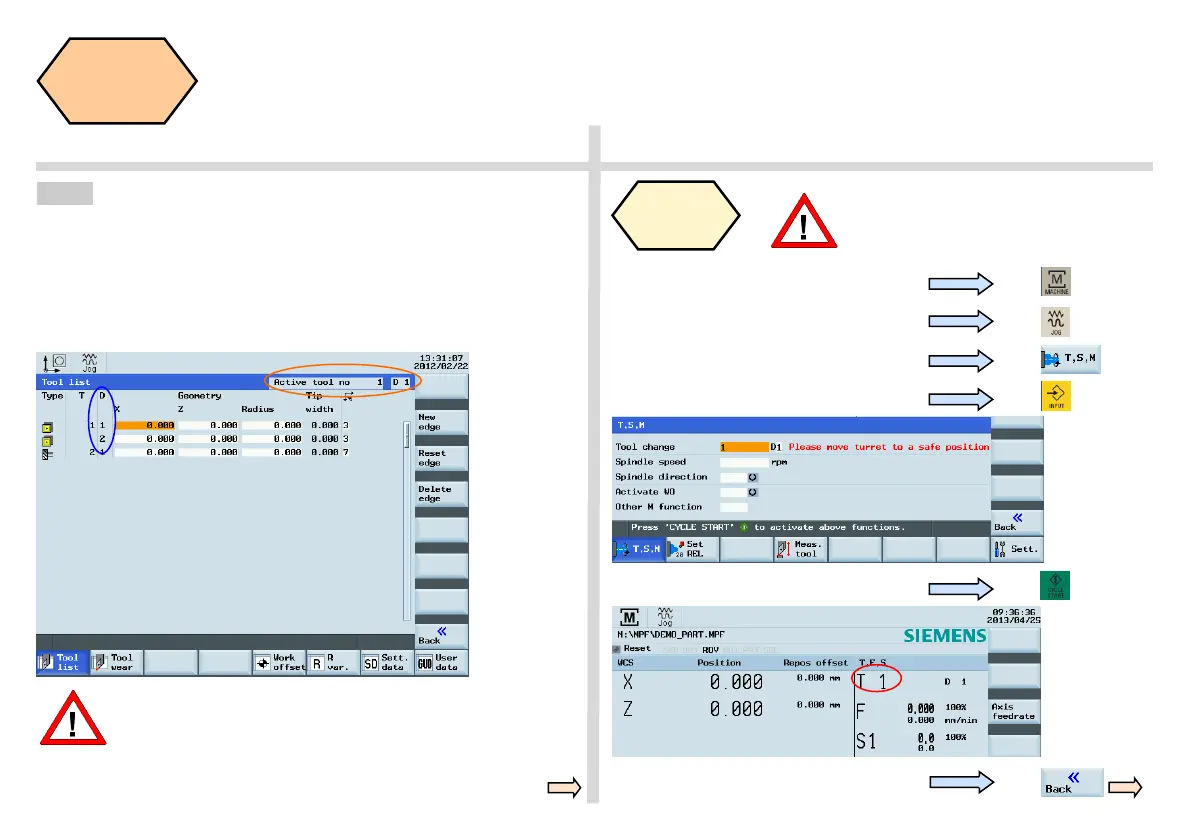

SEQUENCE
Press the “Machine” key on the PPU.
Press the “T.S.M” SK on the PPU.
Enter tool number “1” in “T”.
Press “CYCLE START” on the MCP.
Load tool
into active
position
Press the “Back” SK on the PPU.
A tool must have been created in the
system before it can be loaded into
the active position.
Press the “JOG” key on the MCP.
Step 2
The red circle shows the actual active tool and tool edge,the purple circle
shows how many tool edges have been created and the related data for
each tool edge.
A new tool edge can be added in this way and different lengths and radii
can be entered as required.
A maximum of nine tool edges can be created for each
tool!
Different tool lengths and radii can be saved in different
tool edges as required.
Please select the right tool edge for machining according
to requirement!
