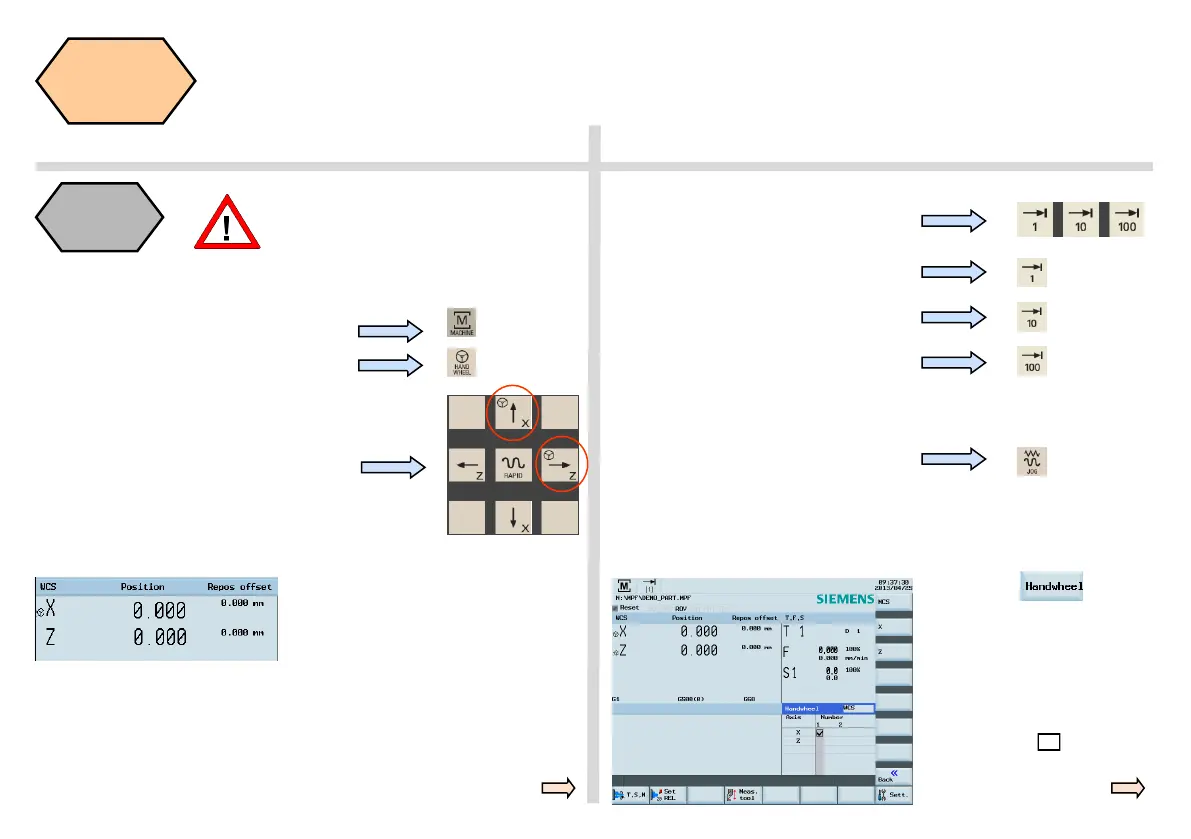

808D ADVANCED Page 17 Programming and Operating — Turning
Tool Setup
s
SEQUENCE
Move
machine
with hand-
wheel
Make sure there is no obstruction
when moving the tool to avoid a crash.
A handwheel can control the axis motion instead of the “JOG” button.
Press the “Machine” key on the PPU.
Press the “Handwheel” key on the MCP.
Select the axis you want to move with the
appropriate keys on the MCP
Select the required override increment
according to the buttons on the right（this
selection fits all axes)
The selected axis can now be moved with the handwheel.
Press “JOG” on the MCP to end
the “Handwheel” function.
The handwheel increment is “0.001 mm”
The handwheel increment is “0.010 mm”
The handwheel increment is “0.100 mm”
Notes：if set MD14512[16]=80 , the system will deactivate the function of
MCP for selecting the axis of handwheel, the user will have to activate
“Handwheel” function with PPU softkey
Under “WCS” or “MCS”, a handwheel
will be shown beside the axis
symbols, representing that the axis
can be moved using handwheel.
Select the
required axis
on the right of
the PPU; the
selected axis
is shown with
a √
To Next Page
