Siemens SINUMERIK 808D ADVANCED Training Manual

Programming and Operating — Turning Page 18 808D ADVANCED

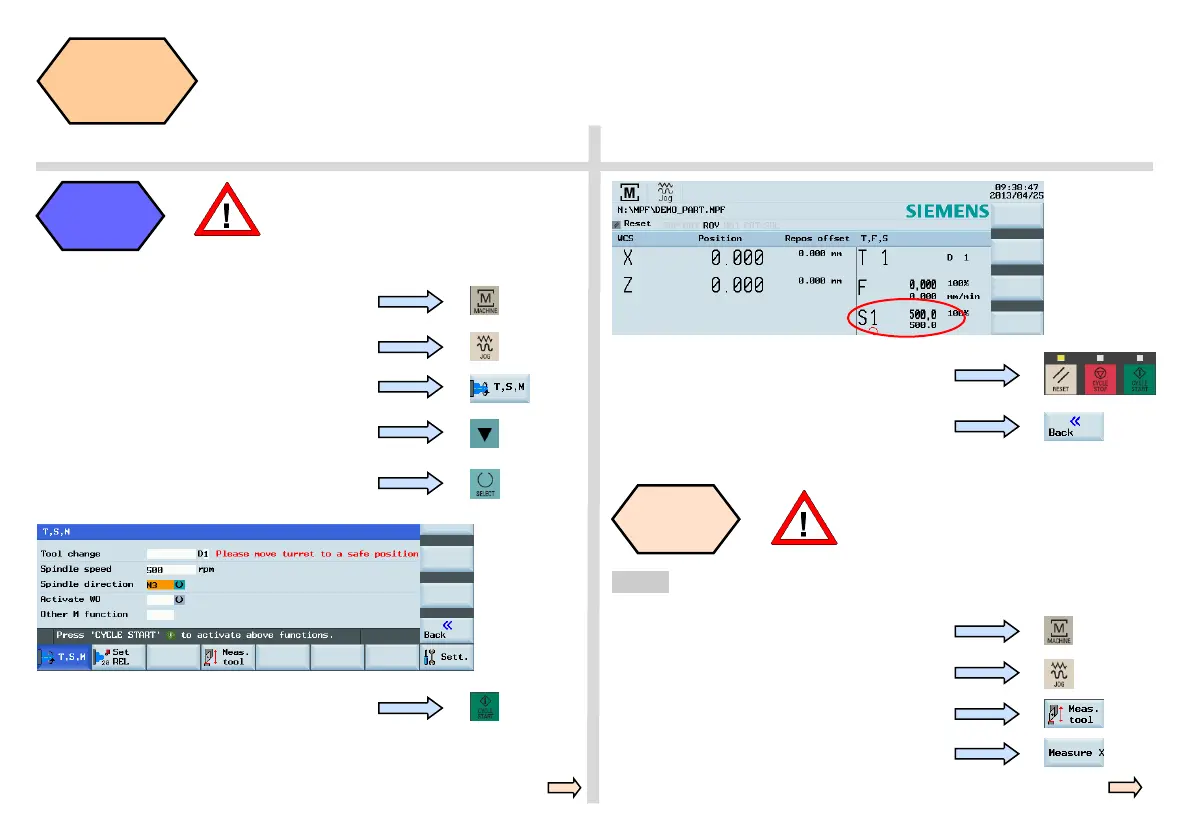

Tool Setup
s
SEQUENCE
A tool must have been loaded and the
turret rotated to position.
Start
spindle
Start the spindle before adjusting tools as follows:
Press the “Machine” key on the PPU.
Press the “T.S.M” SK on the PPU.
Enter “500” at “Spindle speed”.
Select “M3” using the “Select” key on the
PPU.
Press the “CYCLE START” key on the
MCP.
Press the “Back” SK on the PPU.
Press “Reset” on the MCP to stop the spindle
rotation.
Measure
tool
Step 1
A tool must have been created and the
turret rotated before it can be
measured!
Press the “Measure X” SK on the PPU.
Measure length：X
Press the “Meas. tool” SK on the PPU.
Press the “Machine” key on the PPU.
Press the “JOG” key on the MCP.
Press the “JOG” key on the MCP.
