Service Manual
26 01/2017
.

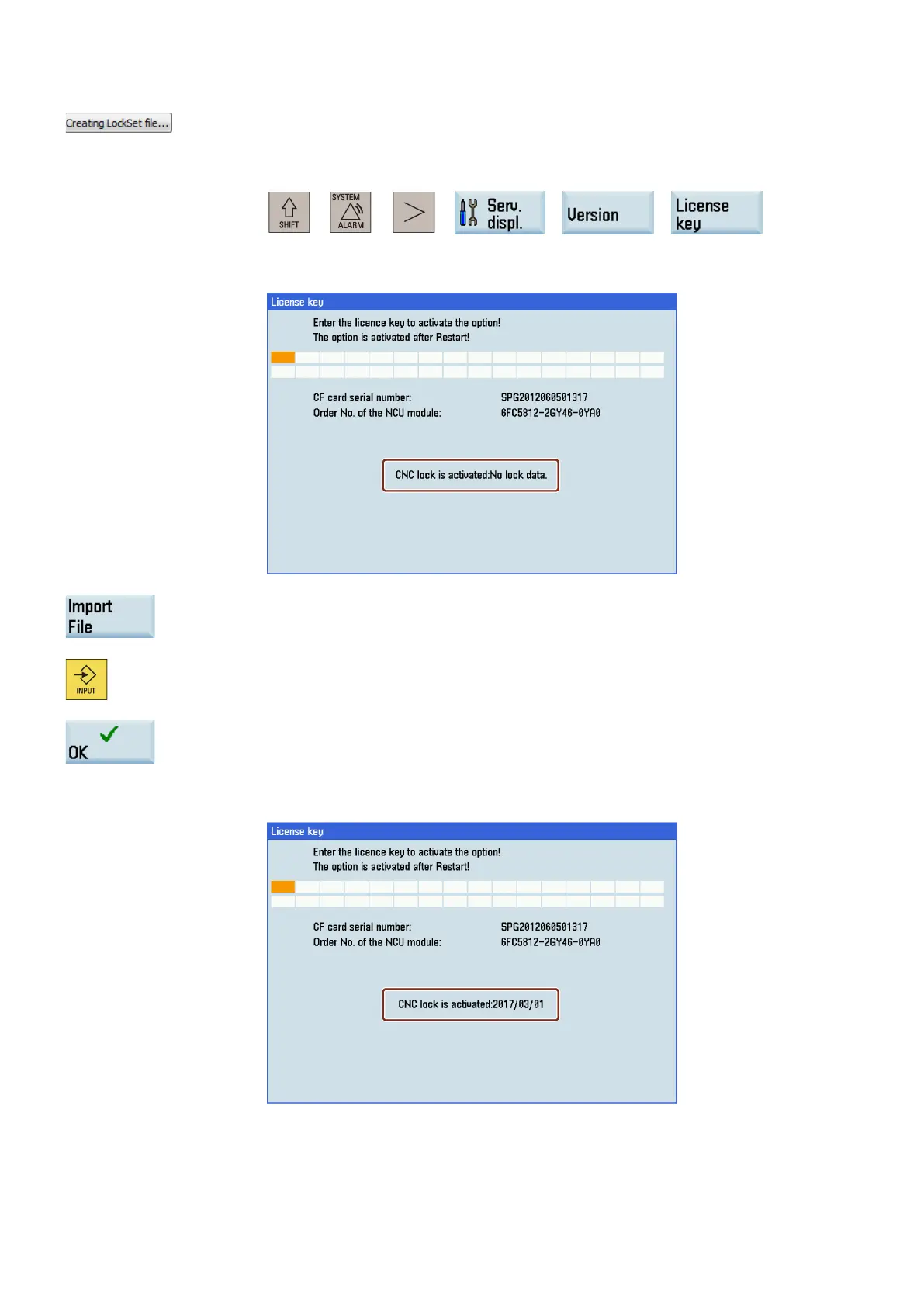

Click this button to save the activation data in the form of .clc file.
Store the .clc file in a USB memory stick or a connected network drive.
Open the license key dialog box through the following PPU operations:
+ → → → →
.
Check and make sure the screen displays as follows, which indicates the CNC lock option
is licensed and set properly:
.
Press this softkey to open the file opening dialog box.
.
Select the target directory and press this key to enter it.
1.
Find the desired activation file and press this softkey to import.
If no error occurs when importing the activation file, the CNC lock function is active in t
he
control system. You can find the lock date being displayed on the HMI screen, for example:
