Siemens SINUMERIK 808D - General PLC Alarms

Service Manual
32 01/2017
4.1
General alarms
4.1.1

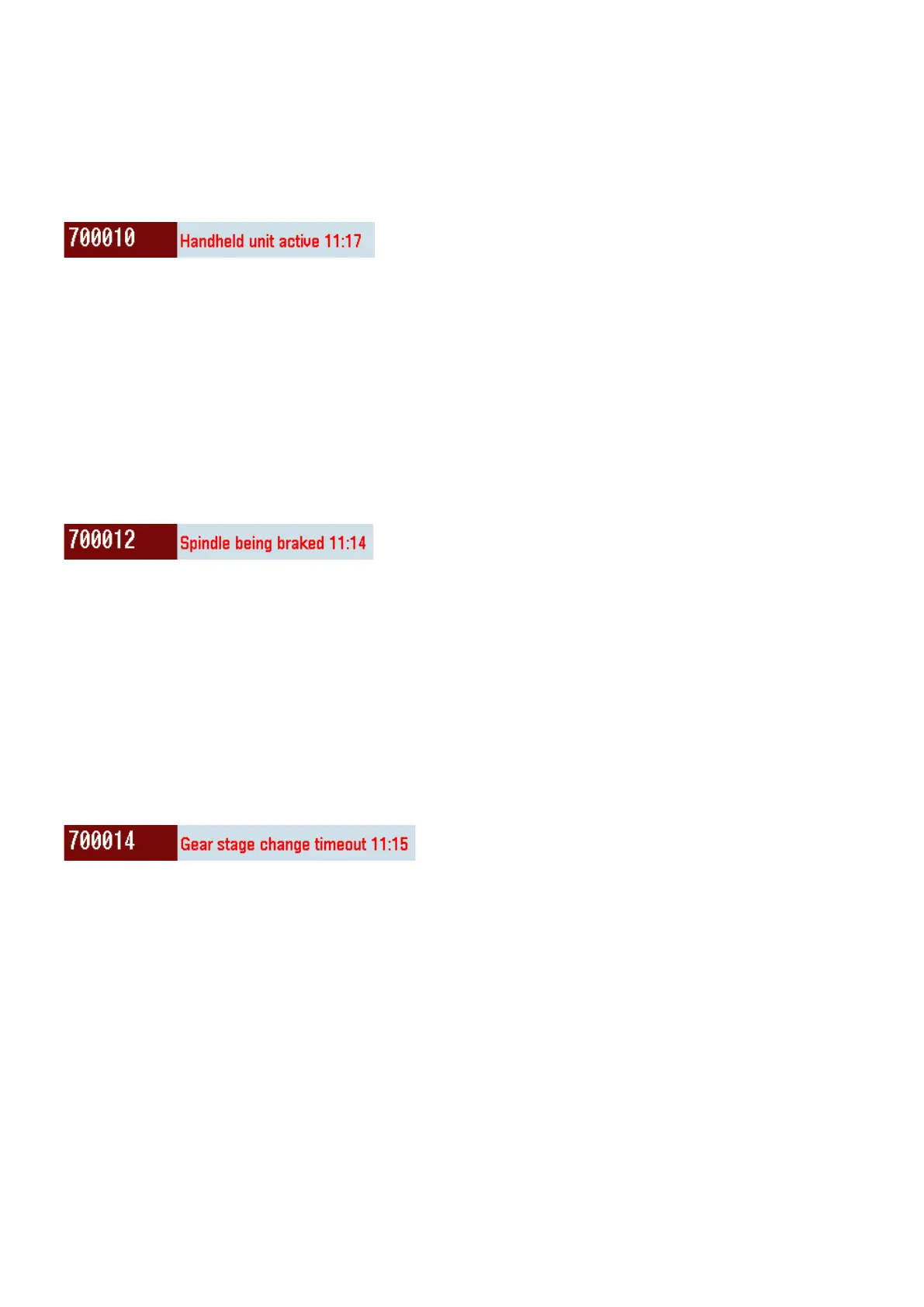

Alarm 700010
Alarm description
It is not a fault, but a reminder that the handwheel is activated and assigned to an axis.
PLC information
PLC address: DB1600.DBX1.2
Subroutine: MINI_HHU (SBR 41)
Remedy
No special action is required. The alarm will disappear after deactivating the handwheel function/unassigning the handwheel.
4.1.2
Alarm 700012
Name of alarm
It is not a fault but a reminder that the spindle is braking.
PLC information
PLC address: DB1600.DBX1.4
Subroutine: SPINDLE (SBR 42)
Remedy
Wait for the end of spindle braking, and then the alarm will disappear.
4.1.3
Alarm 700014
Alarm description
The spindle gear change time is beyond the time limit.
PLC information
PLC address: DB1600.DBX1.6
Subroutine: GearChg1_Auto (SBR 49)
Remedy
● Check whether the gear change monitoring time is too short.
● Check whether the spindle gearbox has mechanical problems.
