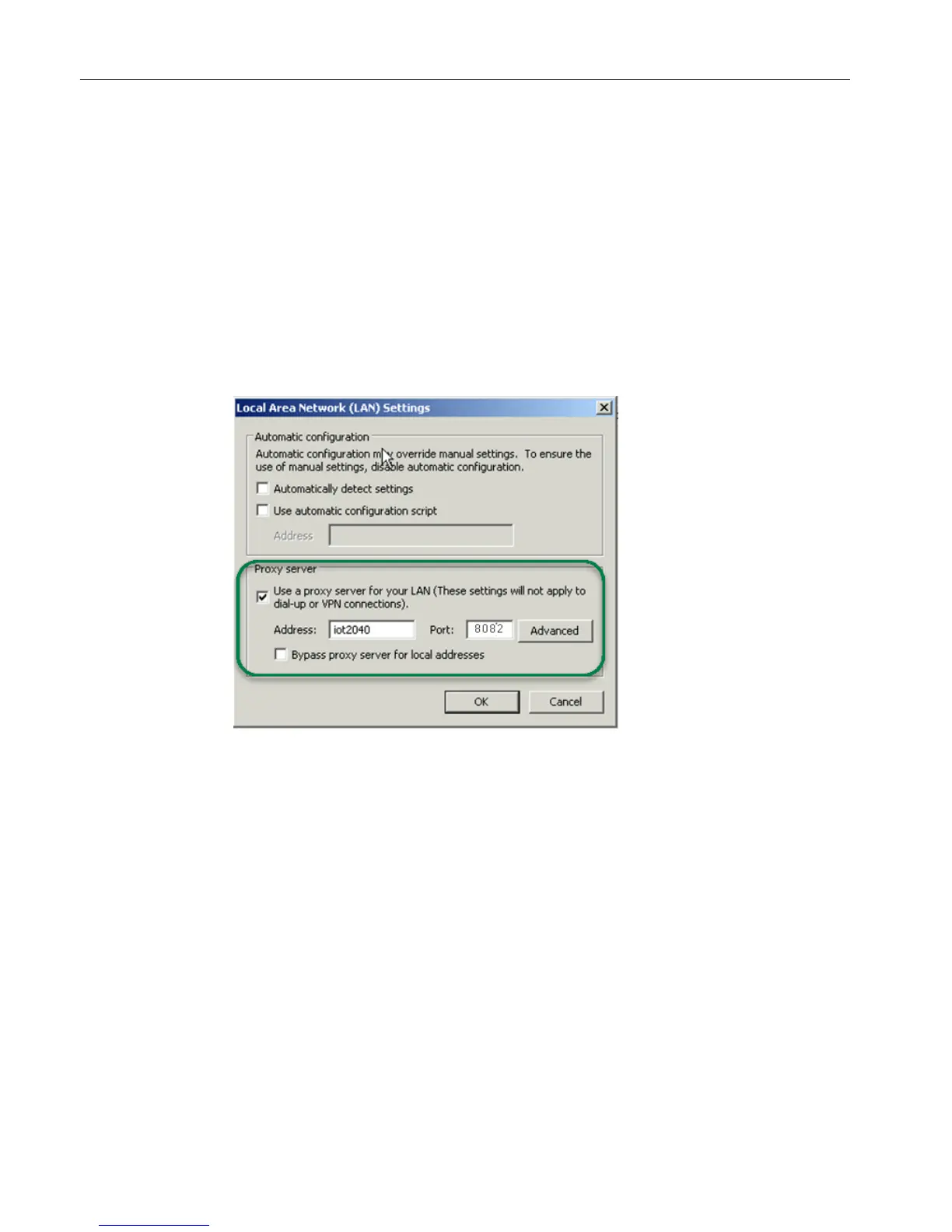

12.The "Local Area Network (LAN) settings" window opens.
Enter the proxy settings:
– Clear the "Automatically detect settings" check box.
– Clear the "Use automatic configuration script" check box.
– In the "Proxy server" group box, select the "Use a proxy server for your LAN …." check
box.
– Address: iot2040
– Port (as configured in Apache), e.g.: MindSphere V3 Livesystem: 8082
– Clear the "Bypass proxy server for local addresses" check box.
– Click "OK".
Installation/configuration
4.5 SIMATIC IoT2040
Manage MyMachines /Remote - installation in existing control environments
82 Application examples, 10/2018, A5E45211403B AB
