Procedure
1. The "Settings" window is open.
Press the "URLs>" softkey.

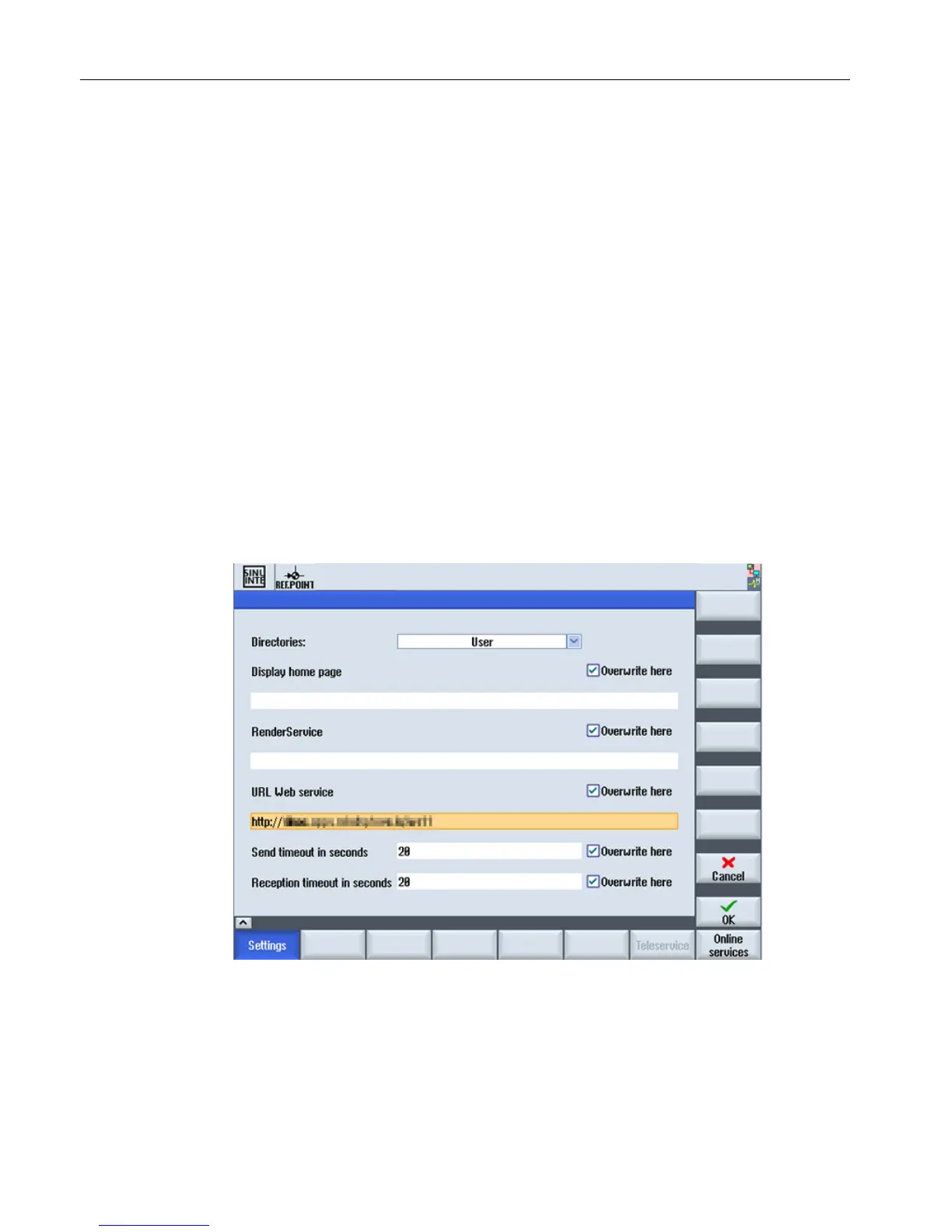

2. Press the "Settings" softkey and select the following settings:
– Directory: Select the "User" entry in the "Directories" drop-down list.
– Display home page: Select the "Overwrite here" check box.
– RenderService: Select the "Overwrite here" check box.
– URL web service: Select the "Overwrite here" check box.
– Configure the URL for connection to MindSphere with http, rather than with https.
Enter the following "URL Web service":
http://gateway.eu1.mindsphere.io/api/agentcom-mmmops/v3/ws11
– Enter the required value in the "Send timeout in seconds" text box (default value is 200).
For MindSphere, a value of "20" is recommended, and select the "Overwrite here" check
box.
– Enter the required value in the "Receptions timeout in seconds" text box (default value
is 200).
For MindSphere, a value of "20" is recommended, and select the "Overwrite here" check
box.
3. Configure the fixed proxy in SINUMERIK in the following format:
<ip-address>:<port>
<ip-address>: IP address of the IoT2040
<port>: Port used by Apache: Port 8082 is configured for the MindSphere V3 Livesystem
– Press "OK".
