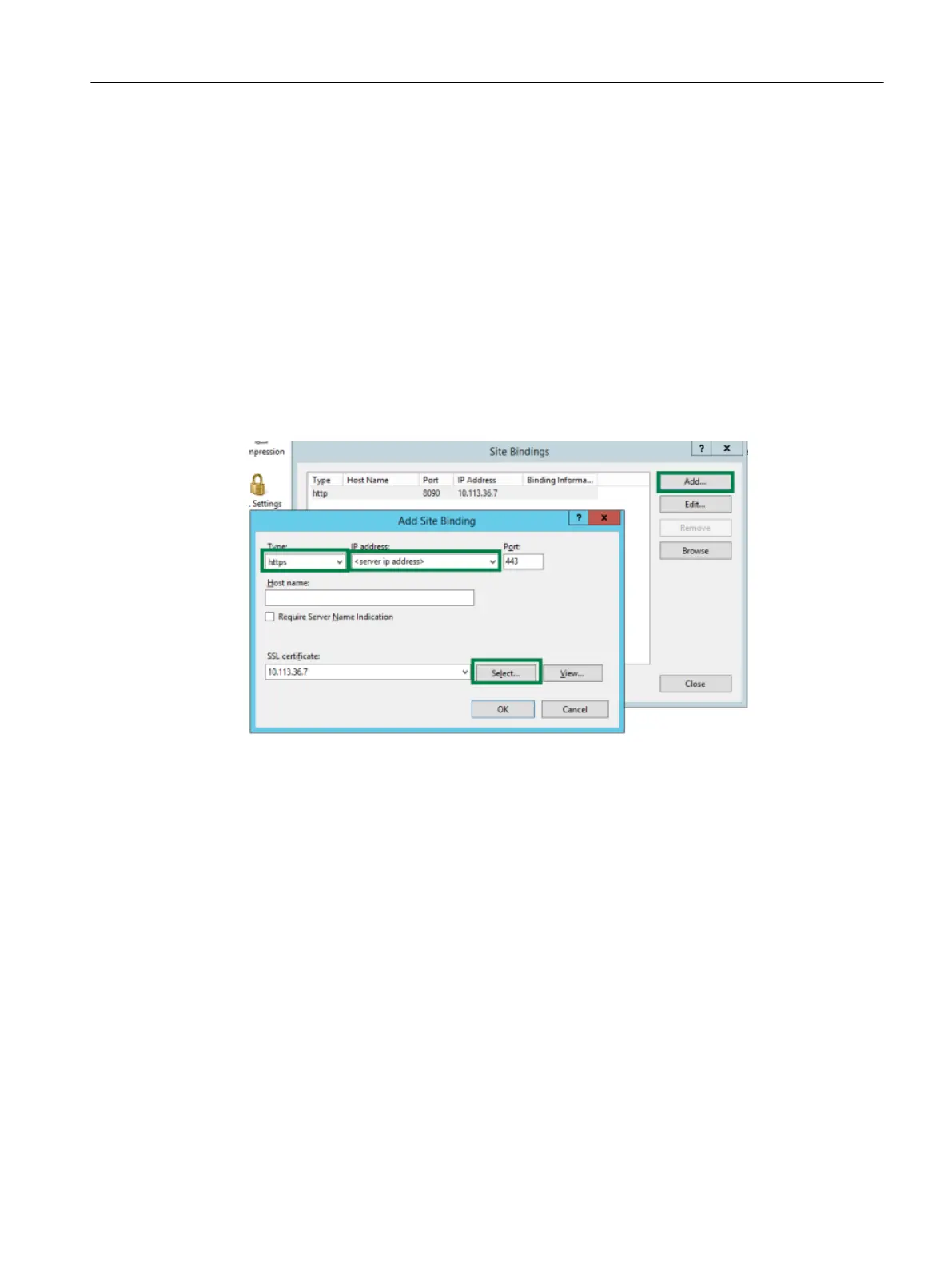

4. Right-click on the required IIS page (default: SinInt) and select "Edit Bindings".
The "Site Bindings" window opens. The port settings are listed.
Click "Add..."
The "Add Site Binding" window opens.
Make the required settings, e. g.:
– Type: "https"
– IP address: "<server ip address>" or "<host name>"
– Port: 443
– SSL certificate: Click "Select" to select the certificate.
Note:
Do not activate the "Require Server Name Indication" checkbox. Otherwise communication
problems may occur.
Click "OK".
- OR-
If HTTPS is to be configured with the use of a DNS name (host name), open the "Site
Bindings" window.
– Click "Edit...".
– The "Edit Site Binding" windows opens
Fill the "Host name" field in IIS.
Setting up an encrypted connection
5.1 Certificate on the server
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
Installation Manual, 12/2019, A5E44672080B AE 113
