Example: Setup client without HMI-Advanced
1. Select the menu "Configuration" and "Start background processes".

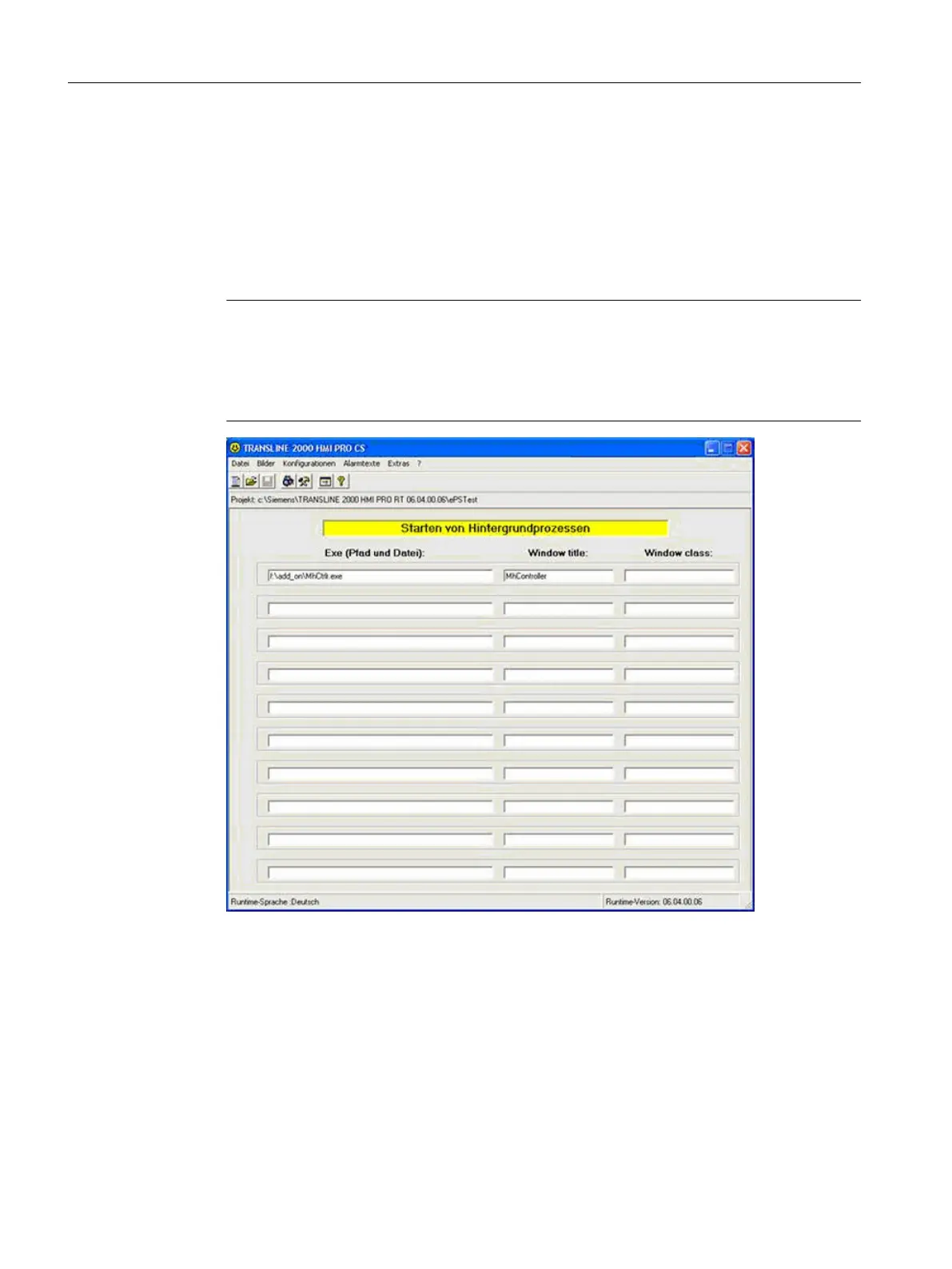

The following window is opened.
– In the text field "Exe (path and file):" enter the following directory:
"f:\add_on\MhCtrlr.exe".
– In the text field "Windows title" enter the following title: "MhController"
Note
It is not permissible that "MhCtrlr.exe" is started as background process, if the .exe is started
as background task by the Regie (administrator) (e.g. Task88).
While installing in the control, ensure that the following connection type is not selected:
"HMI-Advanced and SINUMERIK 840D/Di or 810D + PCU50/70".
2. Select the menu "File" and "Setting target computer", to configure the transfer of the project
to the target computer, e.g. to the PCU.
Installing SINUMERIK Integrate
7.2 SINUMERIK Integrate with HMI-Advanced
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
168 Installation Manual, 12/2019, A5E44672080B AE
