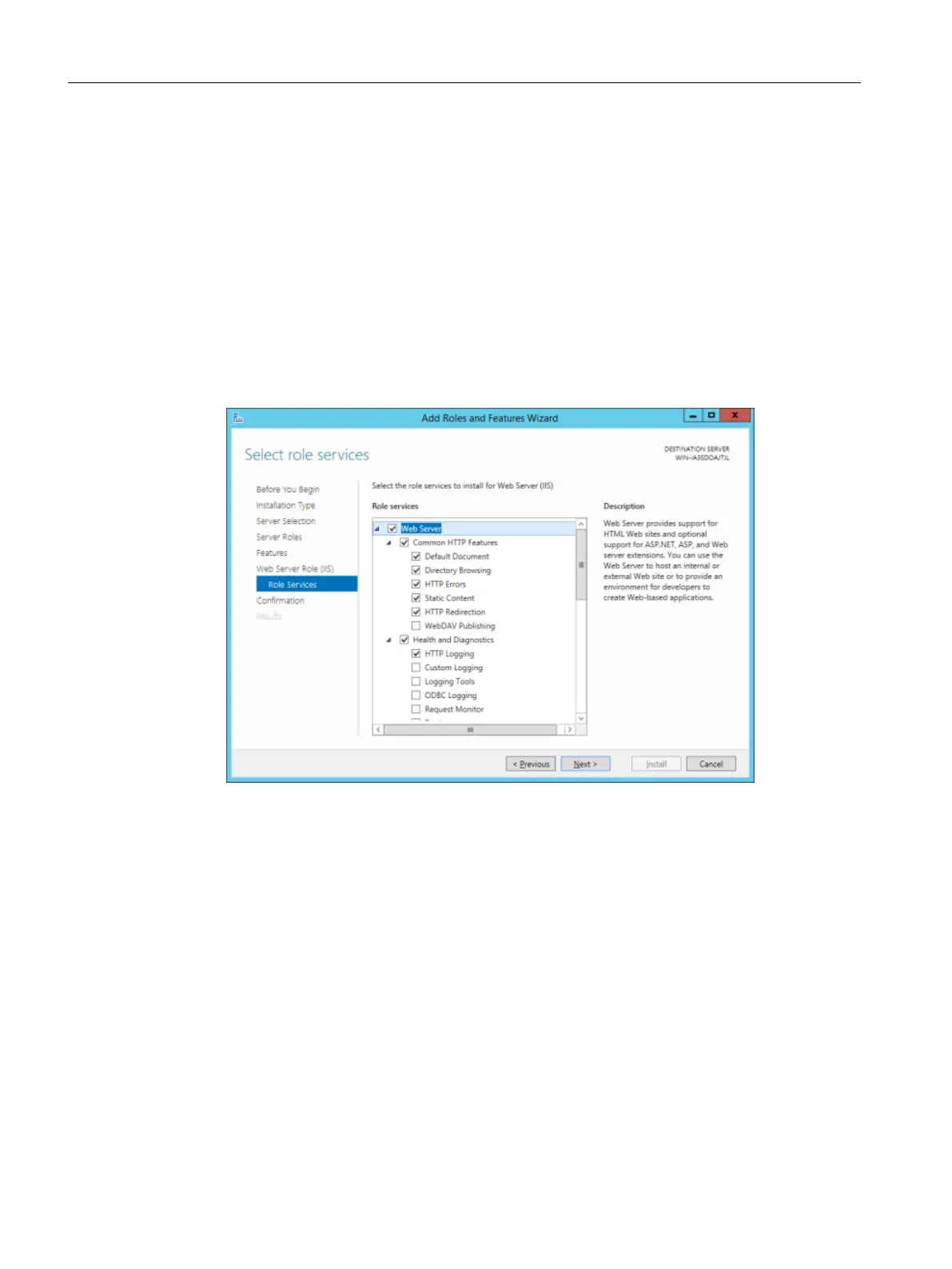

6. Select the "Role Services" function at "Web Server Role (IIS)".
Activate the "Web Server" checkbox.
Activate the "Common HTTP Features" checkbox and the following properties below:
– Default Document
– Directory Browsing
– HTTP Errors
– Static Content
– HTTP Redirection
Activate the "Health and Diagnostics" checkbox and the following property below:
– HTTP Logging
Installing/configuring Windows services
3.2 Setting up Internet Information Services and .NET Framework
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
28 Installation Manual, 12/2019, A5E44672080B AE

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
