Siemens SINUMERIK 840DE

03.06
4.1 Components
4-40
© Siemens AG, 2006. All rights reserved
SINUMERIK 840D Configuring Manual NCU (PHD) – 03.06 Edition
The link module is a submodule of the NCU 573.3/4/5. If it is plugged in, you
can reach the interface via the front plate of the NCU (above X122).
The module allows synchronization and an additional data exchange between
several NCU 573.3/4/5 in a group.
Order No.: 6FC5212-0AA01-1AA0
2.4
+0.4
–1.4
163.3
16.8
37.4
96.5

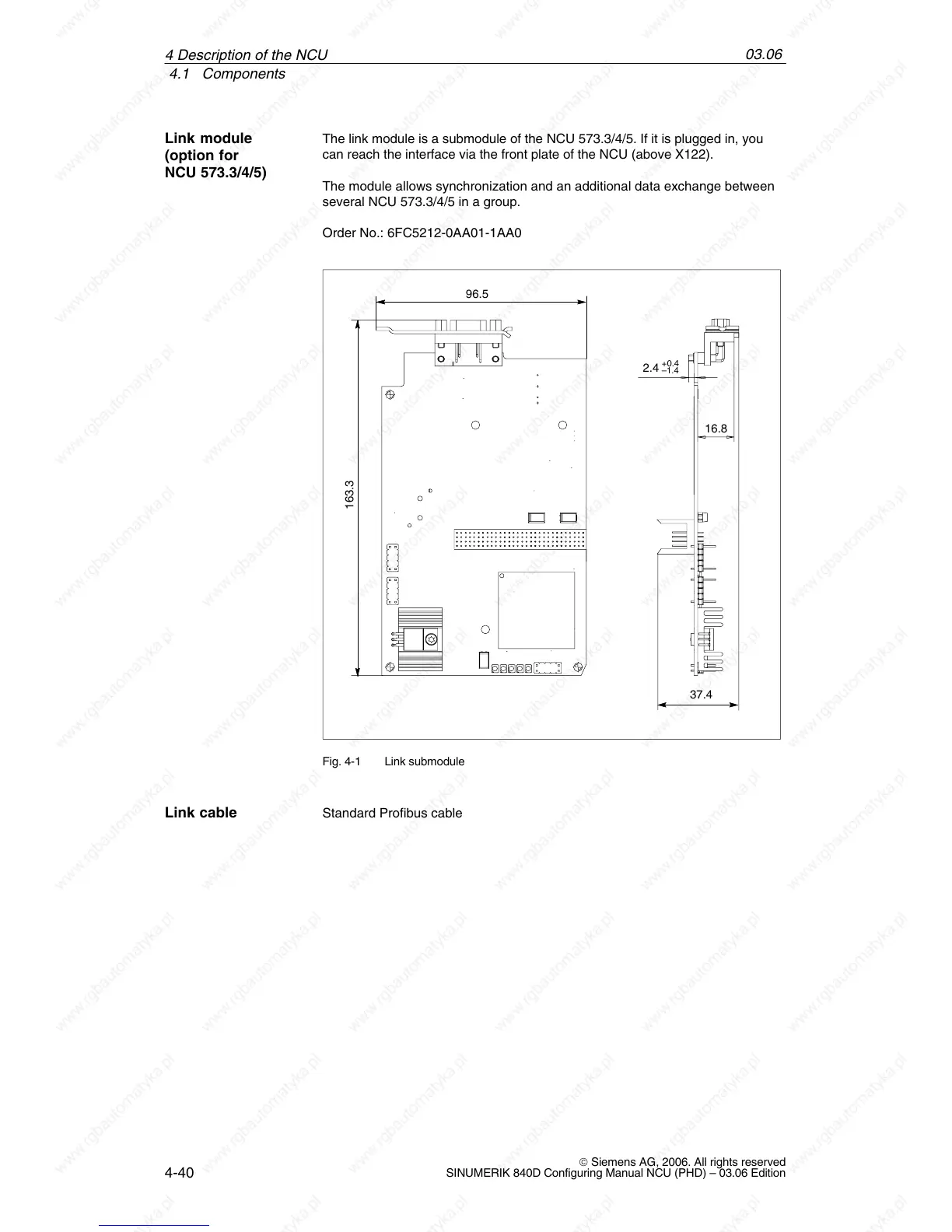

Fig. 4-1 Link submodule
Standard Profibus cable
Link module
(option for
NCU 573.3/4/5)
Link cable
4 Descri
p
tion of the NCU
