4.2.2 NCU box with a fan box
480 443
50
MEMORY CARD
198
265
208
316
136
510
Battery/fan
slide-in module
Power
supply unit
Cable distributor
Sheet metal housing
Fan box
Cut-out for
link module
Link submodule

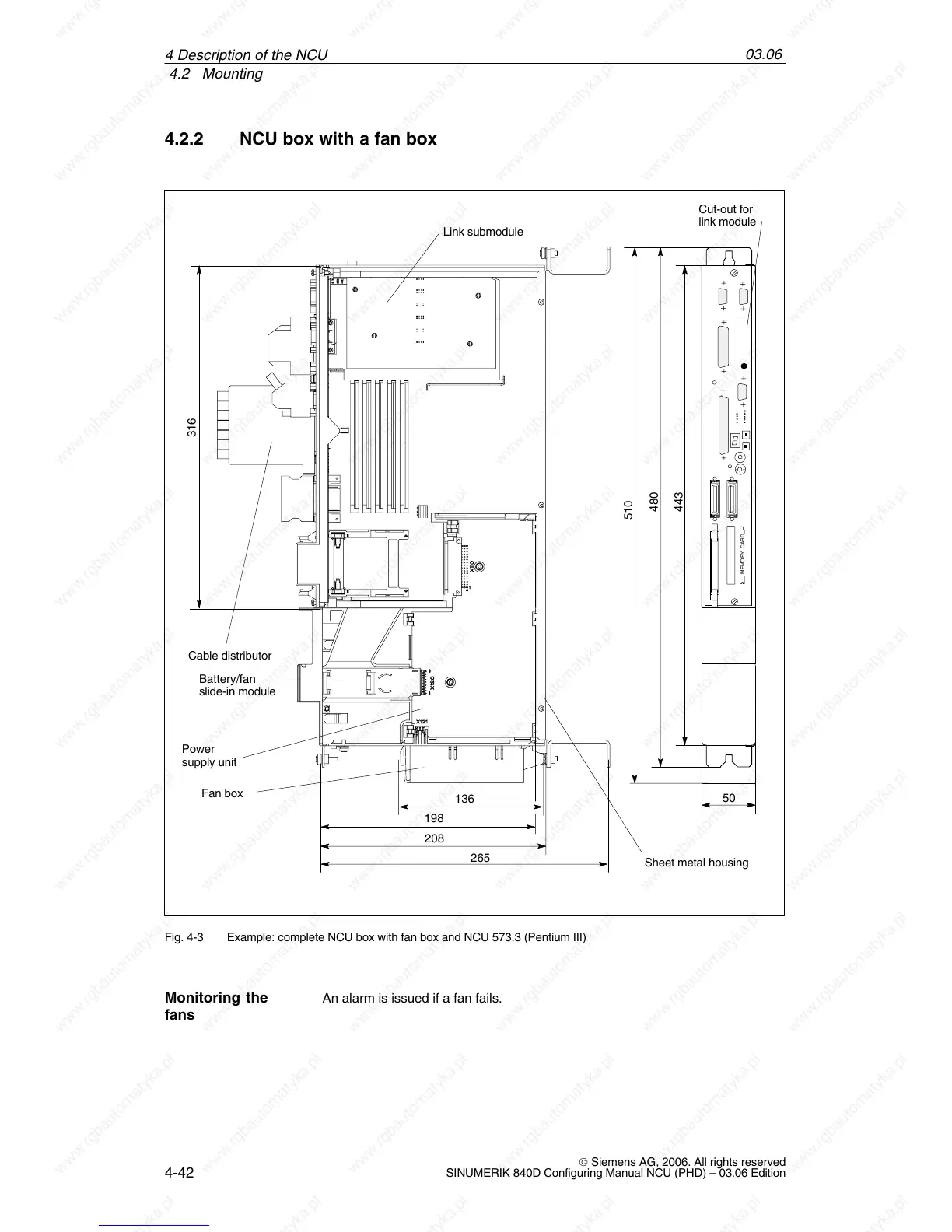

Fig. 4-3 Example: complete NCU box with fan box and NCU 573.3 (Pentium III)
An alarm is issued if a fan fails.Monitoring the
