I/O Modules
5.1 Single I/O module
The single I/O module has 64 inputs and 32 short-circuit-proof outputs (iso-
lated). Each output can be loaded with 0.5 A. The coincidence factor is 75%.
Up to three single I/O modules can be connected to the SINUMERIK 840D;
combinations with SIMATIC S7-300 lines are possible.
The single I/O module (connector X3 IN) is connected to the SINUMERIK 840D
(connector X111). The max. cable length is 10 m. Two cable variants are avail-
able for the connection from one single I/O module to the next:
 For single mounting: 6ES7368-30-0AA0
 For single-tier configuration with several single I/O modules: 6FC5
411-0AA80-0AA0, length 150 mm
840D
X111
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
EFP EFP EFP
X3
X3 X3
ÏÏ
ÏÏ
ÏÏ
ÏÏ
ÏÏ
ÏÏ
ÏÏ
ÏÏ
ÏÏ
ÏÏ
IM 361 or second single I/O module
X404
32 I
X405
32 I
X402
32 O
Terminal strip converter
Terminal strip converter
Terminal strip converter
6ES7368-30-0AA0
6FC5411-0AA80-0AA0, length 150 mm
6ES7368-30-0AA0
Ribbon cable
Ribbon cable
Ribbon cable
X3 IN
X3 OUT
SINUMERIK 840D
6ES7368-30-0AA0
EFP
Connecting cable shielded for single-tier configuration only
6FC5411-0AA80-0AA0, length 150 mm
OUTIN OUTIN OUTIN

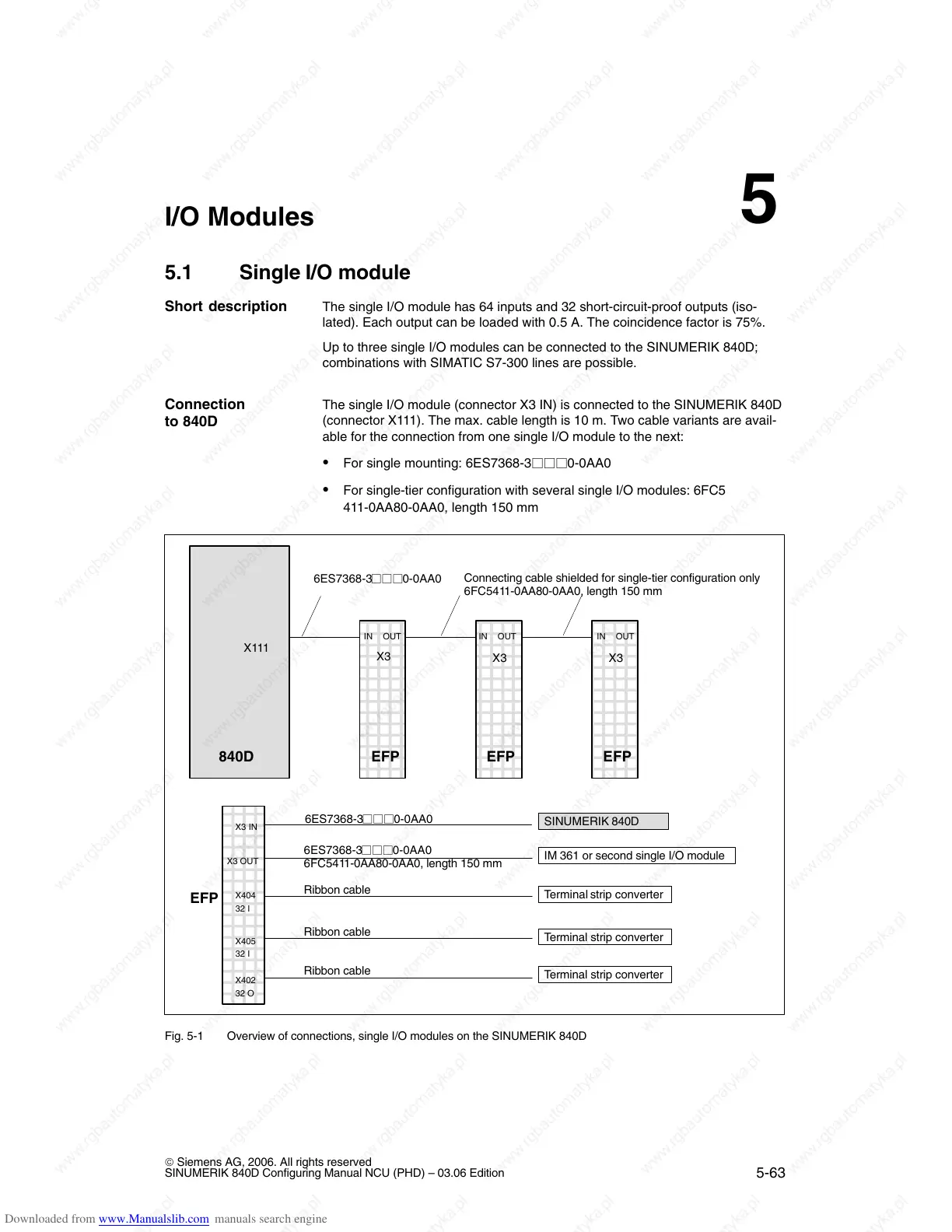

Fig. 5-1 Overview of connections, single I/O modules on the SINUMERIK 840D
