1.3 System setup
Accessibility of the server
The accessibility of the server varies in the particular SINUMERIK systems. The following table
shows the dependencies of the SINUMERIK systems:
SINUMERIK
systems
Accessibility
SINUMERIK
828D
After successful licensing and activation the OPC UA server is accessible via the X130 interface.
SINUMERIK
840D sl
The OPC UA server needs SINUMERIK Operate and runs on the same place as SINUMERIK Operate. For
this reason, system setup depends on whether a Thin Client is used (SINUMERIK Operate runs on NCU)
or a PCU / IPC with Windows operating system. If a Windows operating system is used, the OPC UA server
is also accessible as LocalHost.
Thin Client If a Thin Client is used, the OPC UA server is accessible after successful licensing
and activation via X130 interface of the NCU.
PCU / IPC If a PCU / IPC is used, the OPC UA server is accessible after successful licensing
and activation via "eth1" (X1) interface of the PCU / IPC. In this case the OPC UA
server is not accessible via the X130 interface of the NCU.

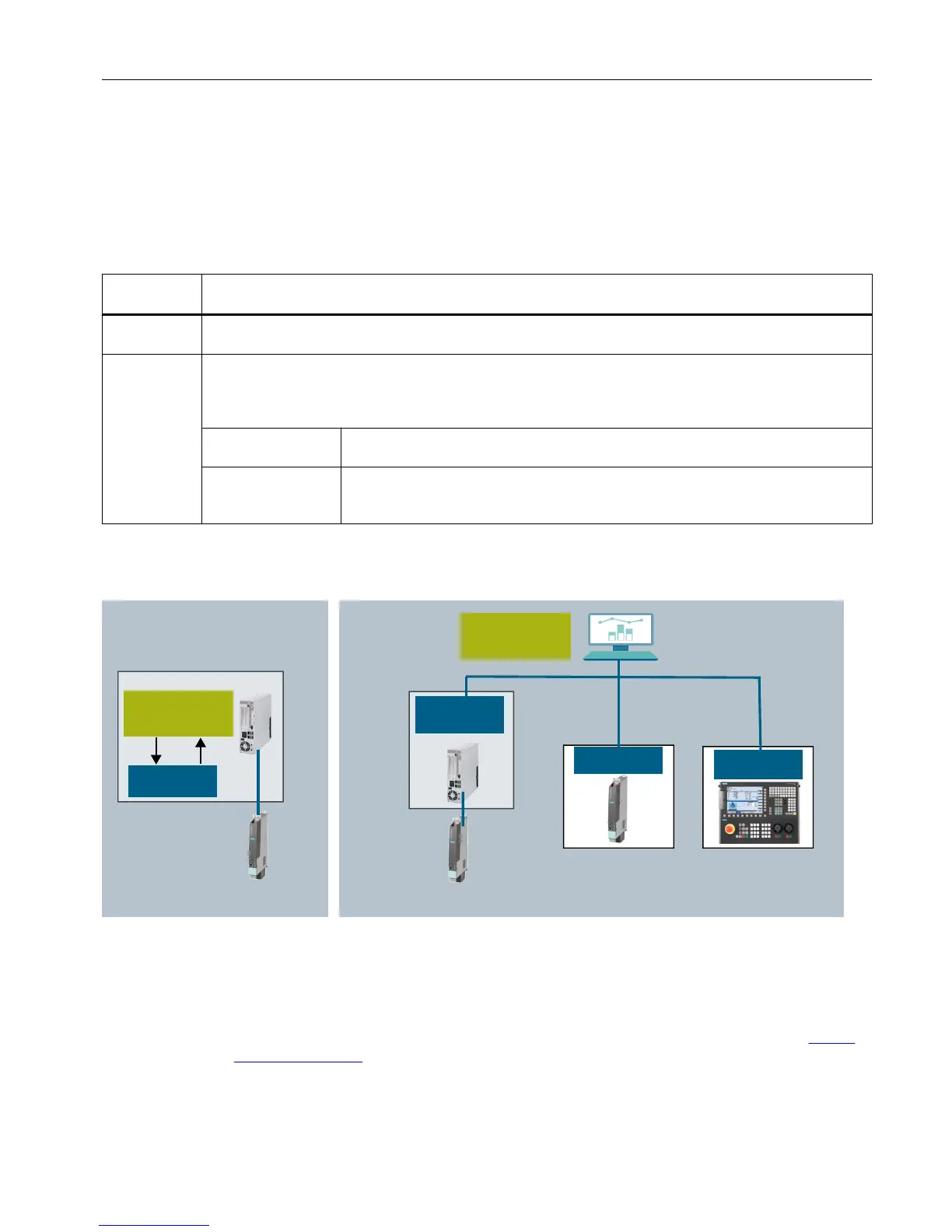

Application scenario
/RFDO
1HWZRUN
&XVWRPHU
DSSOLFDWLRQ23&
8$FOLHQW
&XVWRPHU
DSSOLFDWLRQ23&
8$FOLHQW
23&8$VHUYHU
23&8$
VHUYHU
23&8$
VHUYHU
23&8$
VHUYHU
3&8
6,180(5,.'VO6,180(5,.'VO6,180(5,.'VO6,180(5,.'
Figure 1-1 Application scenario
1.4 Reference to OPC UA specification
The SINUMERIK OPC UA server matches the specification of the OPC foundation (https://
opcfoundation.org/) V1.0.3.
