Transport, storage and packing
9229 0025 176 0E 11
2021-11-15
• Remove PE film from the vacuum circuit-breaker.
• In the case of overseas packing, push the lower PE film onto the pallet floor.
• Check that the delivery is complete.
• Check vacuum circuit-breaker for damage.
Damaged components! In the case of damage, such as breaks, cracks, flaking,
bent metal parts, damaged plug-in contacts, tears or bare cables, voltage break-
downs can occur.
• Do not use the vacuum circuit-breaker.
• Send it back in its original transport unit (see “Reuse of transport unit”, page 13).
Transportation to the
mounting location
• Remove all tensioning belts and bits of fastening wood.
• Remove the supplementary equipment and store it safely in the packing for later
installation.
Shifted centre of gravity! If the vacuum circuit-breakers are lifted with contact arms
mounted, the centre of gravity will be towards the contact arms.
The unit is transported in an inclined position.

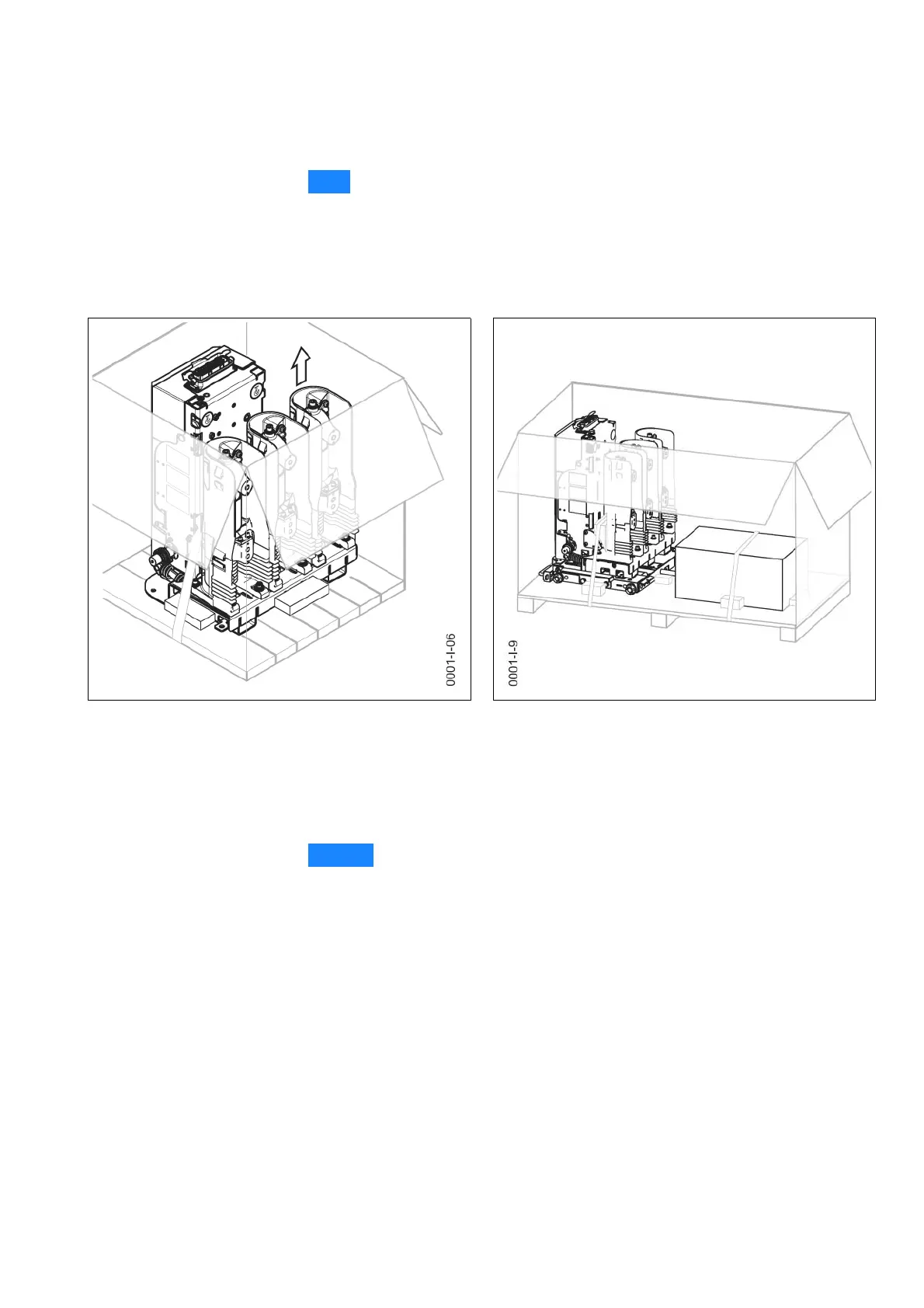

Fig. 3 Example – unpacking the fixed mounting ver-
sion
Fig. 4 Example – unpacking version with withdrawa-
ble part
