Transport, storage and packing
12 9229 0025 176 0E
2021-11-15
1) Diameter of the hook cross-section max. 19 mm
2) Opening width of the hook min. 18 mm
• Hang the fixing gear only into the crane eyes.
• Transport the vacuum circuit-breaker to the mounting location or leave it sus-
pended from the crane for further work steps.
Material damage due to incorrect mounting of sling gear! The holders (49) will
be damaged if ropes or similar slings are fastened below the holders (49).
Only use the crane eyes to fasten the slinging equipment.
Keep the supplementary equipment on hand for installation.

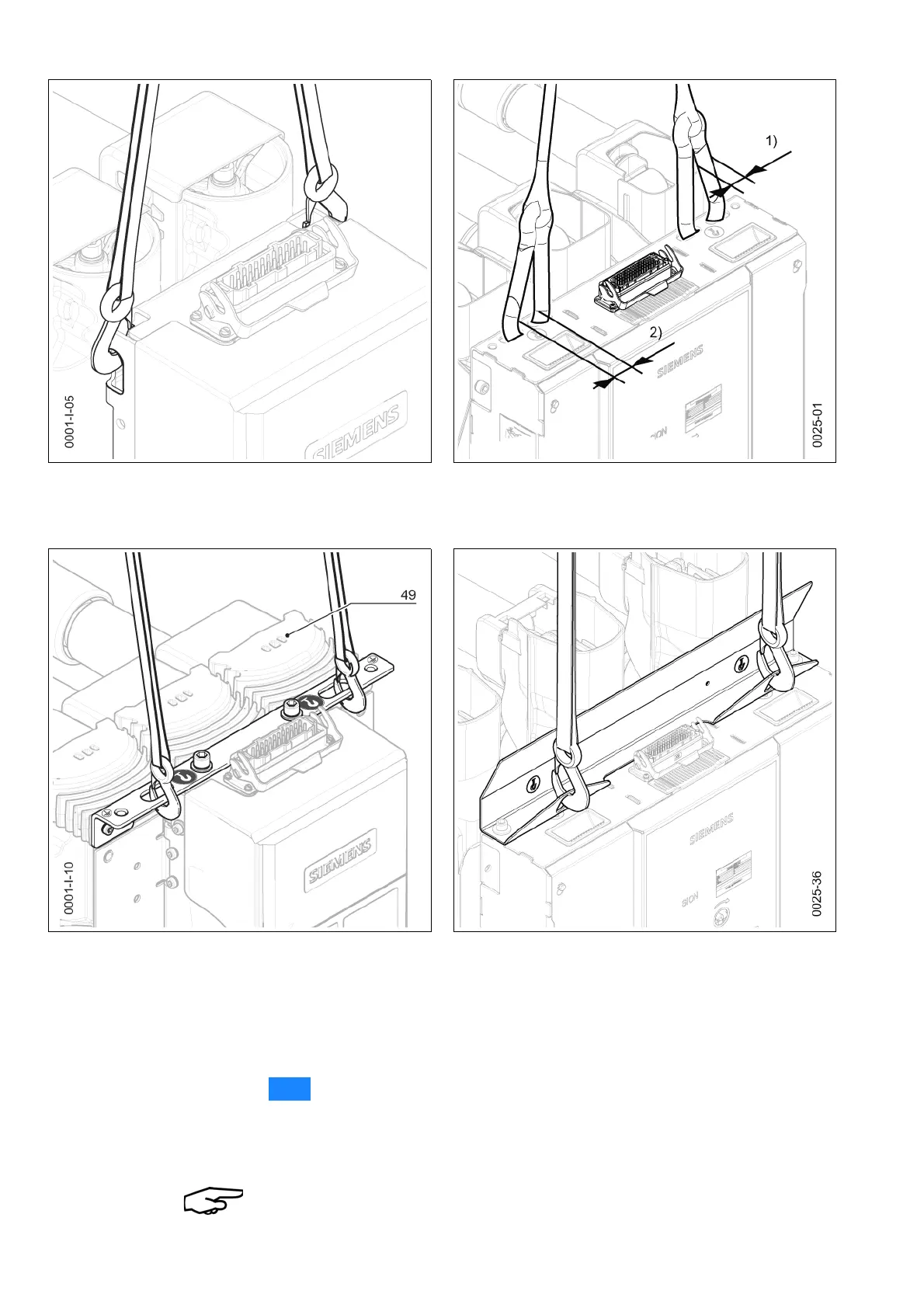

Fig. 5 Transporting by crane hook Fig. 6 Transporting on snap hooks
Fig. 7 Transporting, only for 31.5 kA with distance
between pole centres 150/160
Fig. 8 Transporting, only for 24 kV with 2000 A /
2500 A
