Transport, storage and packing
10 9229 0025 176 0E
2021-11-15
After receipt of delivery:
Checking the transport
unit
• Check the transport unit for damage.
• Major damage must be documented photographically.
• Ensure that any damage to the transport unit is confirmed by the transport com-
pany in writing.
Unpacking
Working materials Required tools:
- Knife/scissors
- Lifting gear with lifting harness
- Pliers or lever.
Risk of injury from sharp edges! Fasteners may break and have sharp edges.
Always use a suitable tool to lever out fasteners.
Damaging the transport belt straps! Belt straps could be severed when cutting
open the box on the pallet floor.
• The vacuum circuit-breaker is attached to the pallet with belt straps. It is not per-
mitted to transport the vacuum circuit-breaker on the pallet without using belt
straps (see Fig. 3 to Fig. 4).
• Keep box for reuse.
Risk of tipping over due to shift in centre of gravity! Vacuum circuit-breakers
with mounted contact arms may tip onto the contact system if not fixed.
Before undoing the belt straps, ensure that the vacuum circuit-breaker is positioned
safely and hook fixing gear to the points marked with crane hooks (see Fig. 5 to
Fig. 7).
Opening the transport unit • Place the transport unit on a level, non-slip and pressure-resistant surface.
• Remove lifting gear or means of transportation.
• Remove plastic wrap.
• Lever out the fasteners from the box and lift off the box (see Fig. 2).

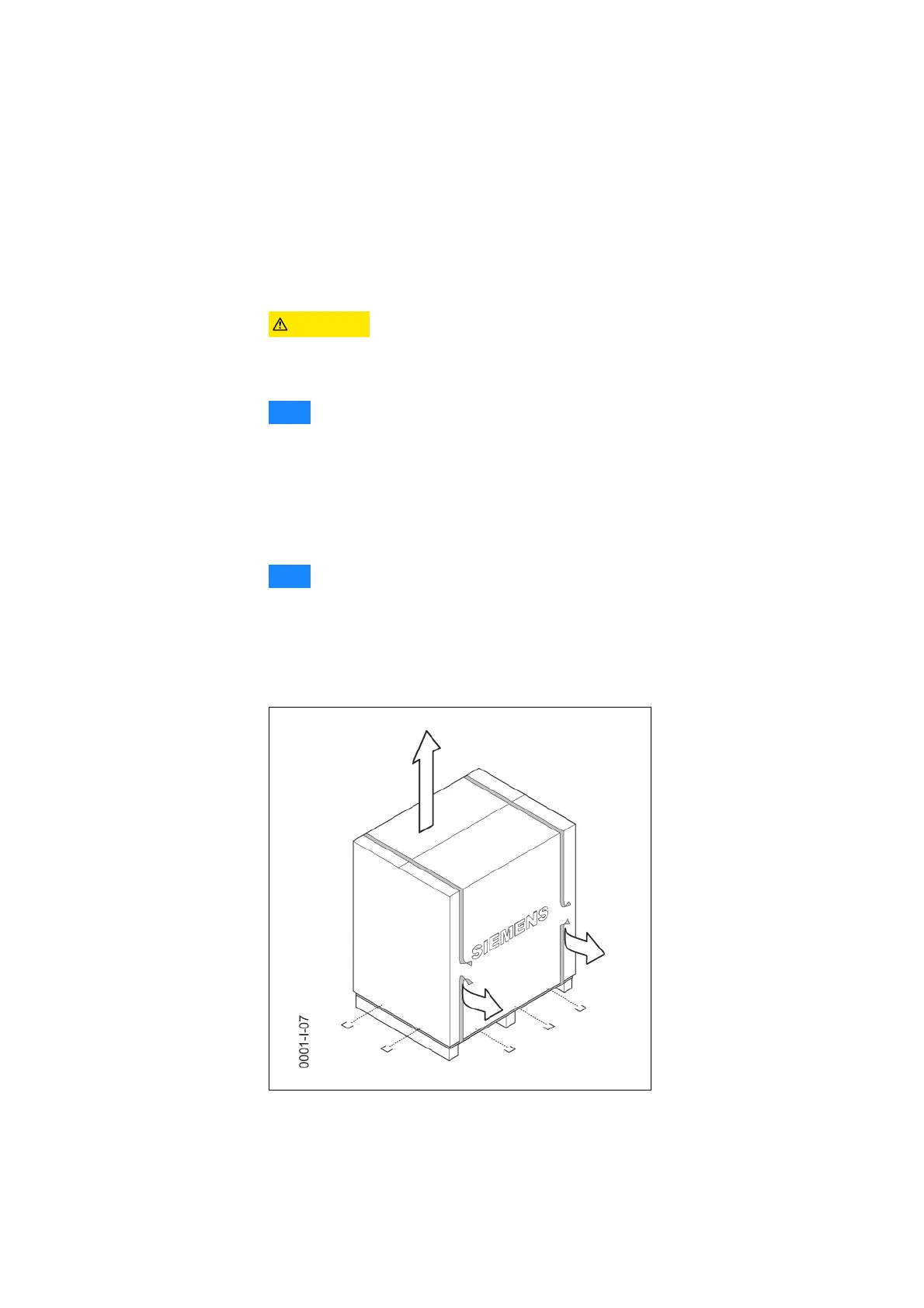

Fig. 2 Remove the fasteners from the box
