Installation
9229 0025 176 0E 43
2021-11-15
Mounting the system-side insulating shells
System-side insulating shells (47) can be used to insulate the individual poles from
each other if there is restricted terminal space.
When using system-side insulating shells (47), you can use main conductors with a
max. diameter or cross-section of 60 mm.
• Slide insulating shells (47) onto previously mounted threaded rods of main con-
ductors (for connecting the main conductors, see “Mounting conductor bars”
page 54).
• Place insulating shell (47) onto the pole shell (46) and engage into the guide.
• Engage the hooks by hand if necessary.
• Press upper and lower insulating shell (48) horizontally against the pole shell
(46) until they engage audibly.

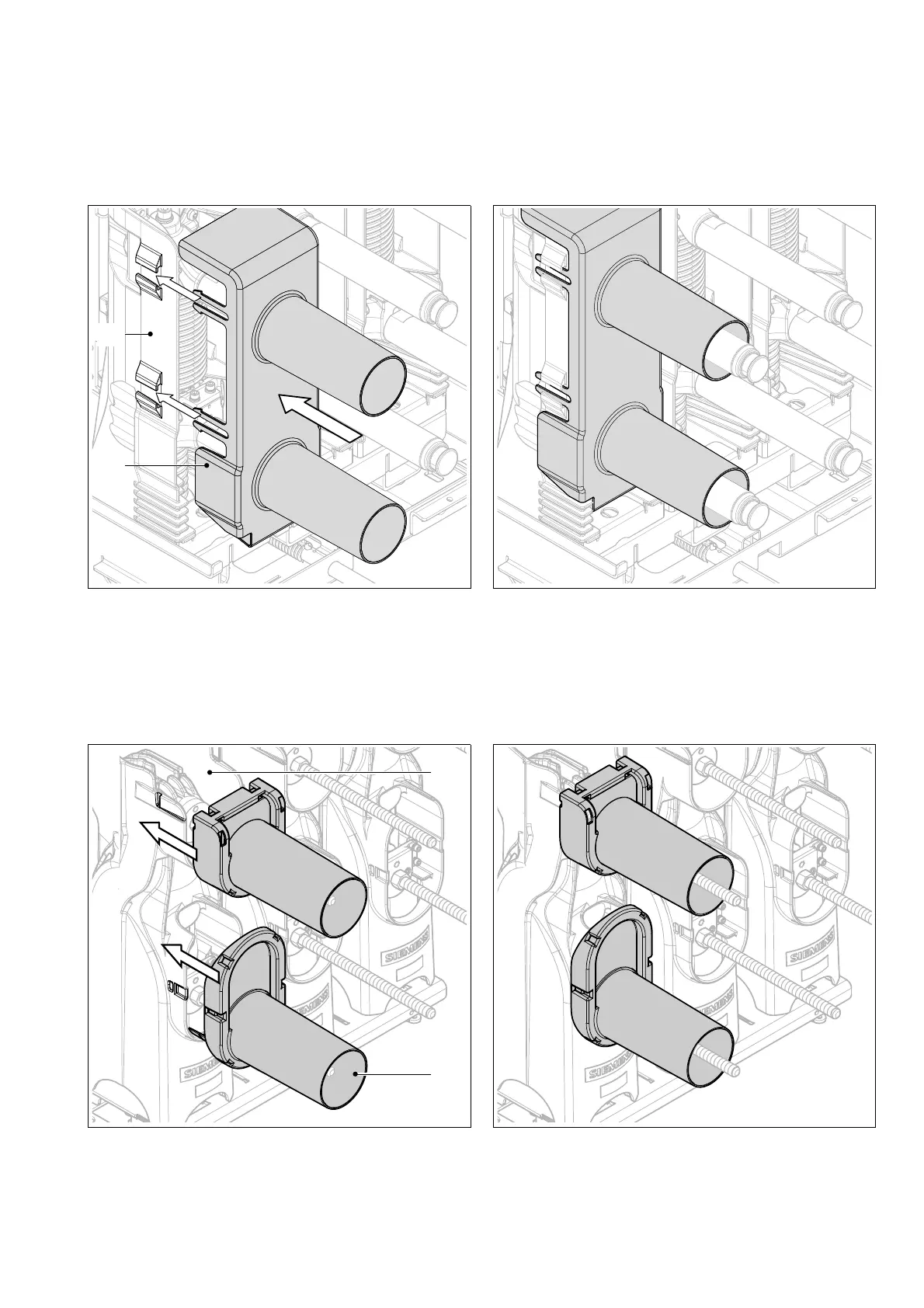

Fig. 52 Up to 17.5 kV, mounting insulating shells Fig. 53 Up to 17.5 kV, engaging insulating shells
Fig. 54 24 kV, mounting insulating shells Fig. 55 24 kV, engaging insulating shells
