4.2 Mounting the NCS to a rotary actuator up to 14 mm (0.55 inch)
Prerequisites
1. An EMC filter module in the positioner.
2. An NCS for rotary actuators up to 14 mm (0.55 inch) 6DR4004-.N.20.
3. Linear actuator with interface to NAMUR. This installation must be carried out individually. Only a NAMUR mounting
bracket can be used as mounting base. The following figure shows the assembly with NAMUR mounting bracket.
Or
linear actuator without interface to NAMUR and individual mounting solution.
Description
s
s
$
%&
Dimensions in mm
A Mounting on a yoke with fin
② Assembly panel for Non Contacting Sensor (NCS) -
individual solution; not included in the scope of delivery
B Mounting on a yoke with plane surface
③ Non-contacting sensor (NCS)
C Mounting on a yoke with columns
④ Magnet
① NAMUR mounting bracket IEC 60534 - not
included in the scope of delivery
⑤ Mounting bracket for the magnet - individual solution;
not included in the scope of delivery

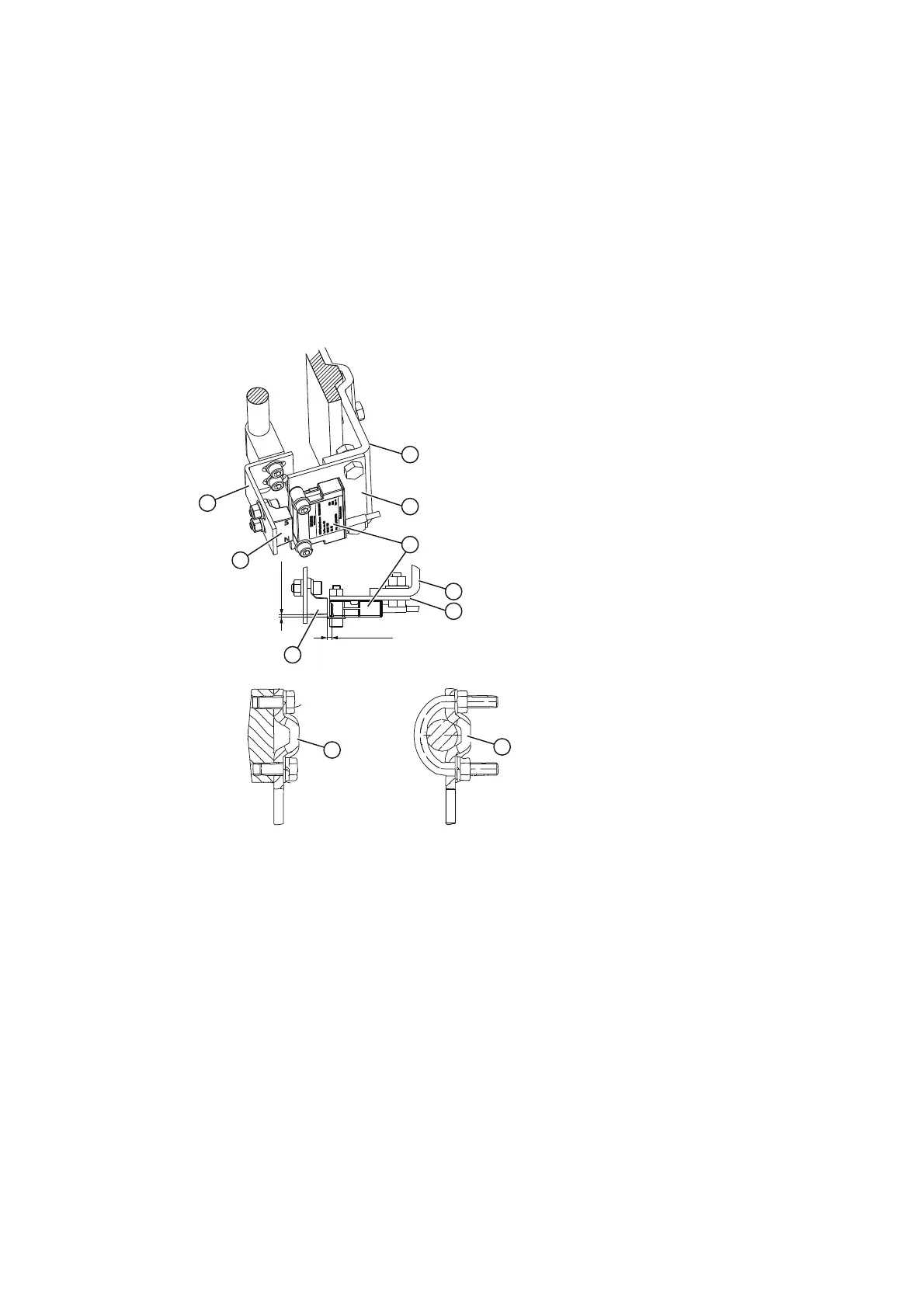

Figure 4-2 Example of the assembly on a linear actuator with a stroke up up to 14 mm (0.55 inch)
Procedure
1. Produce the mounting panel
② and mounting bracket ⑤ individually.
2. Align the sensor to the center of the stroke. Observe the dimensions specified in the figure.
SIPART PS2 Non-Contacting Sensor (NCS)
A5E00097485-07, 01/2012
25
