Reference
For information on the scope of delivery, refer to chapter "Scope of delivery of NCS for linear actuators up to 14 mm
(0.55 inch) . (Page 33)".
4.3 Mounting the NCS to a rotary actuator > 14 mm (0.55 inch)
Prerequisites
1. An EMC filter module in the positioner.
2. An NCS for linear actuators > 14 mm (0.55 inch) 6DR4004-.N.30.
3. Linear actuator with interface to NAMUR
Order number based on the respective stroke range: 6DR4004-8V or 6DR4004-8V + 6DR4004-8L.
Or
linear actuator without interface to NAMUR and individual mounting solution. Order number 6DR4004-8VK or 6DR4004-
8VL can be sued as individual assembly solution, depending on the stroke range.

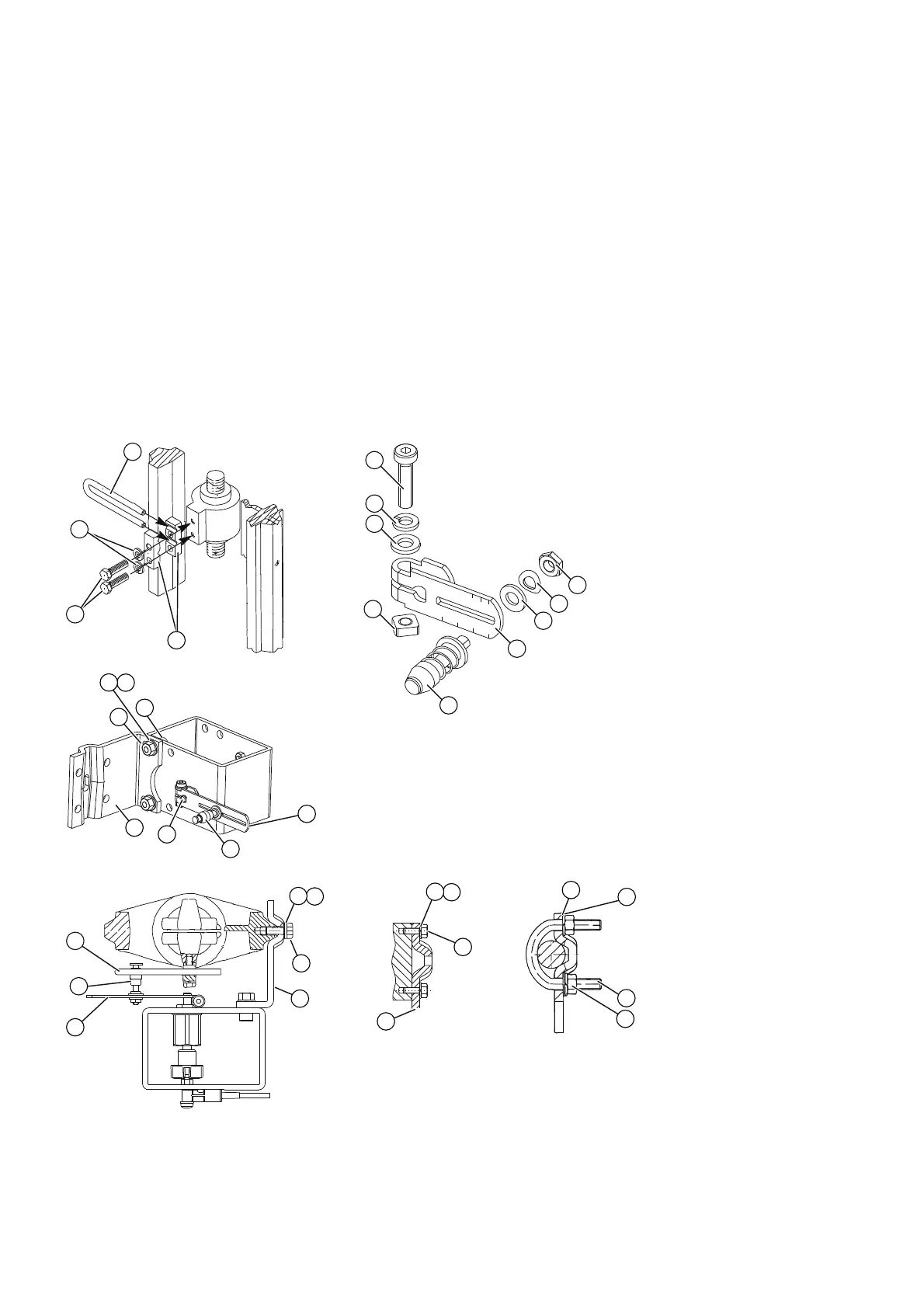

Description
r
r
$%&
A Mounting on a yoke with fin ⑨ Spring washer A8
B Mounting on a yoke with plane surface
⑩ Washer B 8.4
SIPART PS2 Non-Contacting Sensor (NCS)
26 A5E00097485-07, 01/2012
