[dwocpki2-080213-01.tif, 1, en_US]

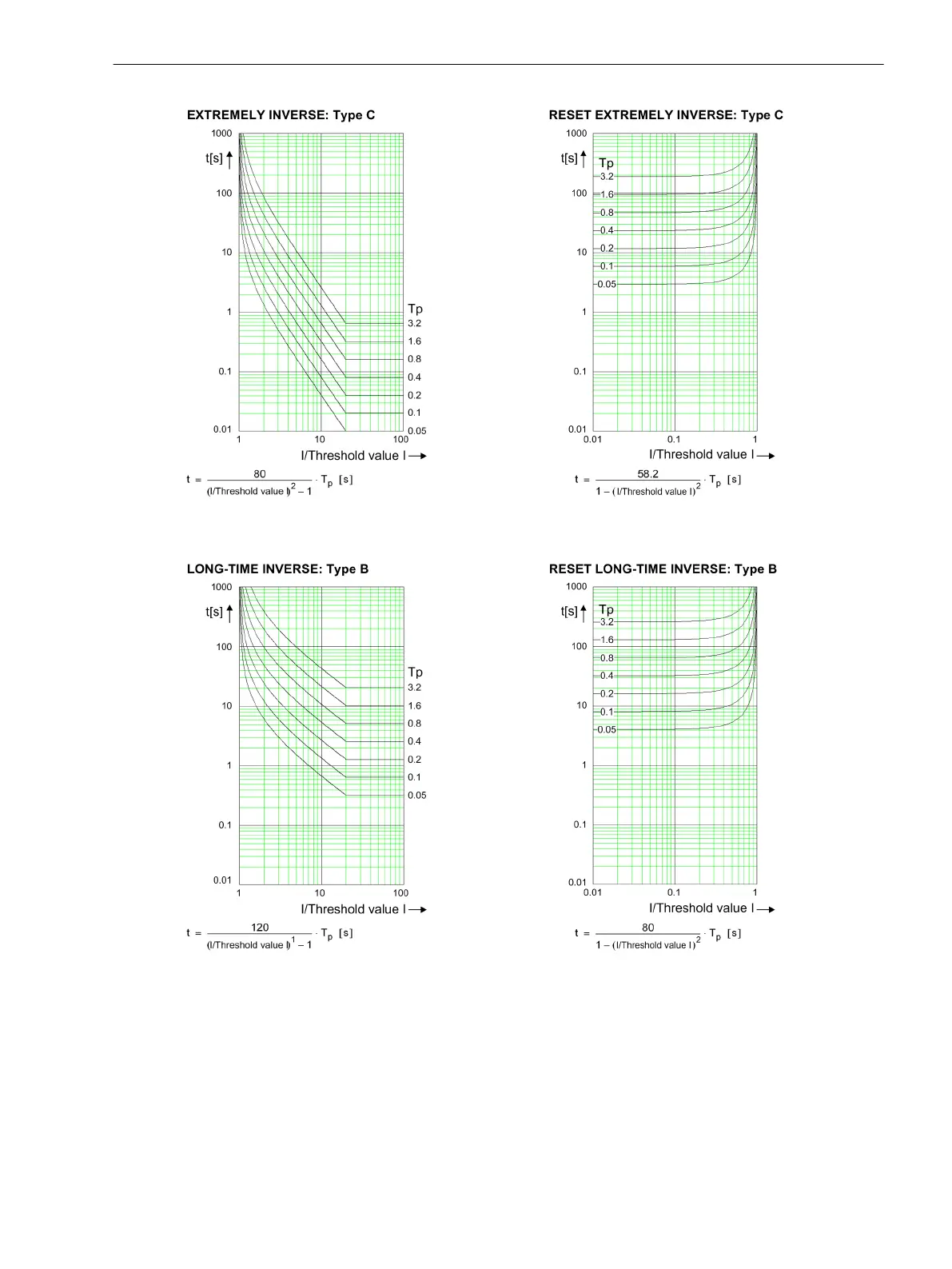

Figure 12-2
Operate Curves and Dropout-Time Characteristic Curves According to IEC
Technical Data
12.9 Overcurrent Protection, Phases
SIPROTEC 5, Paralleling Device, Manual
735
C53000-H5040-C071-1, Edition 05.2018
34
