Reset of the Integration Timer
Instantaneous With dropout
Disk emulation Approx. < 0.90 ⋅ threshold value

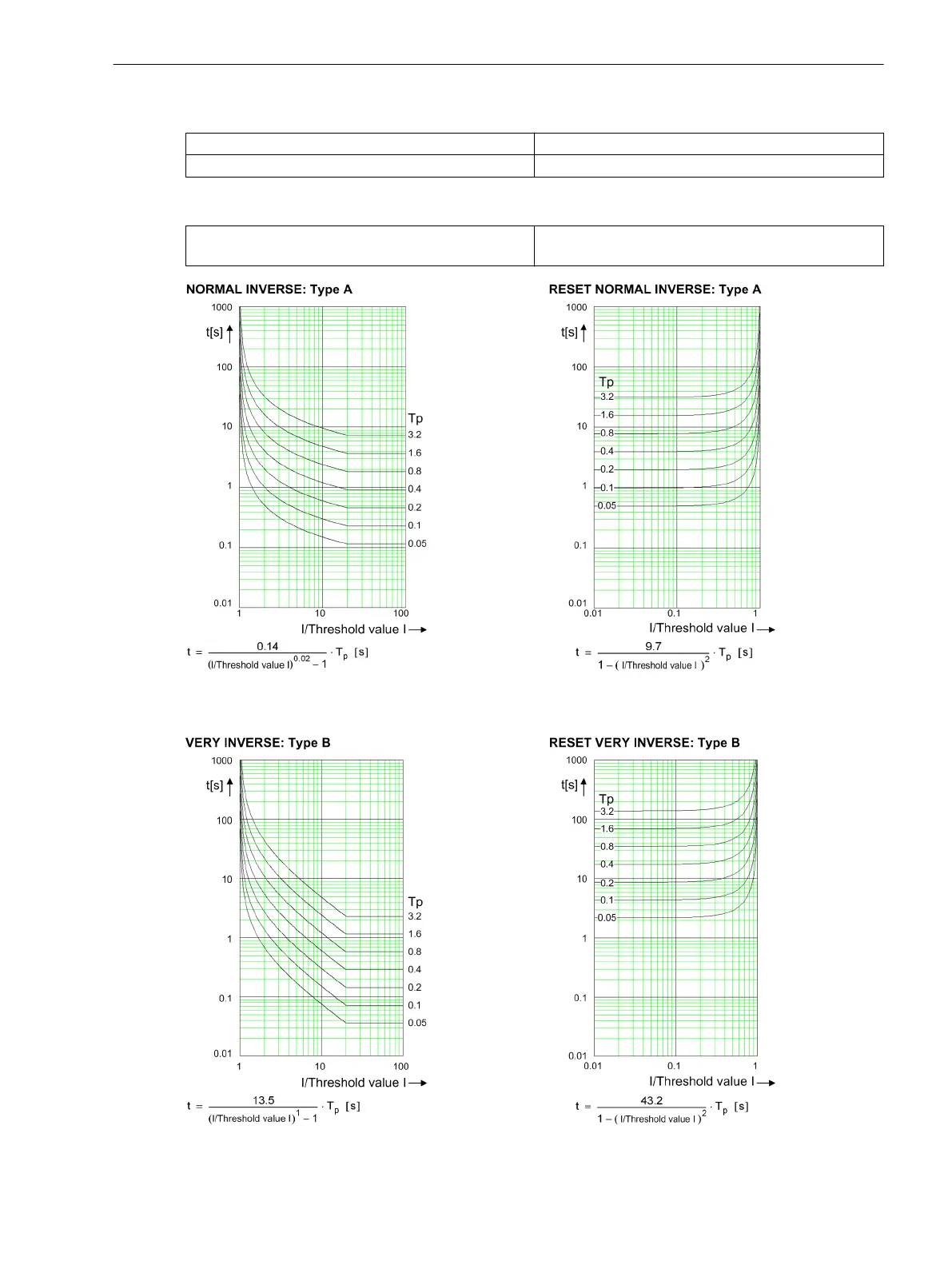

Operate Curves and Dropout Characteristic Curves According to IEC
Extension of the operate time during operation with
transformer inrush-current detection
Approx. 10 ms
[dwocpki1-080213-01.tif, 1, en_US]
Figure 12-7
Operate Curves and Dropout Characteristic Curves According to IEC
Technical Data
12.10 Overcurrent Protection, Ground
