Operate Curves and Dropout Characteristic Curves According to ANSI/IEEE
[dwocpka1-080213-01.tif, 2, en_US]

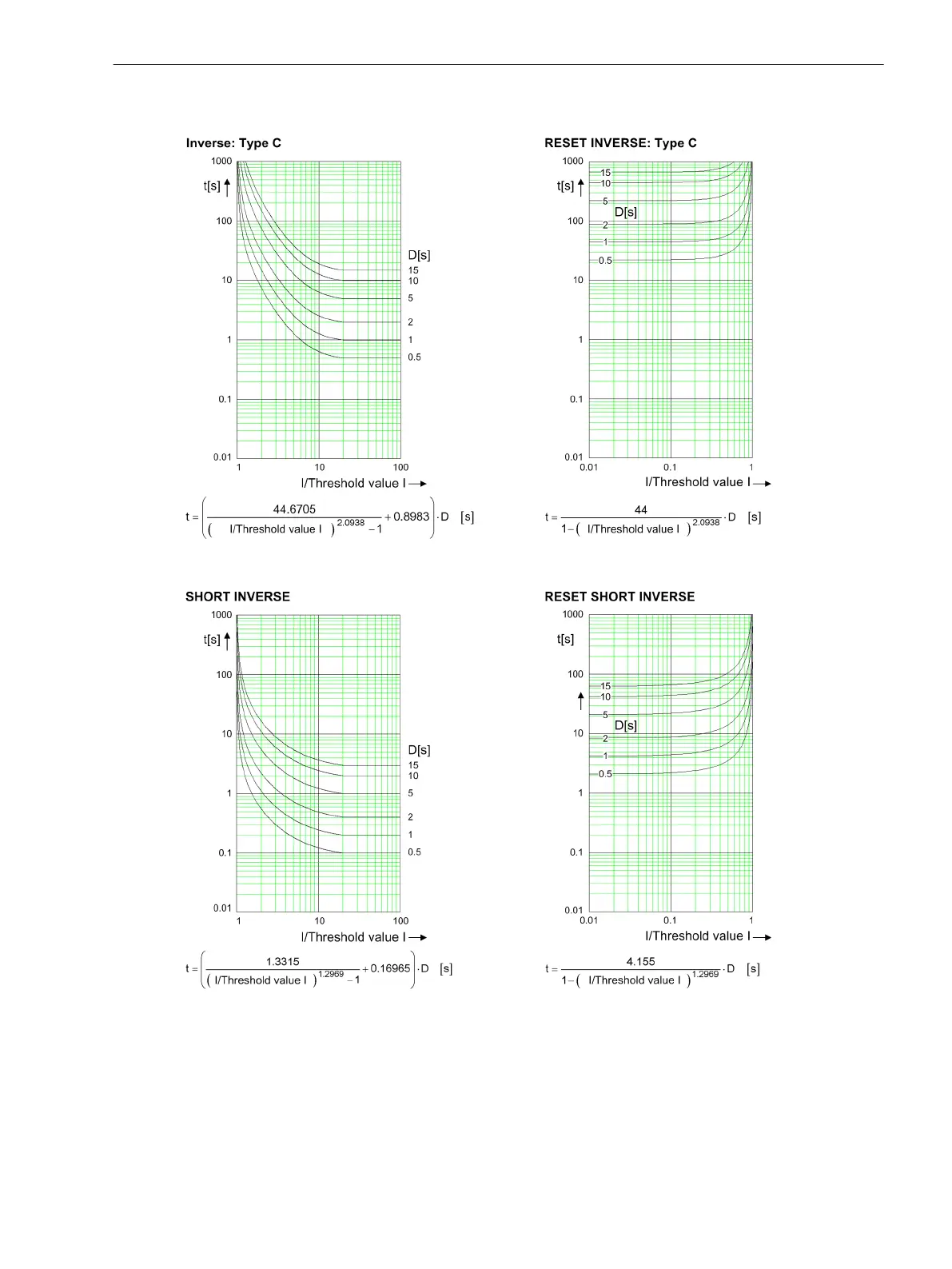

Figure 12-9
Operate Curves and Dropout Characteristic Curves According to ANSI/IEEE
Technical Data
12.10 Overcurrent Protection, Ground
SIPROTEC 5, Paralleling Device, Manual 747
C53000-H5040-C071-1, Edition 05.2018
