3 Mounting and Commissioning
362
7UT613/63x Manual
C53000-G1176-C160-2
Input/Output Board
C-I/O-9 (only
7UT635)
7UT635 contains a second board C-I/O-9. Mounting location: Slot 19 right side

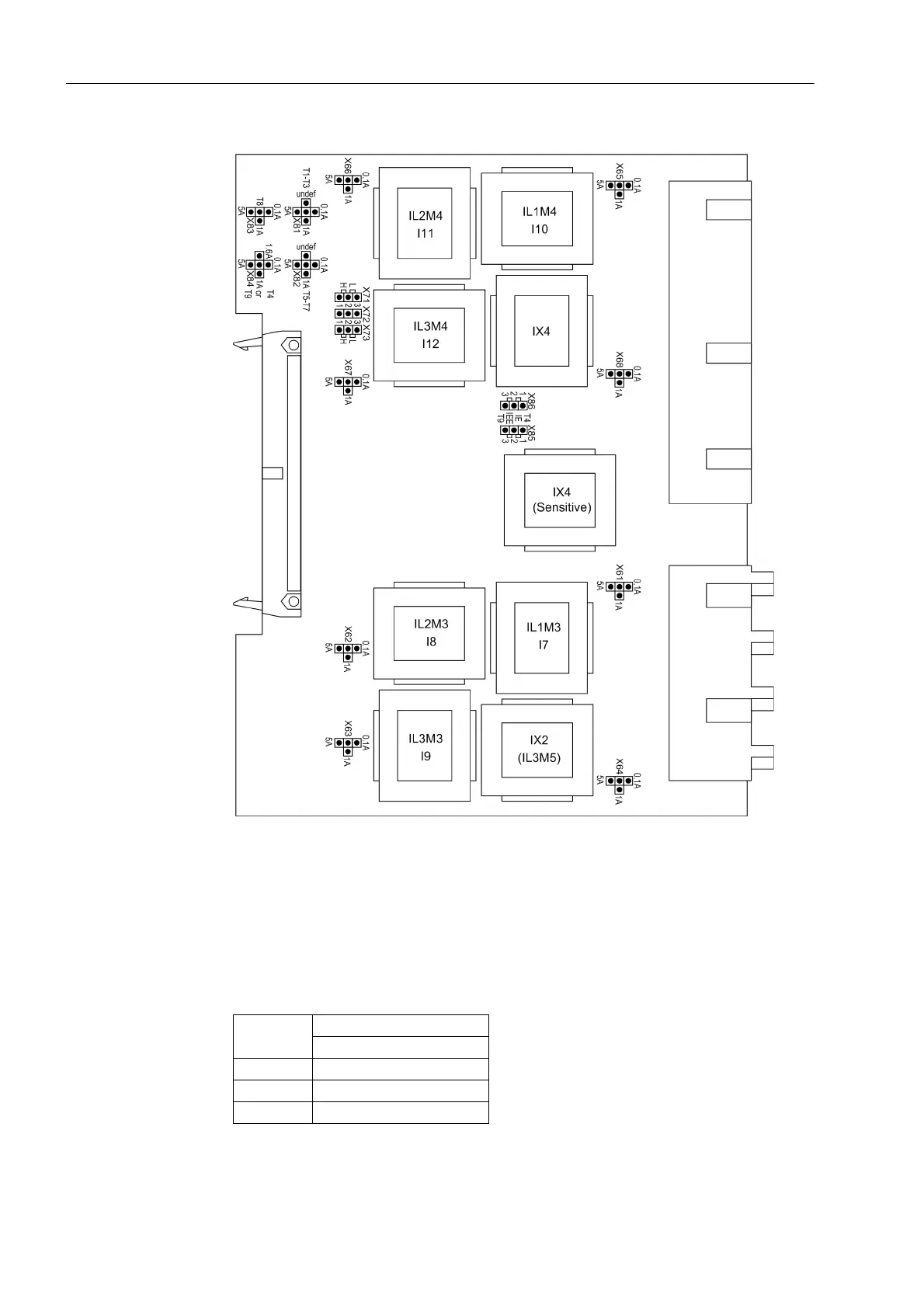

Figure 3-10 Input/output boards with representation of the jumpers required for checking the
settings
Jumpers X71 through X73 on the input/output board C-I/O-9 serve for setting the bus
address. Their position may not be changed. The following table shows the preset
jumper positions.
Table 3-17 Jumper position of module addresses of input/output boards C-I/O-9, slot 19
right in 7UT635
Jumper
7UT635
Slot 19 right side
X71 1-2 (H)
X72 1-2 (H)
X73 2-3 (L)
