A Appendix
536
7UT613/63x Manual
C53000-G1176-C160-2
A.3.2 Voltage Transformer Connection Examples

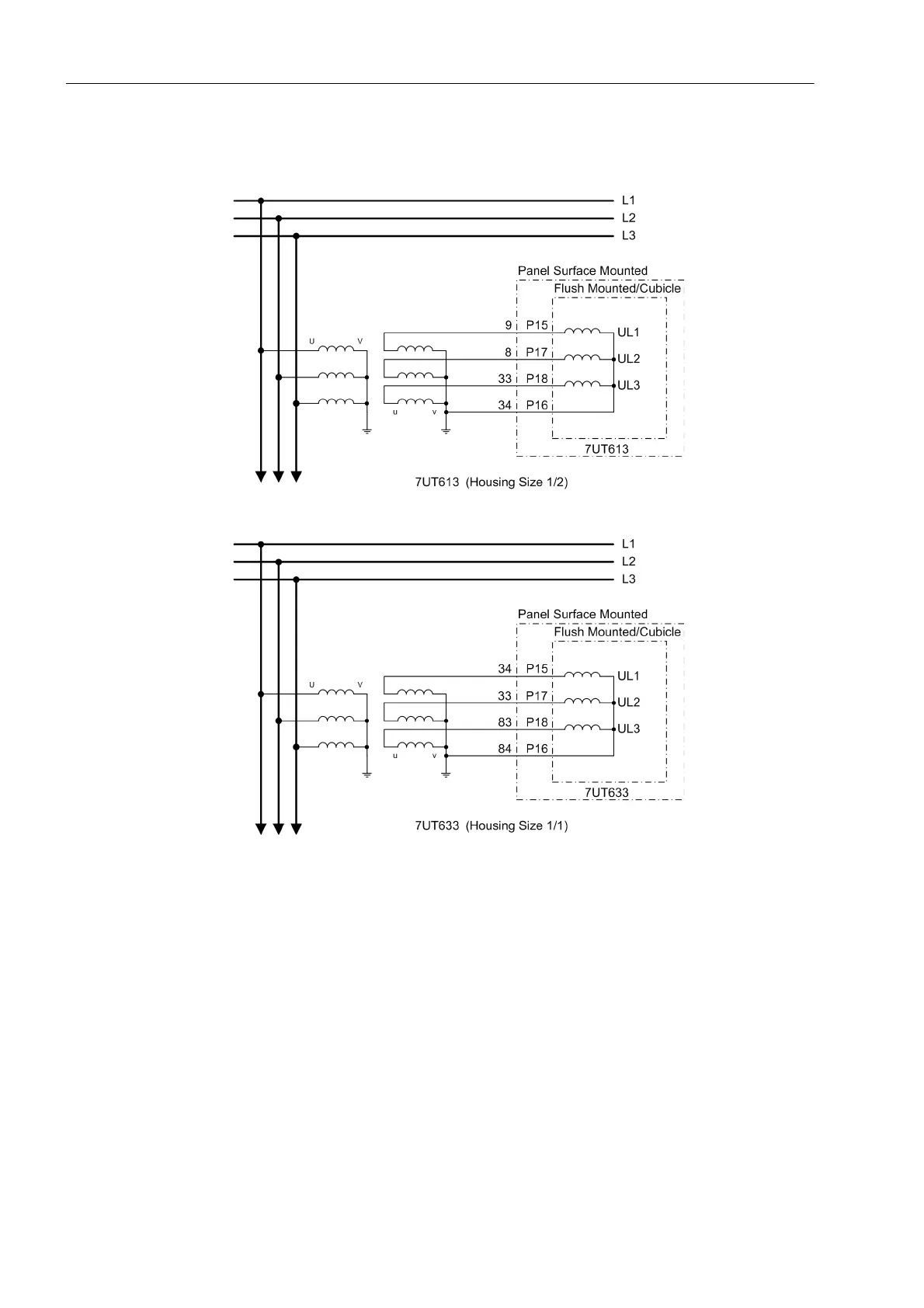

Figure A-27 Voltage connections to three wye-connected voltage transformers (only in
7UT613 and 7UT633)
