Siemens SIPROTEC 7UT635*-* N series - Panel Surface and Cabinet Mounting (Enclosure Size 1; 1 )

4.23 Dimensions
493
7UT613/63x Manual
C53000-G1176-C160-2
4.23.4 Panel Surface and Cabinet Mounting (Enclosure Size
1
/
1
)

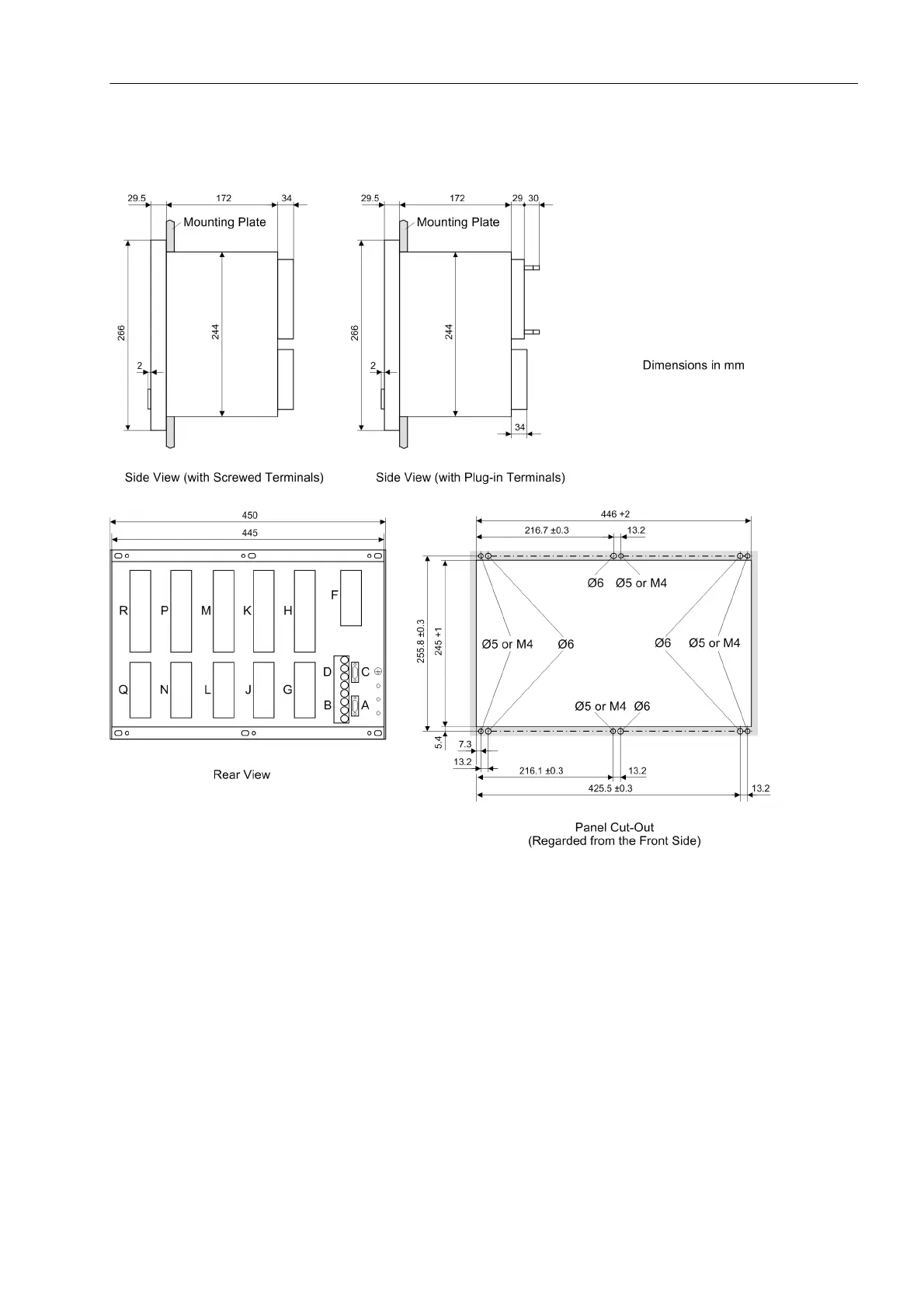

Figure 4-23 Dimensions of a 7UT6 (maximum functional scope) for panel flush mounting or cubicle mounting (housing
size
1
/
1
)
