4 Technical Data
450
7UT613/63x Manual
C53000-G1176-C160-2

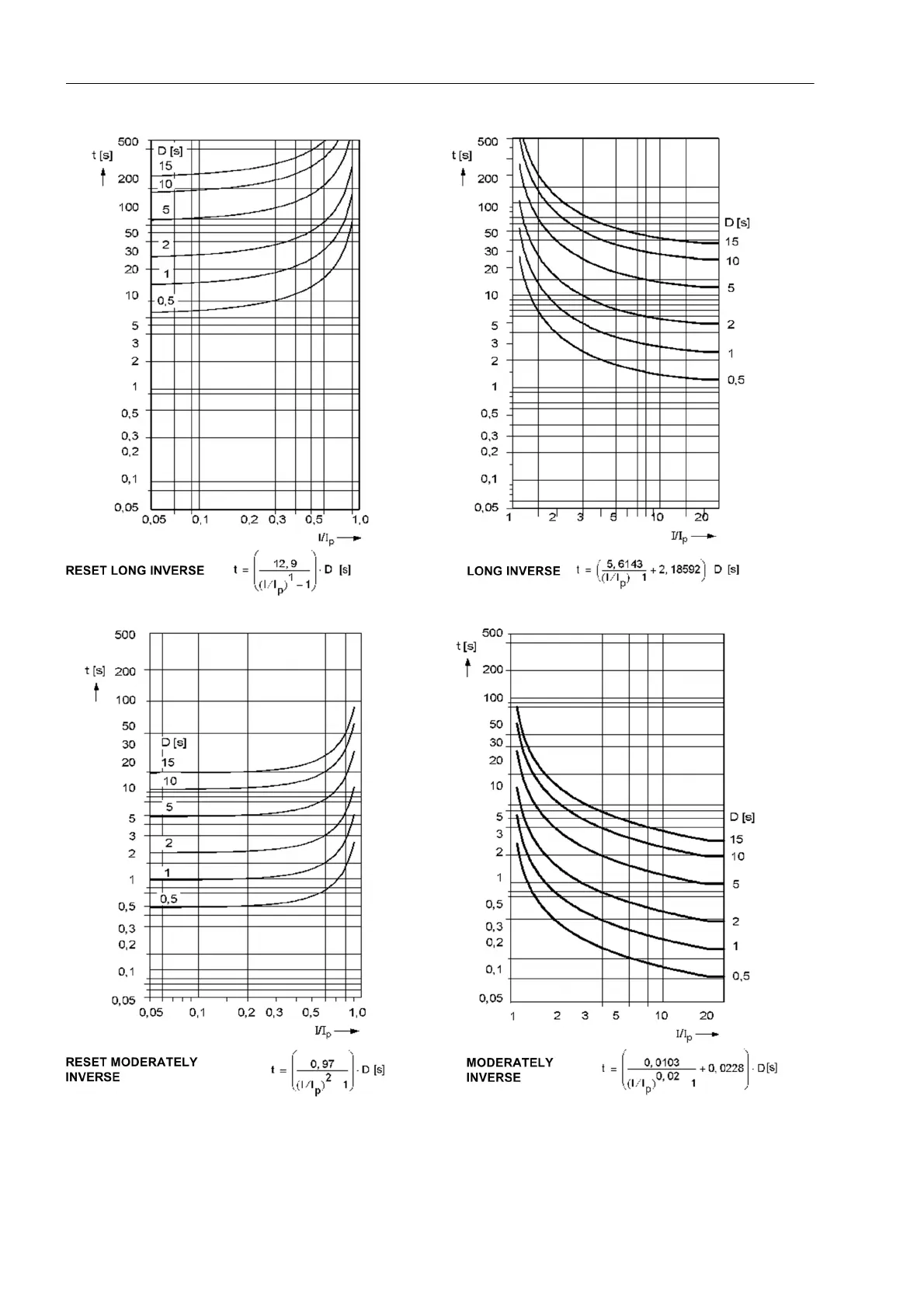

Figure 4-10 Dropout time and trip time curves of the inverse time overcurrent protection, acc. to ANSI/IEEE
