A.2 Terminal Assignments
513
7UT613/63x Manual
C53000-G1176-C160-2
7UT635*-* P/Q

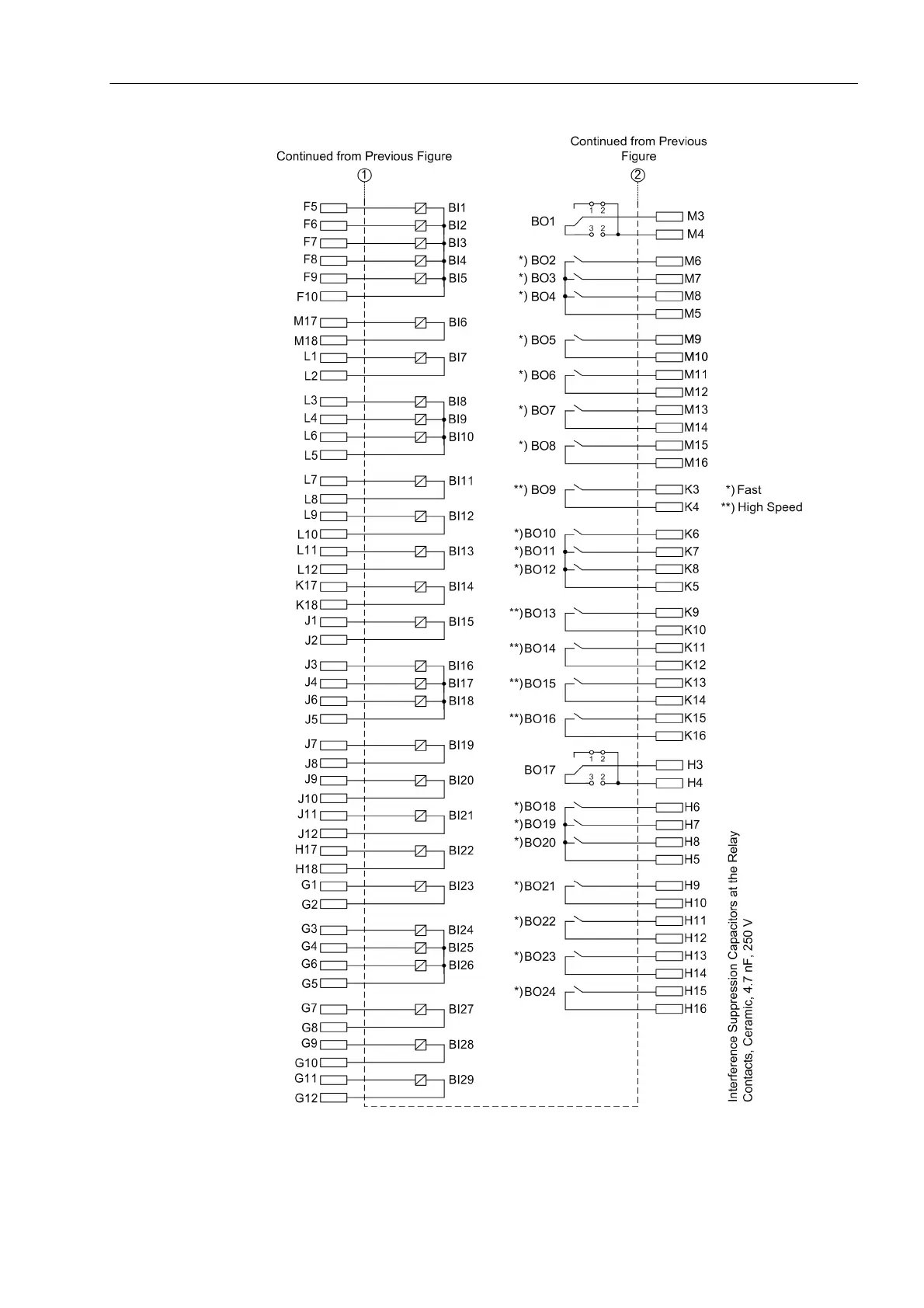

Figure A-5 General diagram 7UT635 (panel flush and cubicle mounting)
