A Appendix
530
7UT613/63x Manual
C53000-G1176-C160-2

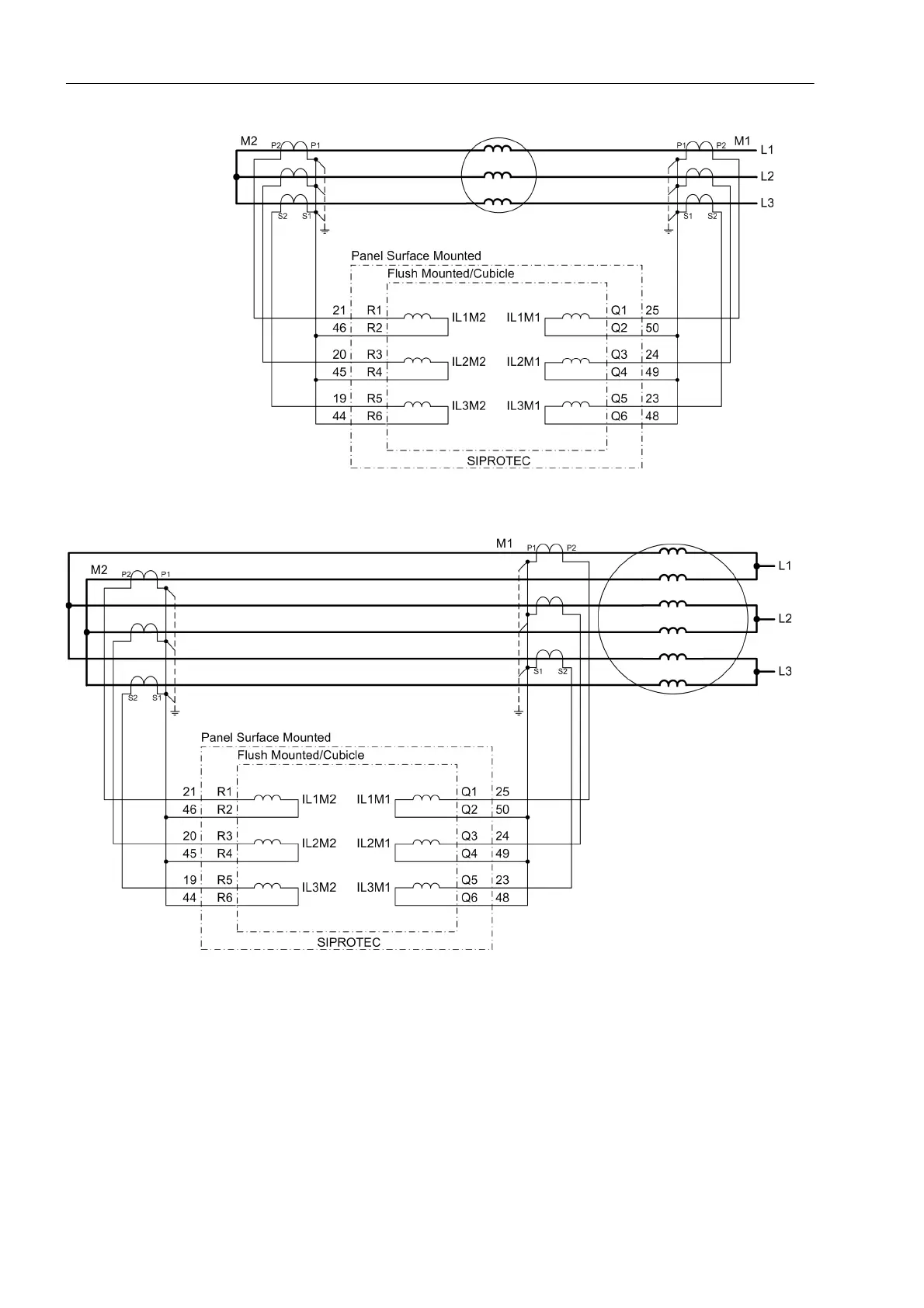

Figure A-20 Connection example 7UT613 for a generator or motor
Figure A-21 Connection example 7UT613 as transversal differential protection for a generator with two windings per
phase
