Dimension drawings (dimensions in mm)
C.4 Dimension drawings for 3RB30/3RB31 electronic overload relays
SIRIUS 3RU thermal overload relays / SIRIUS 3RB electronic overload relays
182 Manual, 09/2016, A5E03656507420A/RS-AB/003
C.4
Dimension drawings for 3RB30/3RB31 electronic overload relays

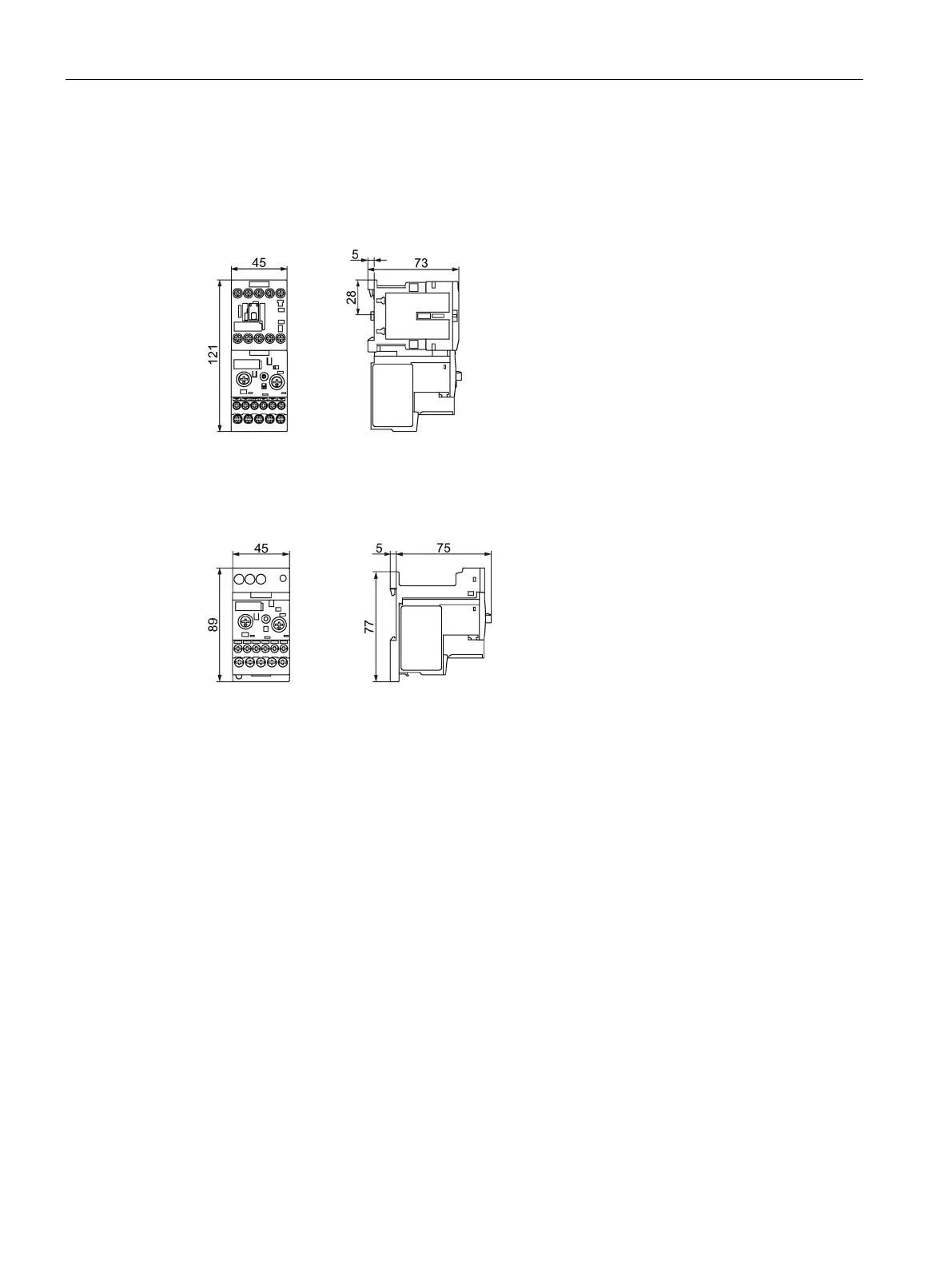

3RB3.1.-..B0 (S00, screw connection, contactor mounting)
Figure C-20 3RB3.1.-..B0
3RB3.1.-..B0 (S00, screw connection, mounting on stand-alone assembly support)
Figure C-21 3RB3.1.-..B0 and 3RU2916-3AA01
