Siemens SIRIUS 3TK2826- 1/2/4 Series - 3 TK2826 - device restart; Set configuration via DIP switches and delay time, via potentiometer; Device switches into protection mode; 3 TK2826 - RESET in event of fault

6 3ZX1012-0TK28-4EA1

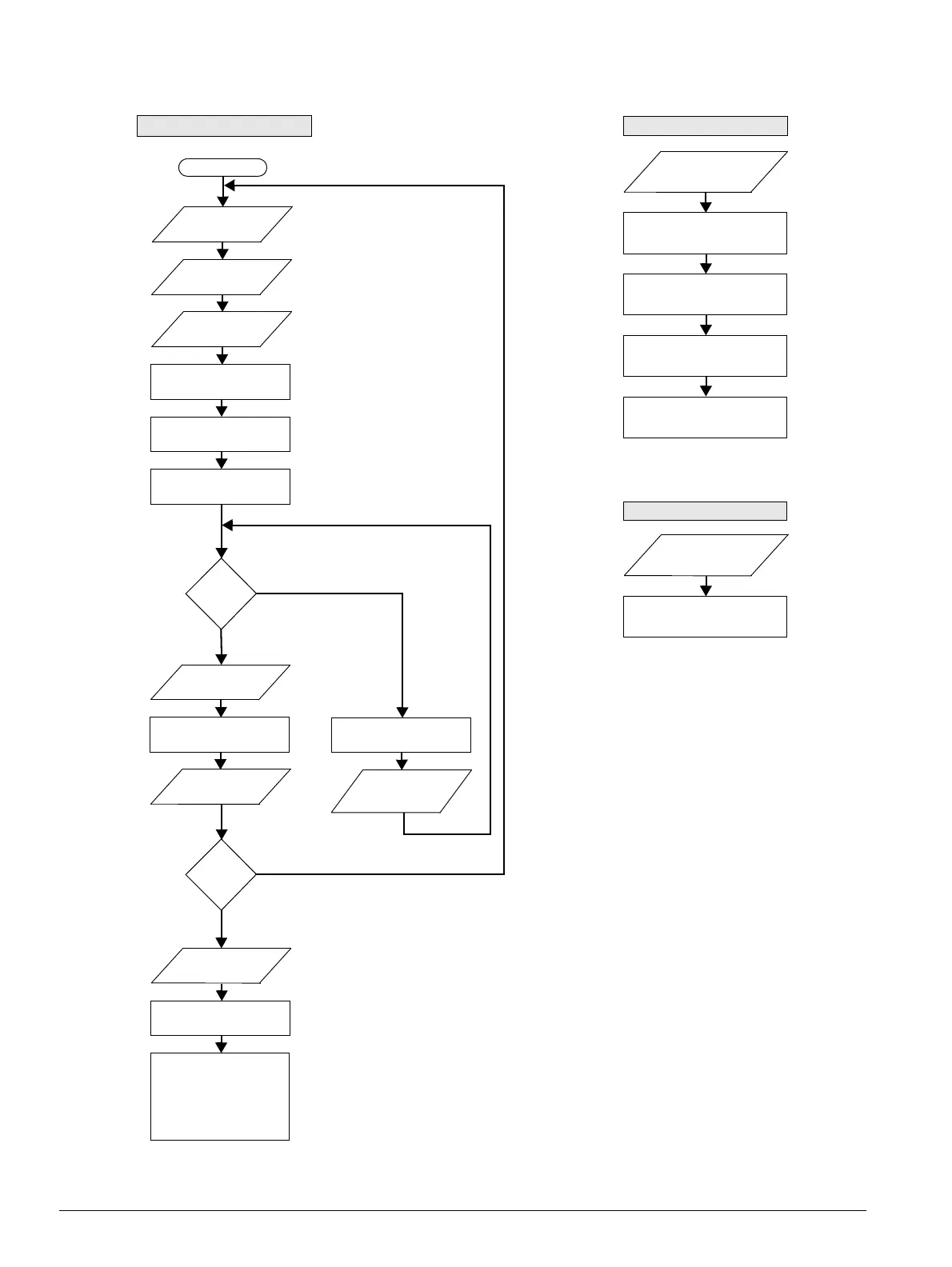

START
Switch off
supply voltage
Switch on
supply voltage
All configuration LEDs ON
for approx. 1
s (LED test)
All configuration LEDs OFF
for approx. 0.5
s
Configuration LEDs ON
according to set configuration
Configuration
OK?
Configuration
OK?
Confirmation:SET/RESET
Press button for approx. 2 s
Configuration LEDs flashing
according to set configuration
Check configuration
Configuration LEDs OFF
for approx. 0.5
s
Yes
Confirmation: SET/RESET
Press button for approx. 1 s
LEDs of the falsely set
Yes
DIP switches flicker
Set correct configuration
and press SET/RESET
for approx.
5s
No
No
Confirmation: SET/RESET
Press button briefly
All configuration LEDs ON
for approx. 1 s (LED-Test)
All configuration LEDs OFF
for approx. 0.5 s
Configuration LEDs ON according to
configuration for approx. 5 s
Configuration LEDs OFF
3TK2826 - display the configuration
Device restart
3TK2826 - RESET in event of fault
Confirmation: SET/RESET
Press button for
5s
3TK2826 - device restart
Set configuration via DIP
switches and delay time
via potentiometer
Configuration LEDs ON for
approx. 2 s acc. to configuration
Configuration and delay time
accepted.
Device switches into protection
mode
