Mounting position, mounting clearances
4.2 Other mounting positions
SITOP SEL1200-1400
Manual, 06.2019, A5E46496083-1-76
31
4.2.2 SEL1400 8 x 10 A 6EP4438-7EB00-3DX0

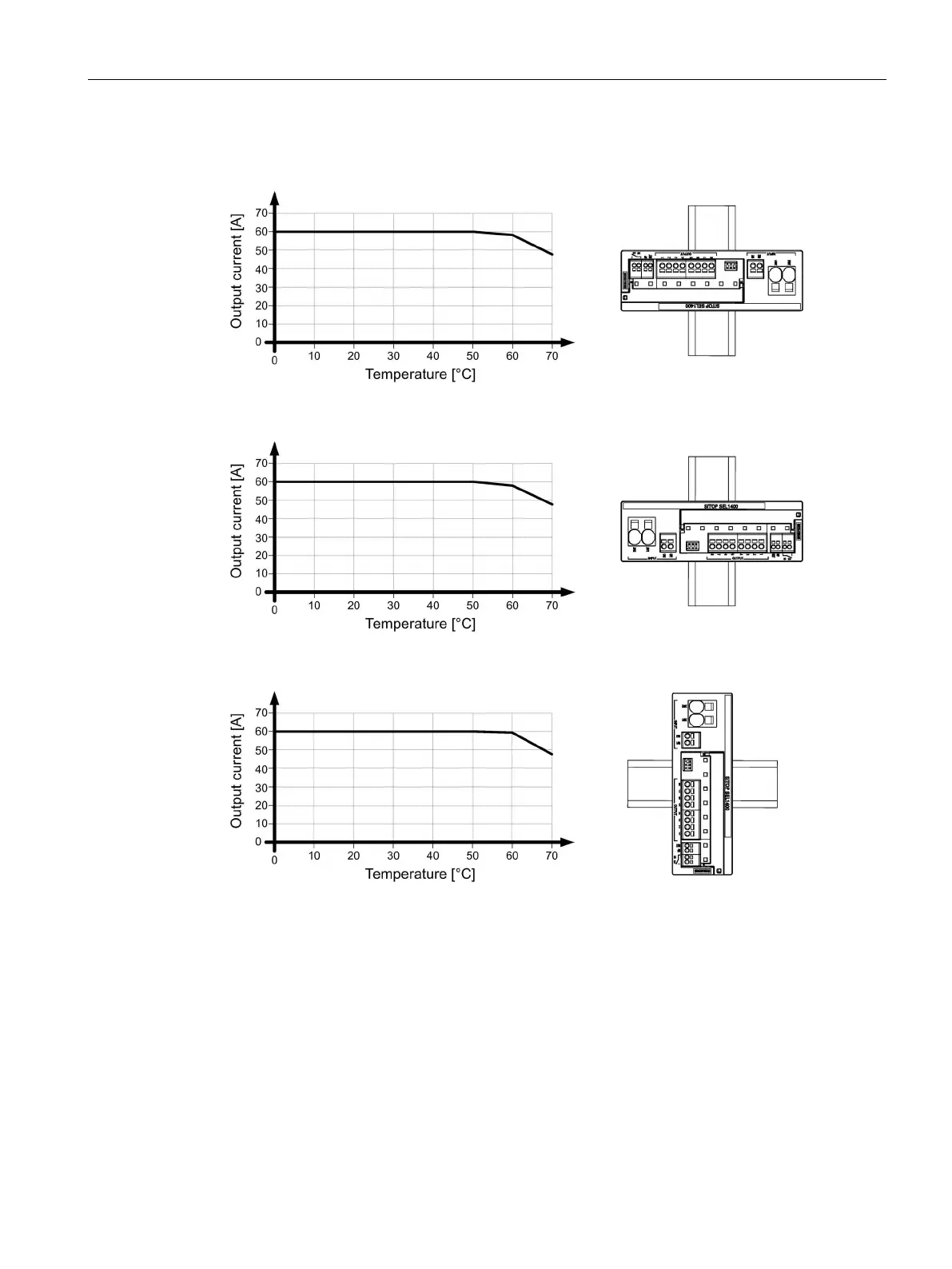

Figure 4-9 Mounting position 1
Figure 4-10 Mounting position 2
Figure 4-11 Mounting position 3
