Mounting
3
3.1 Mounting the capacitors

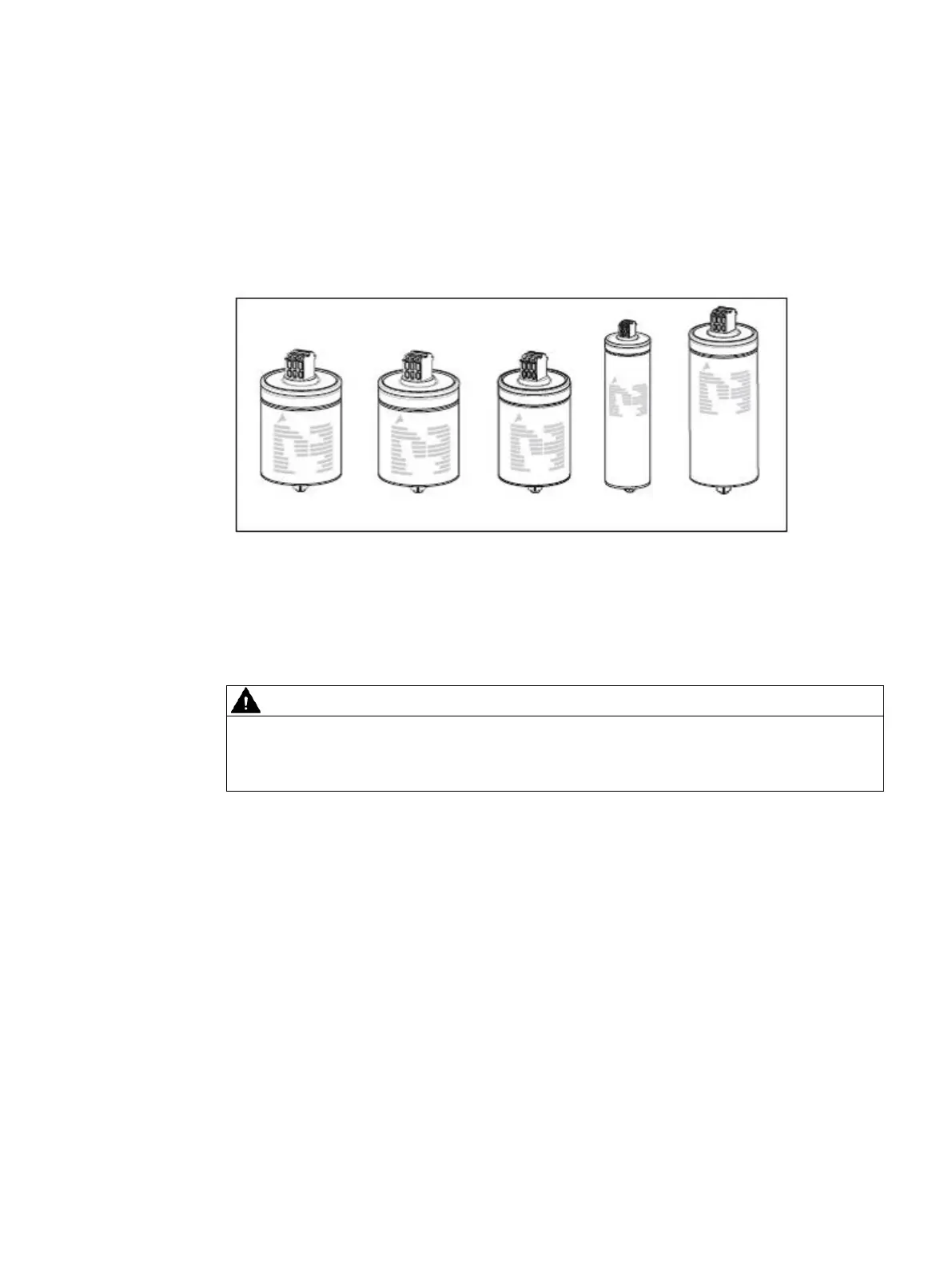

Figure 3-1 Capacitor overview
Mounting positions
Capacit
ors installed in a cabinet should be placed on the bottom to ensure the lowest stress
temperature possible.
WARNING
The use of damaged devices may result in death, serious injury, or property damage.
Do no
t install the capacitor in case of dents deeper than 0.5 mm. Disregarding can lead to
malfunctions or bursting.
Installation and maintenance instructions for Power Factor Correction (PFC) capacitors
Installation Manual, 05/2022, L1V30884033A 11

Siemens SIVACON Specifications

General

Type	Low-voltage switchgear and controlgear assembly
Modular design	Yes
Form of internal separation	Up to Form 4b
Standards	IEC 61439-1/-2
Installation type	Fixed or withdrawable
