Configuring intrusion control units
Configuring a CS6 Guarto
26
Building Technologies A6V10359489_a_en
CPS Fire Safety 30.09.2016
3. In the menu that appears, select the appropriate icon to add a new intrusion
system node.
a A new node is added to the project structure.
Note:
You can customise the default name of the new node typing in a new name
in the Description field of the Node tab, but do not customise it now since it will be
renamed during the metafile import.

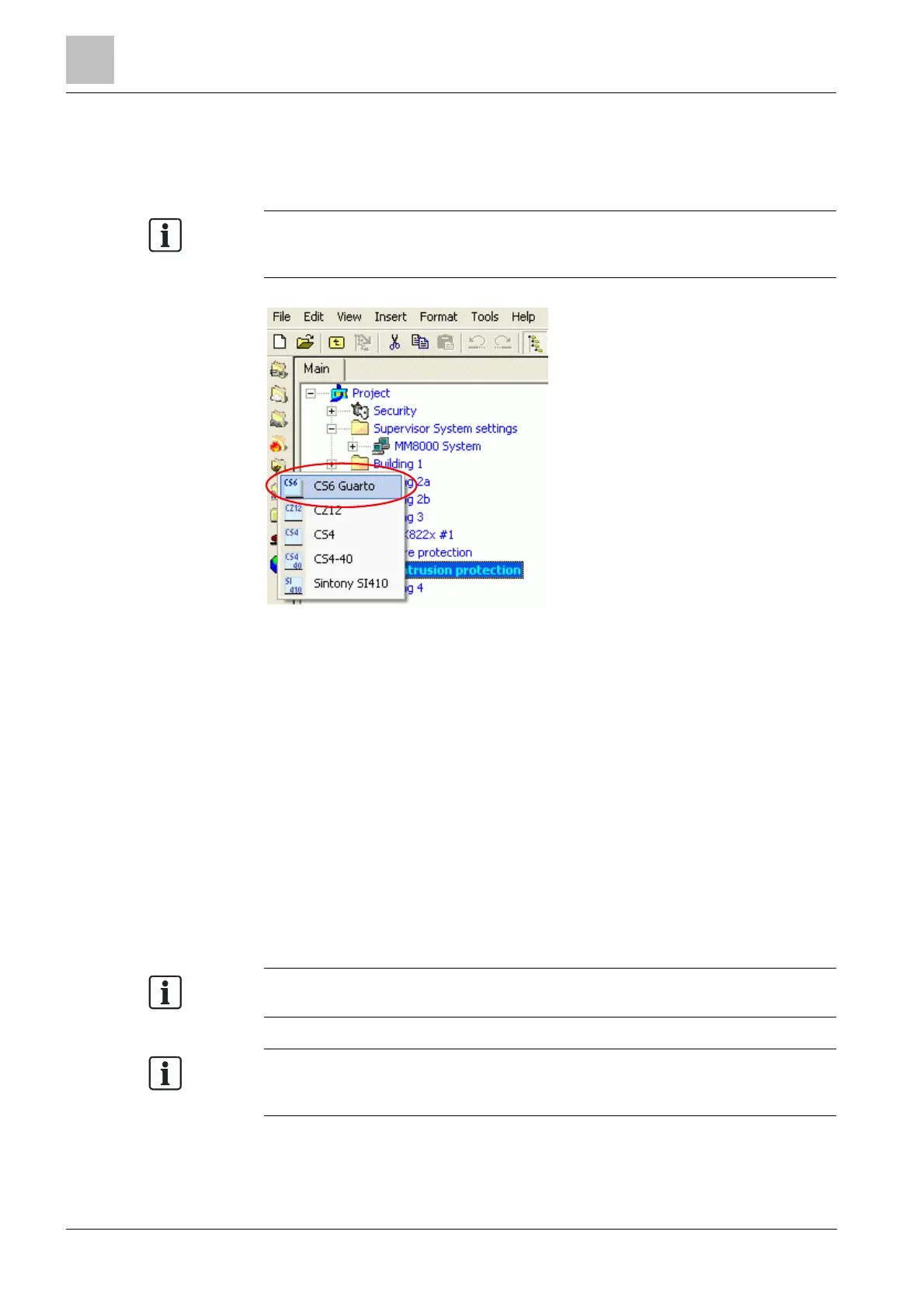

Adding a new CS6 node
Importing the CS6 metafile
1. Select the CS6 node.
2. Select Tools > Import in the Composer menu to start CS6 import.
a The software presents a browsing window to search for the file to import;
the following CNAP profile files are expected:
- DCD001_CLASS.TXT
- DCD001_DATA.TXT
- DCD001_INST.TXT
- DCD001_LINK.TXT
- DCD001_TEXT.TXT.
3. Select one of the import files from the file selection window.
a In a few moments, the CS6 structure is imported, and the node is represented
in the Composer tree.
Note:
The node is renamed to match the metafile name. To customise the name,
click the node text, type in a new name, and press ENTER.
Note:
After
the import procedure, by selecting the
Import
tab, a report page
displays. It contains the detailed logs of the latest import procedure, including any
added or removed objects.
Adding the communication node
1. Select the NK822x or the NK823x node.
