Configuring intrusion control units
Configuring a CS6 Guarto
28
Building Technologies A6V10359489_a_en
CPS Fire Safety 30.09.2016
Linking CS6 to NK823x
Setting CerCom/LON bus addresses (NK822x only)

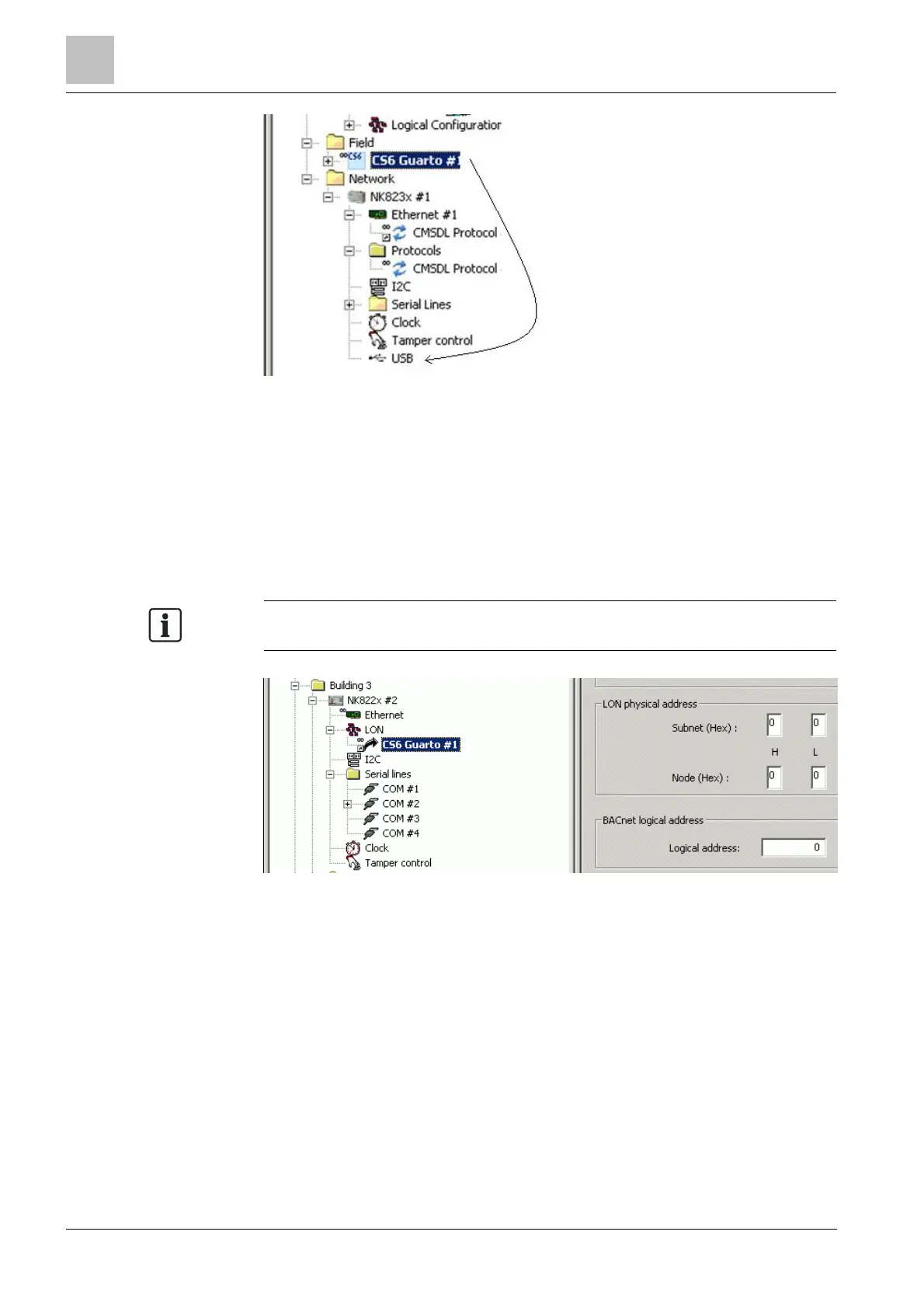

1. Select the CS6 link in the LON node.
2. Set the CerCom/Lon addresses associated to the CS6 unit:
– LON Subnet (high and low hex digit)
– LON Node in the Subnet (high and low hex digit)
– Logical address (integer number)
Note:
These values should match what has been set on the CS6 control unit
configuration.
Setting CerCom/LON addresses for NK822x
Setting CerCom/LON bus addresses (NK823x only)
1. Select the CS6 link in the USB node.
2. In the NK823x Setting section, configure the LON addresses (Subnet, Node)
and the Logical Address with values that are unique in the CS6 LON network.
3. In the CS6 Setting section, configure:
– the LON addresses (Subnet, Node) associated to the CS6 unit.
– the Logical Address with a value that is unique in the CS6 LON network.
