Siemens SQM41 Series Technical Instructions

Technical Instructions SQM40/41…Actuators
Document No. 7817US
October 6, 2010
12

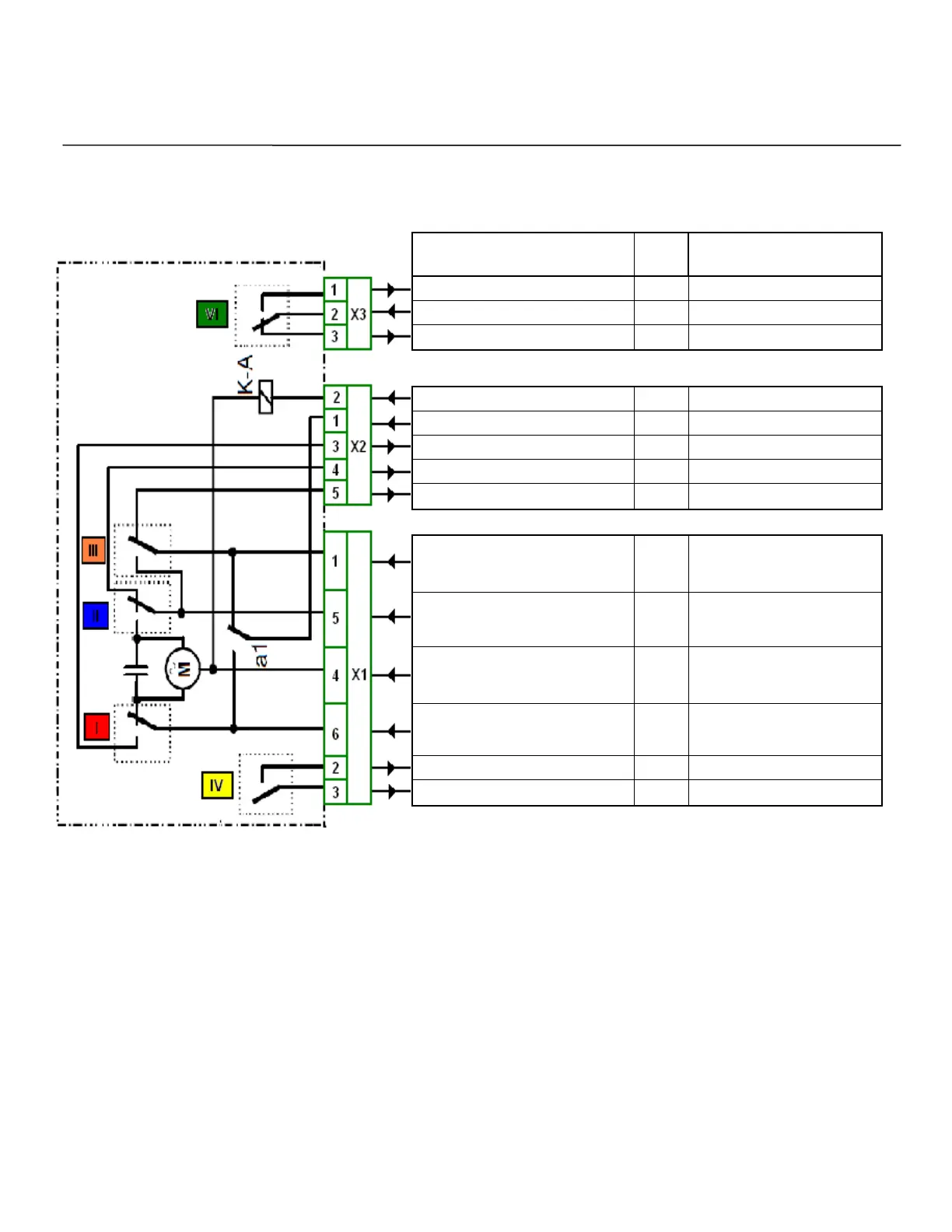

SQM4x.x7xxxSC 2-position version with 2 end switches and 3 auxiliary switches
Main voltage terminals
I/O Design
AUX (VI) NO Output AC 120 V / AC 230 V max. 1 A
AUX (VI) Input AC 120 V / AC 230 V
AUX (VI) NC Output AC 120 V / AC 230 V max. 1 A
Opening/closing (changeover switch) Input AC 120 V / AC 230 V
Mains voltage Input AC 120 V / AC 230 V
High position reached Output AC 120 V / AC 230 V max. 1 A
Low position reached Output AC 120 V / AC 230 V max. 1 A
Ignition position reached Output AC 120 V / AC 230 V max. 1 A
Drive to ignition (switch III - orange)
(if set higher than switch two)
Input AC 120 V / AC 230 V
Drive to low (switch II - blue) Input AC 120 V / AC 230 V
Neutral Input AC 120 V / AC 230 V
Drive to high (switch I - red) Input AC 120 V / AC 230 V
AUX (IV) NO Output AC 120 V / AC 230 V max. 1 A
AUX (IV) Input AC 120 V / AC 230 V
