Technical Instructions SQM40/41…Actuators
Document No. 7817US
October 6, 2010
14
Dimensions, Continued The first dimension shown is in inches, millimeters are shown in parentheses.

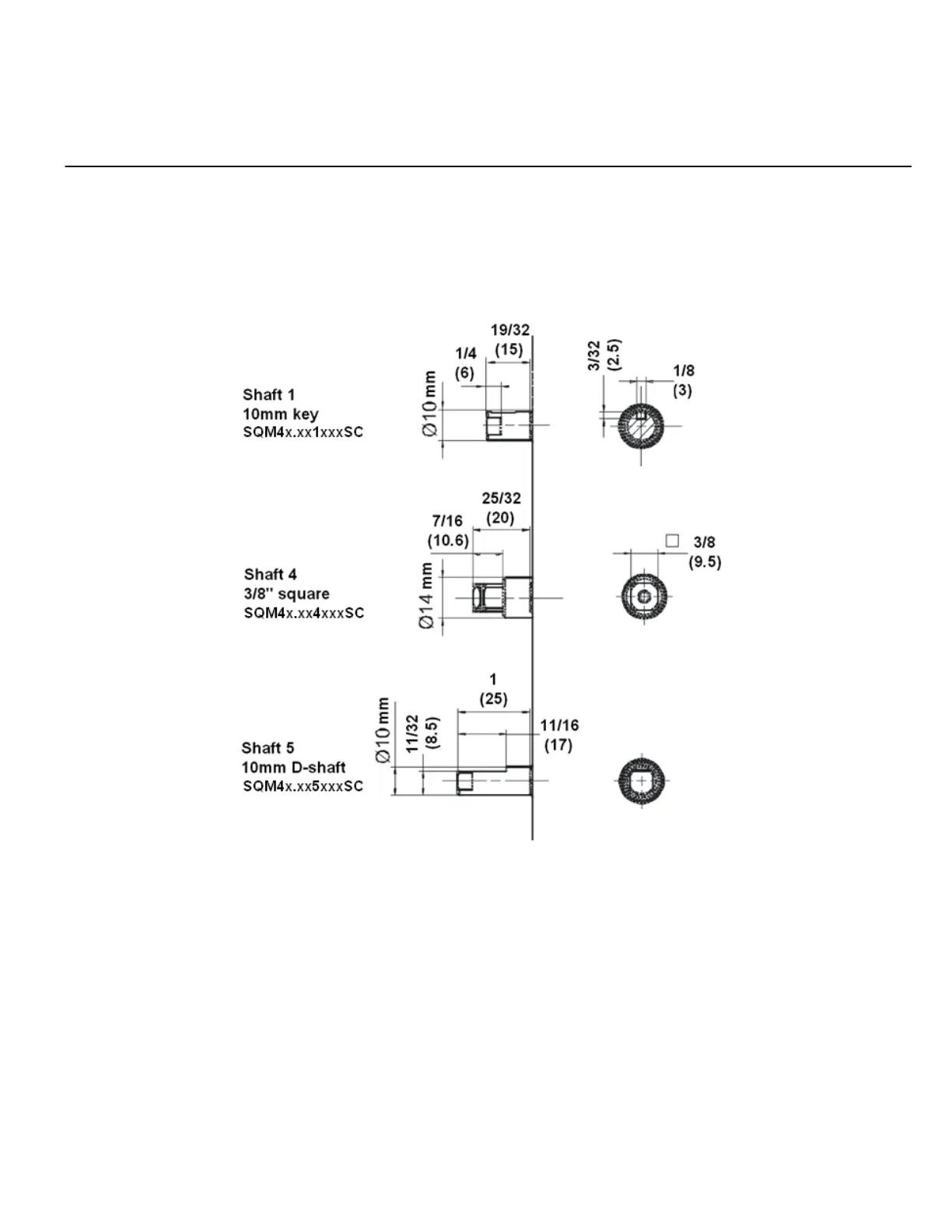

Shaft Dimensions
