TC65 Hardware Interface Description
Strictly confidential / Draft
s
TC65_HD_V00.521 Page 83 of 99 24.05.2005
All dimensions in mm

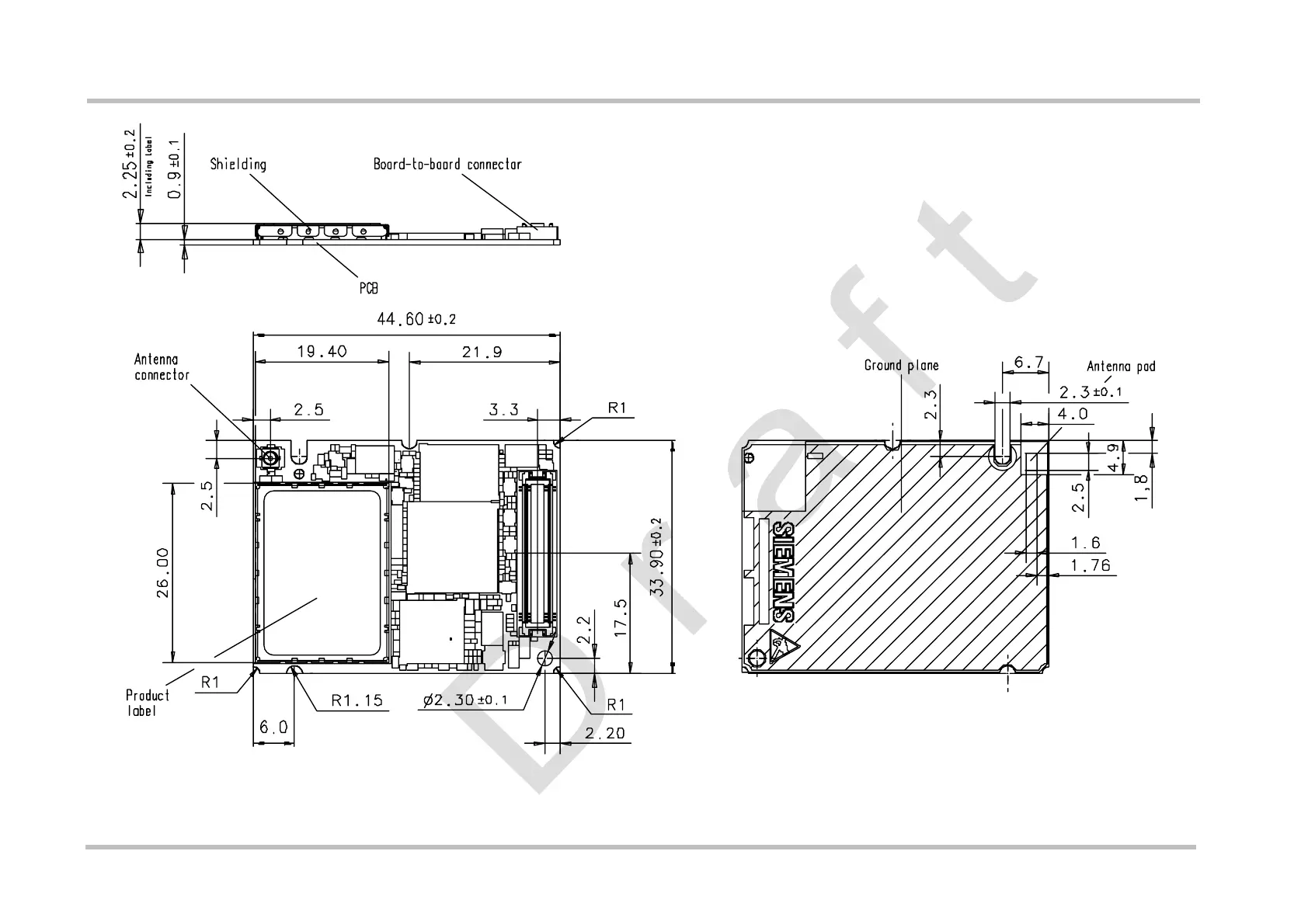

Figure 35: Dimensions of TC65
