TOs of S7-1500(T)
Entry ID: 109743134, V1.0, 05/2017
Siemens AG 2017 All rights reserved
8 Example Application
8.1 Configuration
The example application provided is structured in a way that the use of many
different technology objects can be shown within a simulated production process.

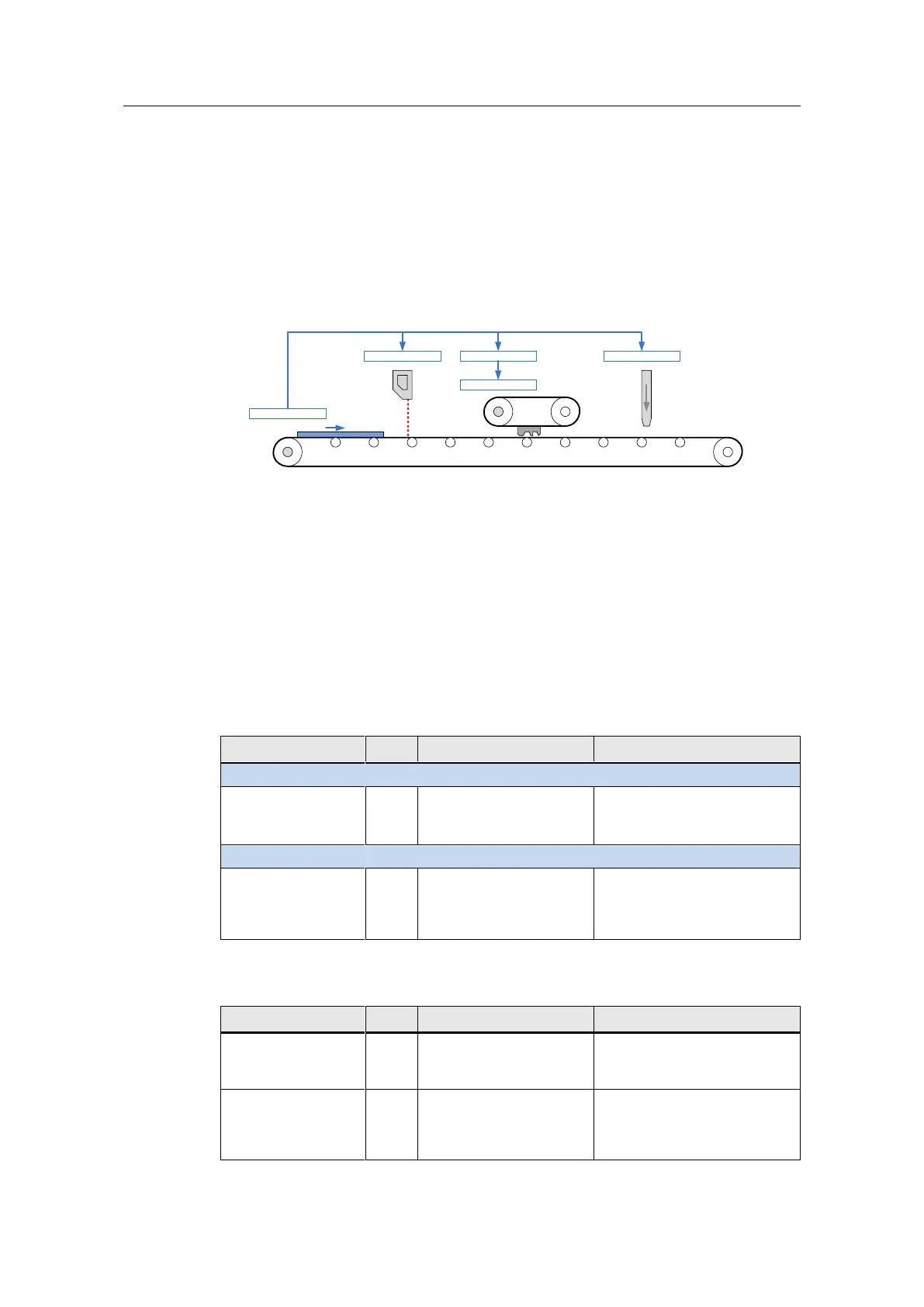

Figure 8-1 Example application to display the technology objects
TO_PositioningAxis
TO_MeasuringInput
TO_SynchronousAxis
TO_Cam TO_OutputCam
8.1.1 Components used
This documentation and the example project are valid for
TIA Portal or STEP 7 as of V14 update 2 and higher
SIMATIC S7-1500 as of firmware version V2.0
This application example has been created with the following hardware and
software components:
Hardware components
Table 8-1
CPU 1515T-2 PN,
750kB PROG., 3MB DATA
Firmware version: V2.0.3
SINAMICS
S7-1500 demo case
with KBEI
In the TIA Portal, the HSP
0185 "SINAMICS V90 PN”
hardware support package
has to be installed.
Software components
Table 8-2
Always included in the
individual components as an
engineering framework.
STEP 7
Professional V14
Update 2
SIMATIC STEP 7 PROF. V14
FLOATING LICENSE;
engineering software in TIA
Portal.
