1.3.3 Technology objects for counting and measuring

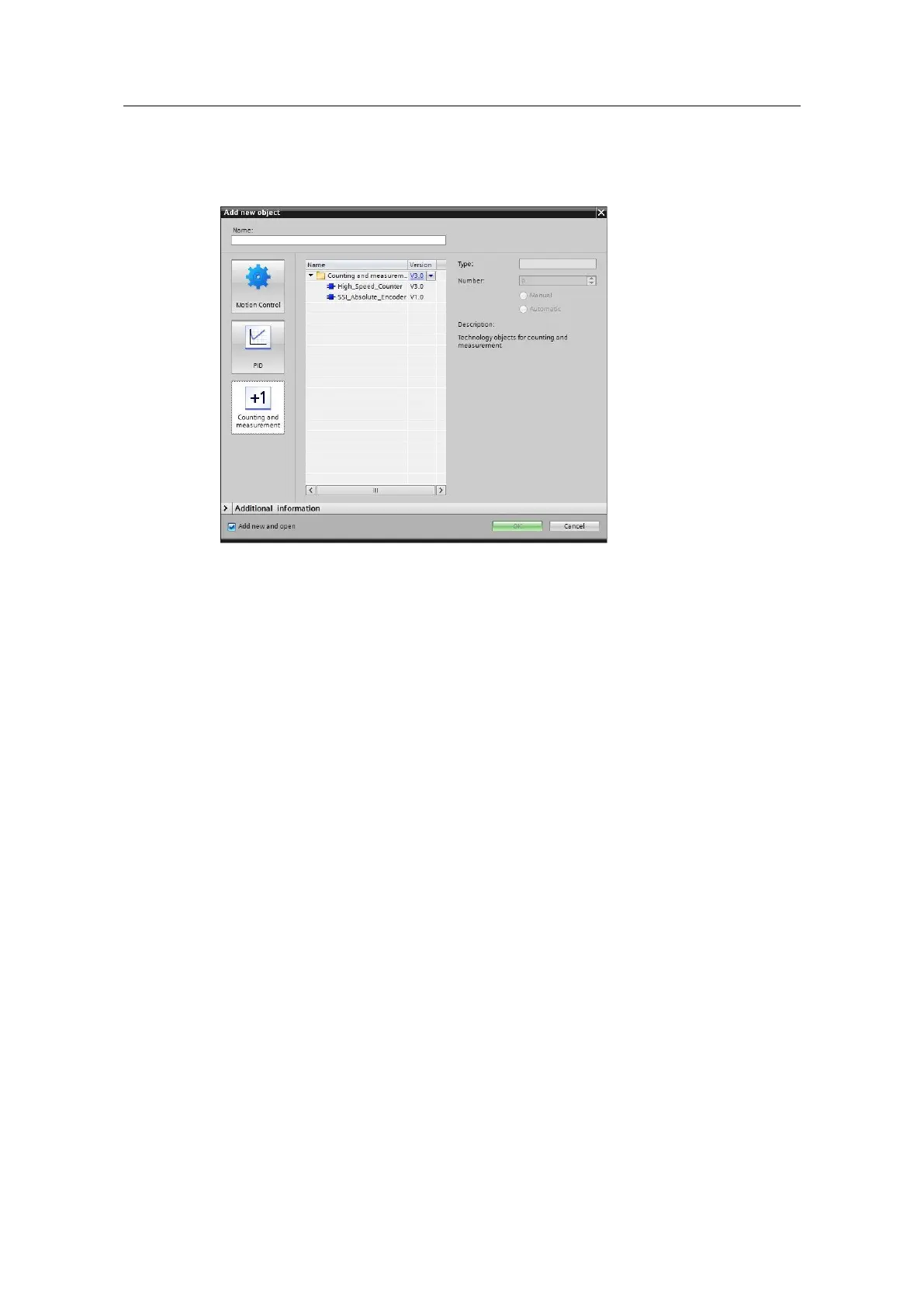

Figure 1-3 Technology objects of the S7-1500 – counting and measuring
 High-speed counter (High_Speed_Counter)
The High_Speed_Counter technology object enables the easy configuration of
counter modules for the operation with incremental and pulse encoders and
their use in the user program.
 Measuring/position decoding (SSI_Absolute_Encoder)
The SSI_Absolute_Encoder technology object enables the easy configuration
of position decoding modules for the operation with SSI absolute value
encoders and their use in the user program.
