Siemens TUTORbit POL895 - Heating Zones, DHW, DHW Return, 2 Tanks

46
TUTORBIT
COSMOGAS

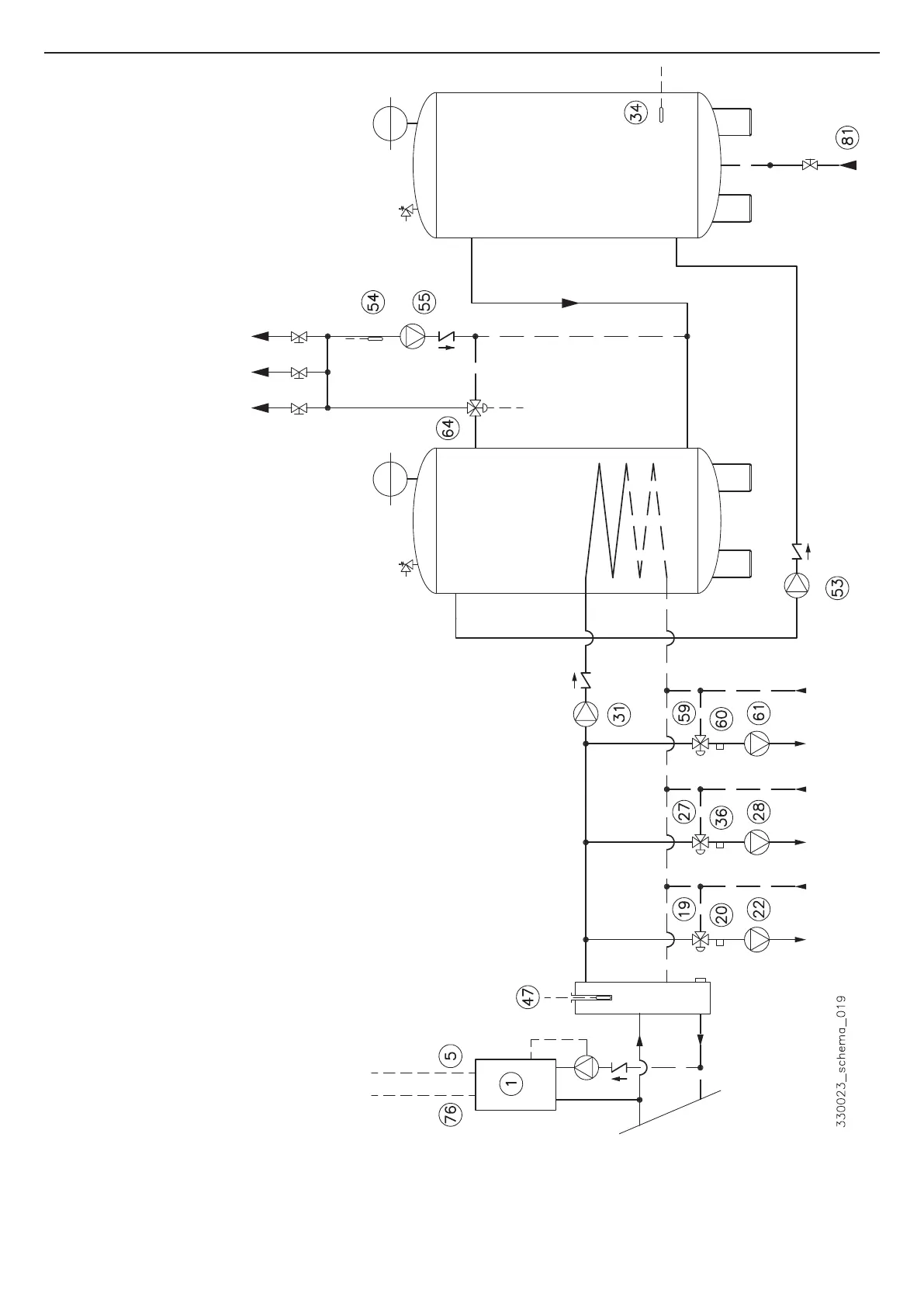

4.21.9 - 3 heating zones, DHW, DHW return, 2 tanks Figure 4-29 - Hydraulic connection Settings: Conguration > System > Number of Modules 1 Module 1 Heating Outdoor sensor Yes DHW Yes DHW return sensor No DHW Mode Sensor Number of Zones 3 Antilegionella Yes Shu󰀪e type pump Tank Load Solar No Modbus enable No PHeat pump No
Conguration > Zones > 3 way valve > 3 way valve 1> Zone type Mix Conguration > Zones > 3 way valve > 3 way valve 2> Zone type Mix Conguration > Zones > 3 way valve > 3 way valve 3> Zone type Mix NOTE: The shu󰀪e pump (53) must be set in “Tank Load”.
4 - INSTALLATION
