Siemens TUTORbit POL895 - Heating Circuit with Heat Pump Integration, DHW, DHW from Pdc, DHW Return, Solar, 2 Tanks ( 1 Solar and 1 Boiler) and Solar Transfer Function

To Next Page

To Previous Page

TUTORBIT

COSMOGAS

4 - INSTALLATION

4.21.12 - 1 heating circuit with heat pump integration, DHW, DHW from Pdc, DHW return, solar, 2 tanks ( 1 solar and 1

boiler) and solar transfer function

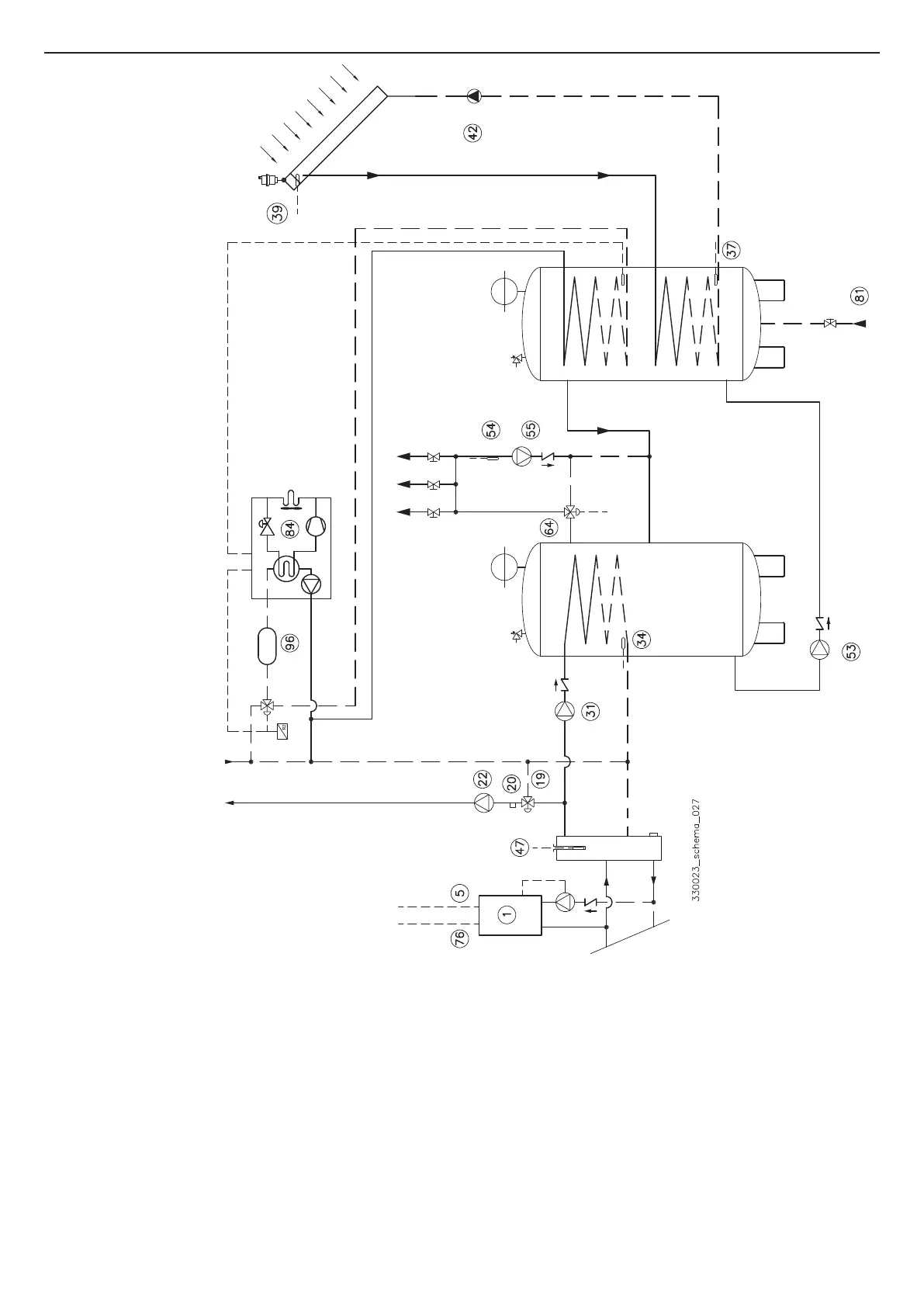

Figure 4-35 - Hydraulic connection

Settings:

Conguration > System >

Number of Modules 1

Module 1 Heating

Outdoor sensor Yes

DHW Yes

DHW return sensor Yes

DHW Mode Sensor

Unit of measure °C

Number of Zones 1

Antilegionella Yes

Shu󰀪e type pump Antilegionella

Solar Yes

Solar Atistagnation Yes

Solar Antifrost Yes

Modbus enable No

Heat pump Yes

Conguration > Zones > 3 way valve > 3 way valve 1> Zone type Mix

NOTE: The mixing pump (53) must be set as Anti-legionella.

NOTE: The mixing pump also acts as solar transfer by means of relay R1 and as transfer Pdc by means of relay R2.

NOTE: DHW through the Pdc must be managed independently by the same and not through Tutorbit.
