Mounting / Installing / Connecting
4.5 Wiring position
VersiCharge AC Wallbox IEC
Operating Instructions, 03/2021, A5E50366109-AA
29
4.5 Wiring position

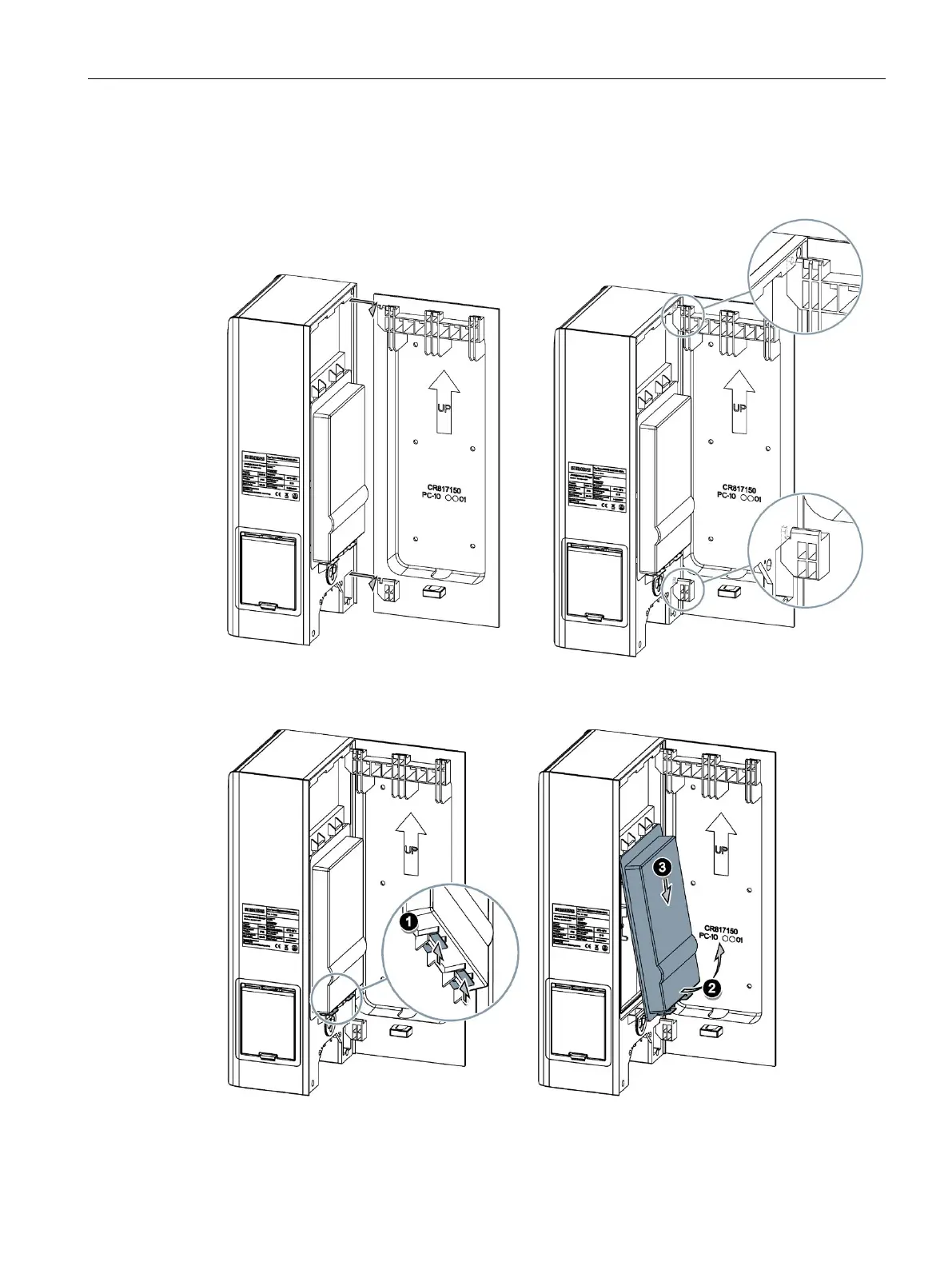

Wiring position: Hook the charger into the upper and lower notch of the wall bracket.
Remove protective cover: Remove the protective cover of the Wallbox by pressing the two
clips upwards to obtain access to the electronics.
