Siemens VRD Series User Manual

Technical Instructions VRD4 Series Double Valves
Document Number CC1N7649us
September 08, 2016
Page 10 Siemens AG Building Technologies Division

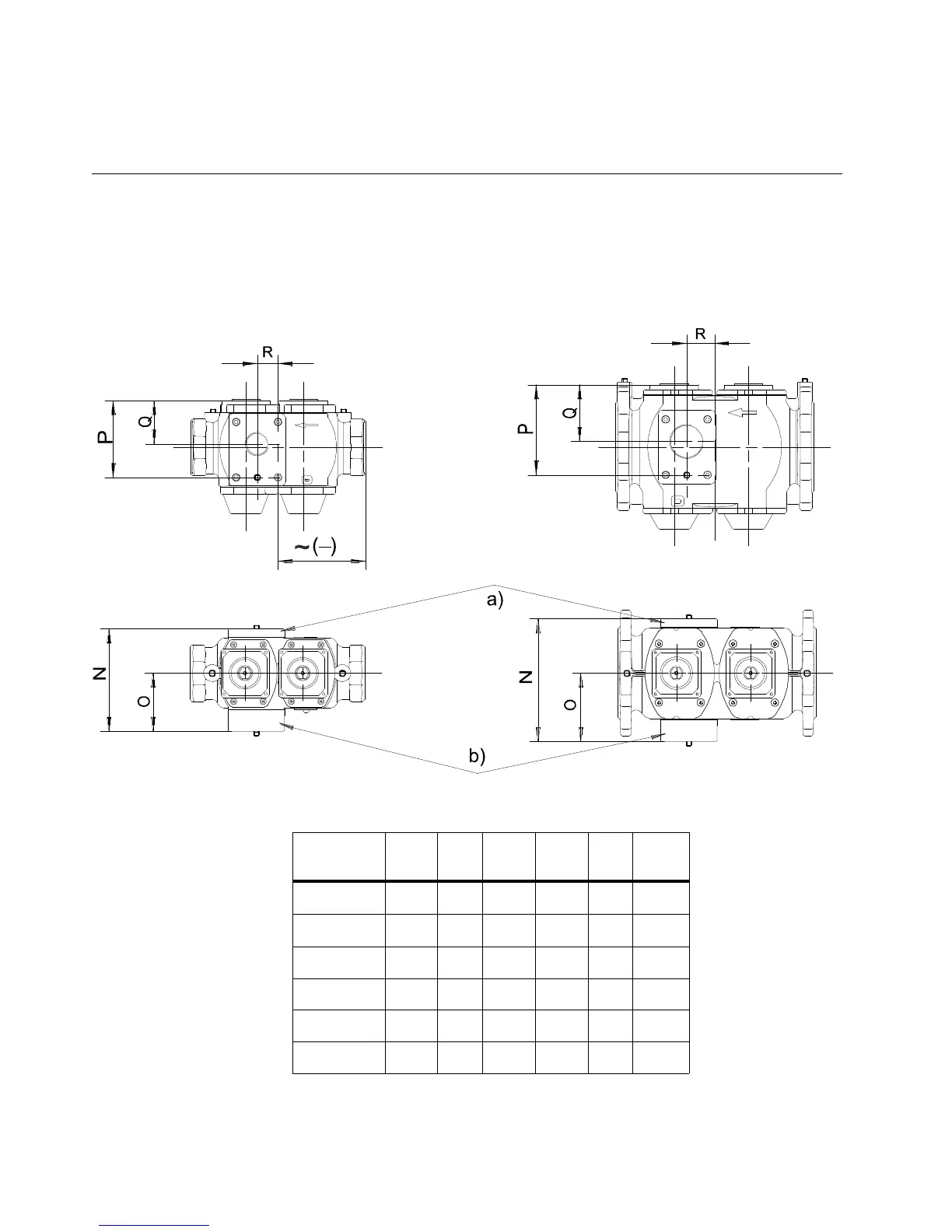

Dimensions, continued
Dimensions in Inches (mm)
VRD40.xxxUx valve with vent connection plate
Option: a) Base plate
b) Vent connection plate AGA40.xxxxU (optional) to be ordered separately
a) and b) are interchangeable
2
A
7631z49us/0815
Table 6. VRD40.xxxUx dimensions in inches (mm) with mounted vent connecting plate.
Valve model N
inch
(mm)
O
inch
(mm)
P
inch
(mm)
Q
inch
(mm)
R
inch
(mm)
Weight
pounds
(kg)
VRD40.040U 6.38
(162)
3.66
(93)
5.08
(129)
2.76
(70)
0.55
(14)
13.7
(6.2)
VRD40.050U 6.38
(162)
3.66
(93)
5.08
(129)
2.76
(70)
0.55
(14)
13.7
(6.2)
VRD40.065UF 7.13
(181)
4.06
(103)
5.34
(135.6)
3.02
(76.59)
1.46
(37)
18.5
(8.4)
VRD40.080UF 7.28
(185)
4.13
(105)
5.49
(139.5)
3.17
(80.5)
0.79
(20)
21
(9.6)
VRD40.100UF 8.54
(210)
4.76
(121)
6.26
(159)
3.94
(100)
1.95
(49.5)
29
(13)
VRD40.150UF 11.30
(287)
6.14
(156)
7.80
(198)
5.47
(139)
2.28
(58)
53
(24)
